Type: Backlit colour TFT LCD

Colours: 65,536

Resolution: 640 × 480 pixels (VGA)

Size: 10.4 inches

Touch panel: Analogue

Touch sensitive zone: 1024 × 1024

Backlight lifespan: 50,000 hours

Brightness: 8 levels (adjustable via touch panel)

Contrast: 8 levels (adjustable via touch panel)

Configuration software: Vijeo Designer

Operating system: Harmony

Processor: CPU RISC, 266 MHz

Rated supply voltage: 24 VDC

Supply type: External source

Supply voltage limits: 19.2–28.8 V

Inrush current: 30 A

Power consumption: 30 W

Dynamic function keys: 18 with LED

Static function keys: 12 with LED and labels

Service keys: 8

Alphanumeric keys: 12

Cut-out dimensions: 285 ± 0.4 × 309 ± 0.4 mm

Operating temperature: 32–122 °F (0–50 °C)

Storage temperature: -4–140 °F (-20–60 °C)

Relative humidity: 10–90 % (non-condensing)

Operating altitude: < 6,561.68 ft (2000 m)

Resistance to electrostatic discharge: 4 kV IEC 61000-4-2, Level 3

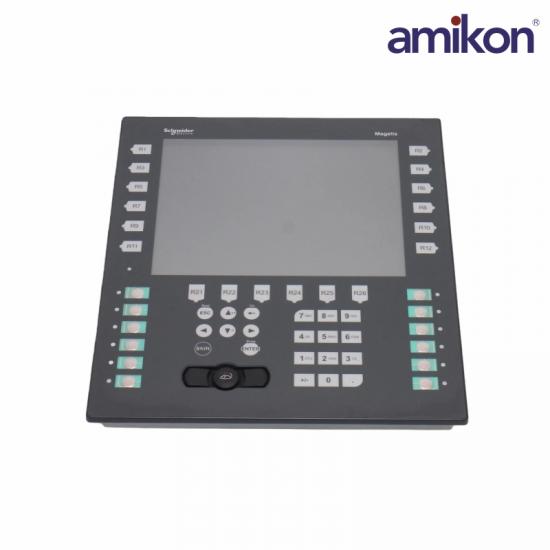

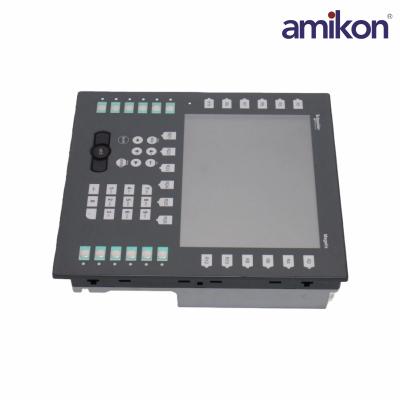

The Schneider Electric XBTGK5330 is an advanced Human-Machine Interface (HMI) from the Magelis XBTGK range, designed to meet the diverse needs of industrial systems. Combining a 10.4-inch touchscreen panel with a built-in keyboard, this HMI delivers an intuitive and highly functional user experience. Its robust design, wide-ranging compatibility, and advanced features make it ideal for controlling and monitoring complex industrial processes.

The XBTGK5330 features a vibrant 10.4-inch backlit color TFT LCD that supports 65,536 colors, ensuring crisp and clear visuals. With a resolution of 640 x 480 pixels (VGA), operators can easily monitor and manage intricate system data. The touchscreen panel offers a touch-sensitive zone of 1024 x 1024 and utilizes an analog touch interface, allowing for precise interaction. Users can adjust the display's brightness and contrast through the touch panel, with eight levels of customization for both.
