➱XSAV11373 Inductive proximity sensors

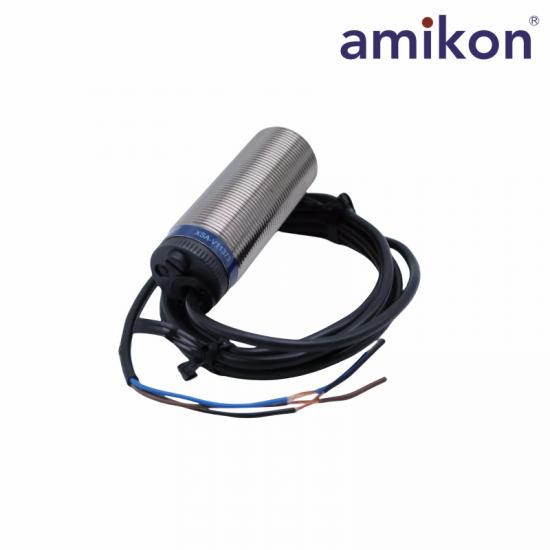

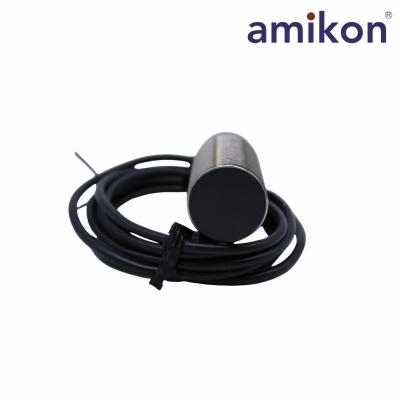

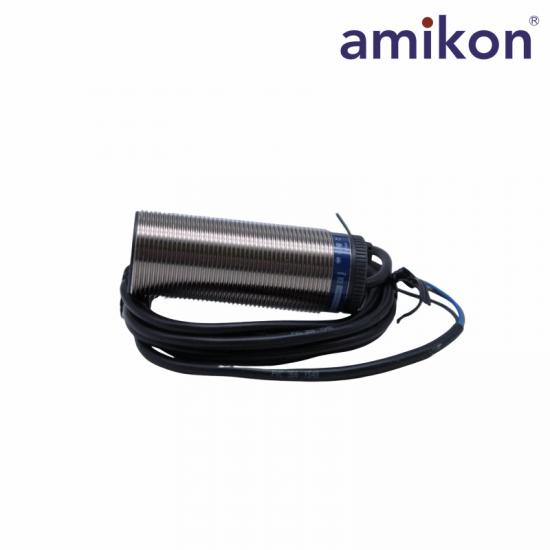

The Schneider Electric XSAV11373 is an inductive proximity sensor from the Telemecanique Inductive Proximity Sensors XS series, designed specifically for rotation monitoring applications. Here are the key features:

Key Specifications:

Range of Product: Telemecanique Inductive Proximity Sensors XS

Series Name: Application

Product or Component Type: Sensor

Sensor Type: Inductive Proximity Sensor

Device Application: Rotation Monitoring

Sensor Name: XSA

Sensor Design: Cylindrical M30

Size: 81 mm

Body Type: Fixed

Detector Flush Mounting Acceptance: Flush Mountable

Material: Metal

Enclosure Material: Nickel-Plated Brass

Type of Output Signal: Discrete

Wiring Technique: 3-wire

Nominal Sensing Distance (Sn): 10 mm

Discrete Output Function: 1 NC (Normally Closed)

Output Circuit Type: DC

Discrete Output Type: PNP

Electrical Connection: Cable

Cable Length: 2 m

Rated Supply Voltage (Us): 12...48 V DC with reverse polarity protection

Switching Capacity in mA: <= 200 mA with overload and short-circuit protection

IP Degree of Protection: IP67 conforming to IEC 60529

This sensor is highly reliable for detecting the presence or absence of metallic objects in various industrial applications, especially where robust protection against harsh environmental conditions is needed.
