Brand/Manufature:
SEMIKRONProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooManufacturer: SEMIKRON
Module Type: IGBT Power Module (SEMiX 3s)
Collector‑Emitter Voltage (VCES): 1200 V
Nominal Collector Current (IC): 364 A @ Tc = 25 °C
Collector Current @ Tc = 80 °C: 256 A
Short‑Circuit Capability: High
Saturation Voltage VCE(sat): ~1.7 V
Diode Forward Voltage VF: 1.6–1.8 V
Switching Delay: td(on) ~265 ns, td(off) ~585 ns
Thermal Resistance Rth j‑c: 0.10 K/W
Isolation Voltage: AC 4000 V

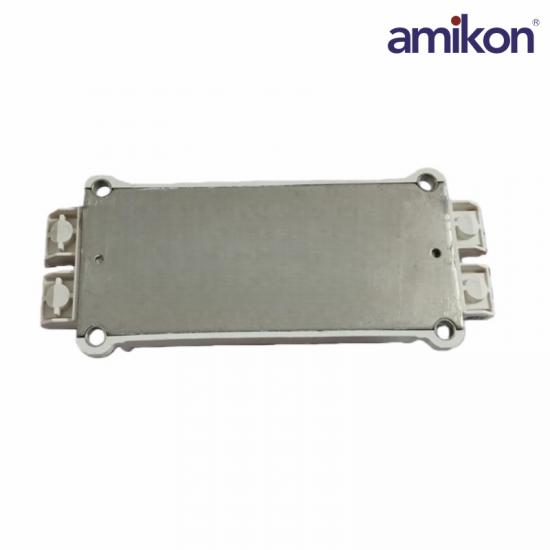

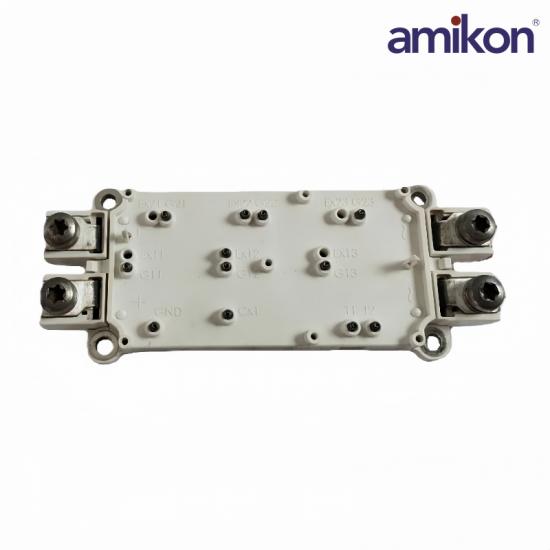

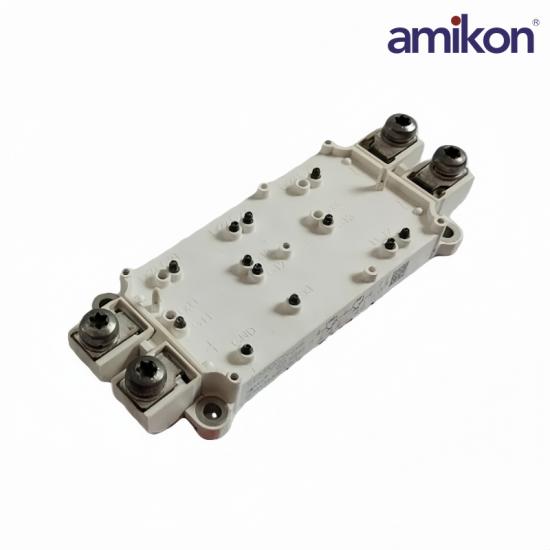

The SEMIKRON SEMiX353GB126V1 is a high-power IGBT module in the SEMiX 3s series, designed for demanding industrial power conversion applications such as inverter drives, UPS systems, welding units and other power electronics requiring rugged performance. It features trench-gate IGBT technology, high short-circuit capability, and a low saturation voltage characteristic with a positive temperature coefficient for safe paralleling. The module is housed in a robust ceramic power module form, optimized for high current (hundreds of amps) and high voltage (≈ 1200 V) operation, with large heat-sink mounting surfaces and standard dual-terminal connections for integration.
