Description：

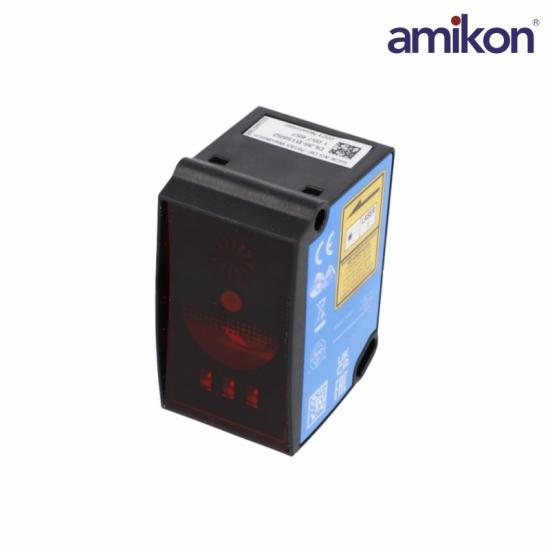

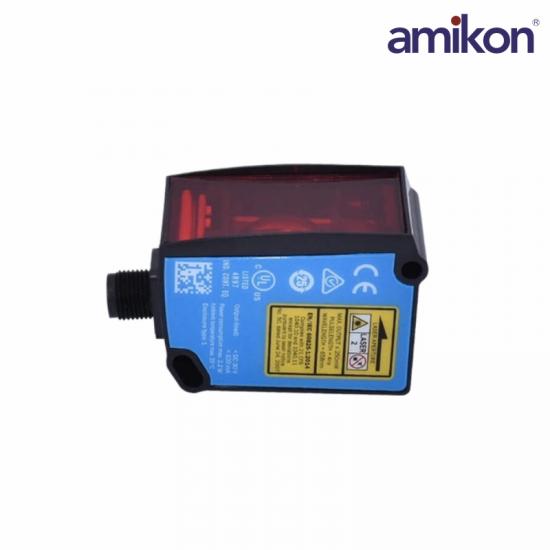

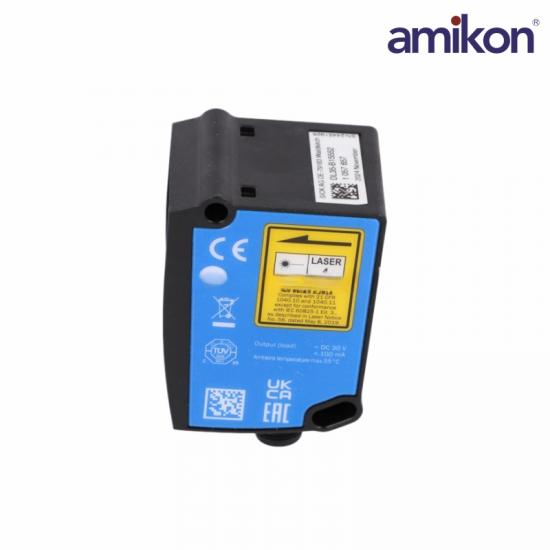

DL35-B15552 is a high-performance laser distance sensor manufactured by SICK AG. It belongs to the Dx35 series of Time-of-Flight (ToF) sensors and is designed for precise long-range distance measurement in industrial , material handling, logistics, and machine control applications.

The sensor uses visible red Class 1 laser technology and supports measurement distances from 200 mm up to 35,000 mm when used with “diamond grade” reflective tape. It provides high-resolution measurement performance, fast response times, IO-Link communication, configurable digital and analog outputs, and robust IP65/IP67 protection for harsh industrial environments.

Specification：

Part Number	DL35-B15552
Resolution	100 µm
Repeatability	≥ 0.5 mm
Measurement accuracy	Typ. ± 15 mm
Response time	2.5 ms ~ 96.5 ms
Response time	Optional: 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms
Switching frequency	333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz
Power Supply	12 to 30 V DC
Power consumption	≤ 1.7 W
Ripple	≤ 5 Vpp
Initialization time	≤ 500 ms
Warm-up time	≤ 20 min
Operating temperature	-30 °C ~ +55 °C (Supply voltage ≤ 24 V)
Storage temperature	-40 °C ~ +75 °C
Max. relative humidity	≤ 95% (non-condensing)
Typical ambient light immunity	40 klx

Frequently asked questions

Q1: What is the SICK DL35-B15552 used for?

A1: SICK DL35-B15552 is a distance sensor used for accurate distance measurement, position detection, and industrial control applications.

Q2: What is the resolution of the DL35-B15552 distance sensor?

A2: The DL35-B15552 sensor provides a high resolution of 100 μm for precise distance measurement.

Q3: What is the repeatability specification of the DL35-B15552 sensor?

A3: The DL35-B15552 repeatability is ≥ 0.5 mm, ensuring stable and reliable measurement performance.

Q4: What is the response time range of the DL35-B15552?

A4: The DL35-B15552 response time ranges from 2.5 ms to 96.5 ms, depending on the operating configuration and application requirements.

Product Applications

Logistics and Warehousing (AGV/RGV): Collision avoidance warning, navigation and positioning, and high-precision stacking height detection for Automated Guided Vehicles (AGVs).

Automotive and Machining Manufacturing: Robotic arm gripping and positioning, workpiece presence detection, and conveyor belt material accumulation monitoring.

Packaging and Food & Beverage: Roll diameter measurement, long-distance material level and height monitoring.

Heavy Industry and Steel: Crane collision avoidance and crane positioning in harsh environments.
