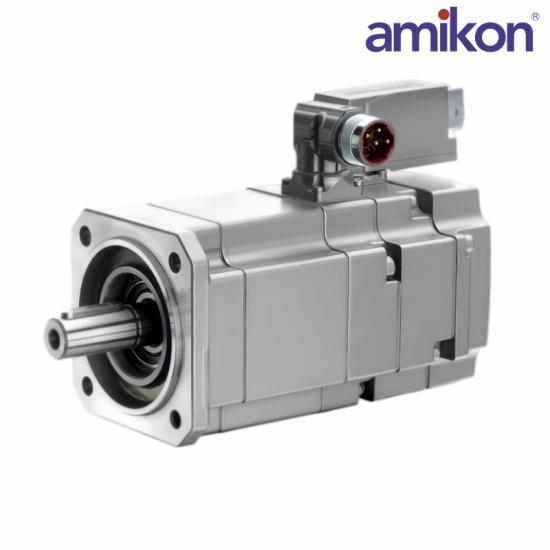

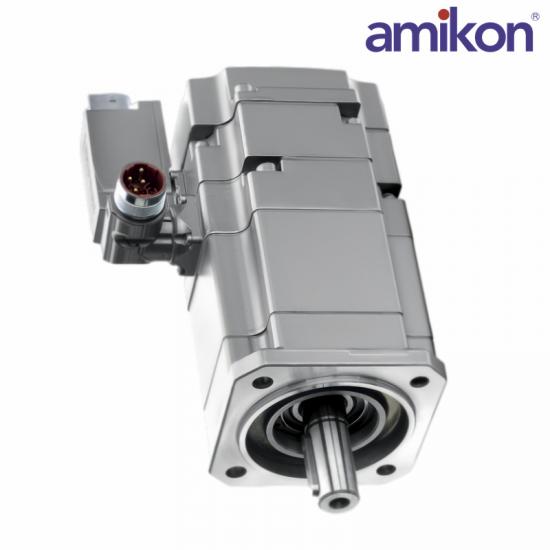

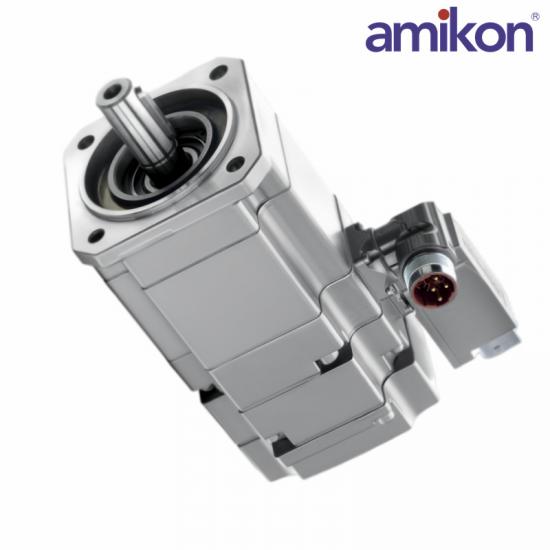

The SIEMENS 1FK7032-5AK71-1LH0 is a high-performance synchronous AC servo motor from the SIMOTICS S-1FK7 series. It is specifically designed for precise, dynamic motion control applications in industrial.

Rated Voltage: 400V AC.

Rated Power Output: 1.6 kW.

Rated Torque: 5.2 Nm.

Rated Speed: 3000 RPM.

Peak Torque: 14.6 Nm.

Rotor Inertia: 0.82 kg·cm².

Frame Size: 32mm.

Weight: 3.8 kg.

Operating Temperature: -20°C to +40°C

Storage Temperature: -30°C to +85°C

 This 1FK7032-5AK71-1LH0 servo motor features advanced technology for dynamic performance and accuracy. Its compatibility with SINAMICS drives ensures seamless integration into systems.

 The 1FK7032-5AK71-1LH0 motor's compact design allows for easy installation in tight spaces while maintaining superior functionality.

The 1FK7032-5AK71-1LH0 motor's design allows it to fit into confined spaces, and its modularity supports a variety of configurations to suit specific applications, such as vertical or horizontal mounting.

With its low rotor inertia, the 1FK7032-5AK71-1LH0 delivers rapid acceleration and deceleration, enhancing the productivity of systems requiring fast and precise motion control.

High torque output relative to the motor size ensures efficient energy use while delivering the force required for heavy-duty applications.

Supports SIN/COS signals for smooth and noise-free operation, ensuring minimal vibration even at high speeds.
