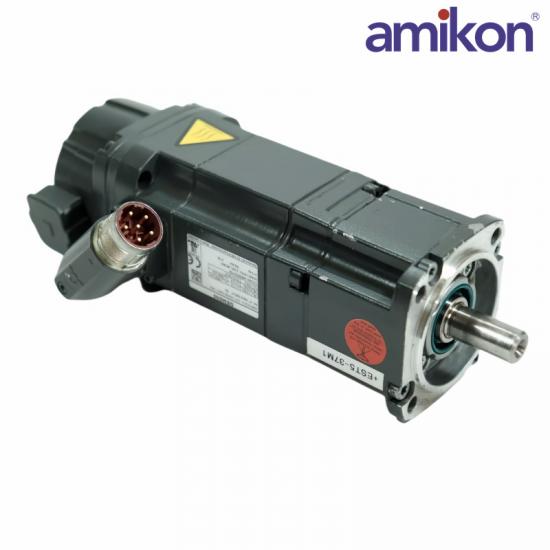

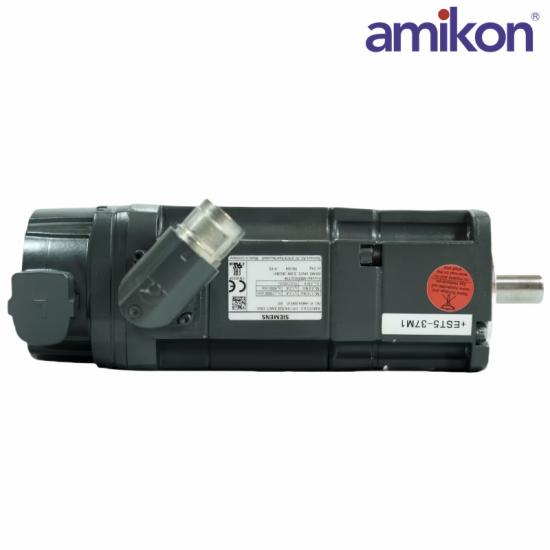

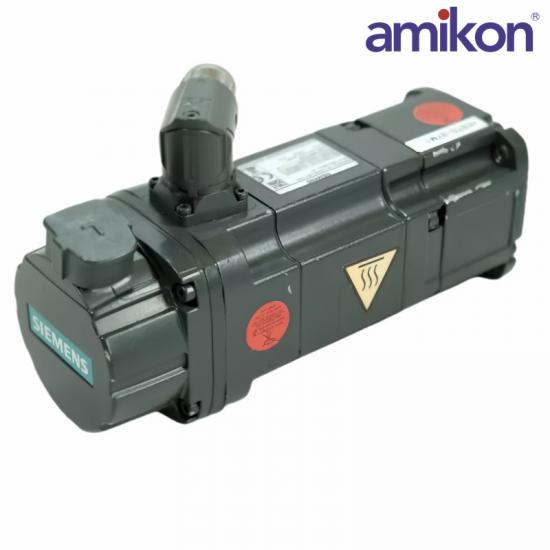

The SIEMENS 1FK7042-2AK71-1CH0 is part of the SIMOTICS S-1FK7 series of servo motors, designed for high-performance motion control applications. This particular model is a synchronous servo motor known for its precise control capabilities and energy-efficient operation.

Rated Power: 1.6 kW

Rated Torque: 7.3 Nm

Rated Speed: 3000 RPM

Peak Torque: 21.9 Nm

Nominal Voltage: 400 V AC

Protection Class: IP65

Weight: 7.5 kg

1FK7042-2AK71-1CH0 As a synchronous motor, it operates with constant speed under varying load conditions, ensuring consistent performance and precise control over time.

The 1FK7042-2AK71-1CH0 motor is designed for high efficiency, with low power losses, making it ideal for energy-sensitive applications.

1FK7042-2AK71-1CH0 Equipped with an integrated encoder, the motor provides precise position and speed feedback, ensuring accurate control in applications that require fine motion control.

The 1FK7042-2AK71-1CH0 provides a high torque-to-size ratio, making it compact yet powerful enough to handle demanding tasks.

The 1FK7042-2AK71-1CH0 motor offers a wide speed range, allowing it to operate effectively at both low and high speeds, providing versatility in various industrial applications.
