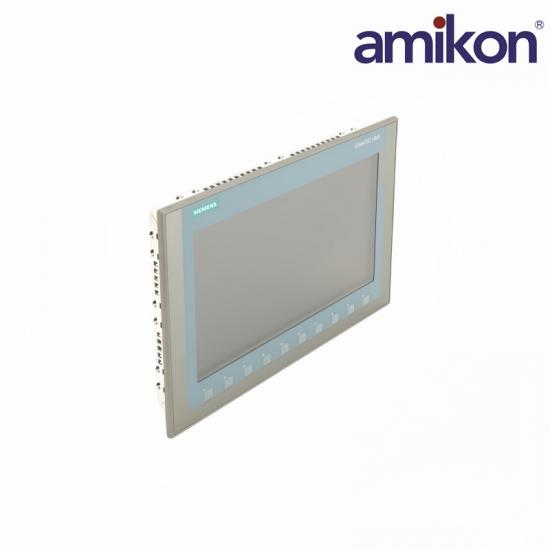

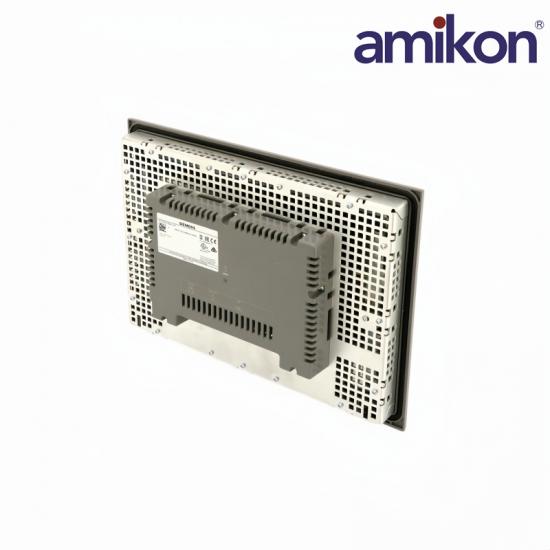

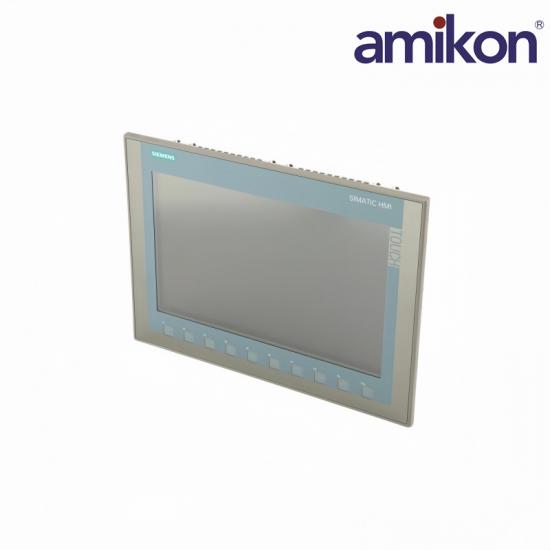

Siemens 6AV2123-2MA03-0AX0 KTP1200 Basic DP HMI Panel

6AV2123-2MA03-0AX0
6AV2123-2MA03-0AX0
6AV2123-2MA03-0AX0

Siemens 6AV2123-2MA03-0AX0 KTP1200 Basic DP HMI Panel

✉  INQUIRE NOW

SIEMENS · SIMATIC HMI Basic Panels

6AV2123-2MA03-0AX0

KTP1200 Basic DP HMI Panel

MANUFACTURERSiemens
MODEL6AV2123-2MA03-0AX0
PART NUMBER6AV2123-2MA03-0AX0
PRODUCT TYPEKTP1200 Basic DP HMI Panel
SYSTEM FAMILYSIMATIC HMI Basic Panels
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6AV2123-2MA03-0AX0
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens SIMATIC HMI Basic Panels

6AV2123-2MA03-0AX0

Price and Availability Inquiry

The Siemens 6AV2123-2MA03-0AX0 is a KTP1200 Basic DP HMI Panel for local operator control and visualization over PROFIBUS.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV2123-2MA03-0AX0 and required quantity in your inquiry.

Siemens 6AV2123-2MA03-0AX0

Technical Specifications

Official identity, technical, compatibility and lifecycle data for the KTP1200 Basic DP HMI Panel.

01Product IdentityExact HMI panel identification
MANUFACTURERSiemens
ORDER NUMBER6AV2123-2MA03-0AX0
PRODUCT DESIGNATIONSIMATIC HMI KTP1200 Basic DP
PRODUCT FAMILYSIMATIC HMI Basic Panels
02Display DataOfficial Siemens display parameters
DISPLAY12 in TFT widescreen
COLOR DEPTH65,536 colors
RESOLUTION1280 × 800 pixels
DISPLAY AREA261.1 × 163.2 mm
03Interface DataOfficial communication interfaces
PROCESSORARM
USER MEMORY10 Mbyte
VARIABLES PER DEVICE800
USB INTERFACES1; up to 16 GB
04Electrical & ProtectionOfficial supply and enclosure data
RATED SUPPLY VOLTAGE24 V DC
PERMISSIBLE RANGE19.2–28.8 V DC
RATED CURRENT550 mA
FRONT / REAR PROTECTIONIP65 / IP20

Siemens 6AV2123-2MA03-0AX0 Product Support

Frequently Asked Questions

Display, PROFIBUS, engineering, mounting and commissioning guidance for 6AV2123-2MA03-0AX0.

01

What type of operator panel is 6AV2123-2MA03-0AX0?

It is a SIMATIC HMI KTP1200 Basic DP panel with a 12-inch TFT display, 65,536 colors, and combined key and touch operation.

02

Which network does the KTP1200 Basic DP use?

This variant communicates over PROFIBUS. Confirm the connector, bus termination, node address and baud rate used by the existing automation system.

03

Which engineering software is required?

Siemens specifies configuration from WinCC Basic V13 and STEP 7 Basic V13. Also check that the installed project version and target firmware are mutually supported.

04

Can a PROFINET Basic Panel replace this DP model directly?

Not directly. A PROFINET panel uses a different communication interface, so the PLC connection, cabling and HMI project must be redesigned or migrated.

05

What should be backed up before replacement?

Back up the HMI project, recipes and transferable runtime data, and record the PROFIBUS address, communication settings and mounting details.

06

What should be verified during commissioning?

Test touch and key operation, PLC communication, alarms, recipes, time synchronization and all safety-relevant operator actions in the installed machine.

07

What ordering information prevents a panel mismatch?

Use the full order number 6AV2123-2MA03-0AX0 and provide the current panel nameplate, project version, interface type and required accessories.
