Siemens 6AV2124-1QC02-0AX1 KP1500 Comfort Panel

6AV2124-1QC02-0AX1
6AV2124-1QC02-0AX1
6AV2124-1QC02-0AX1

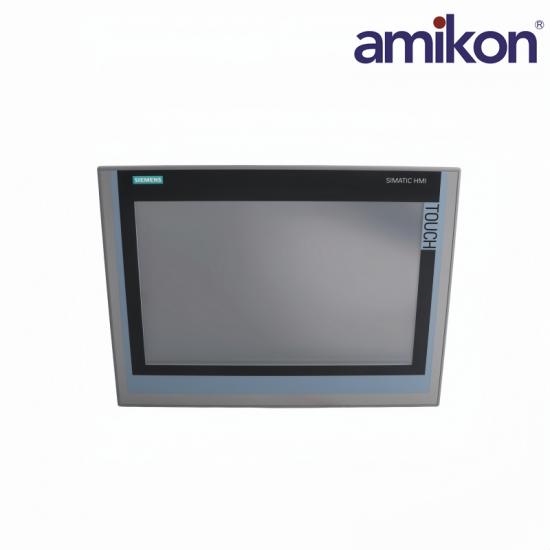

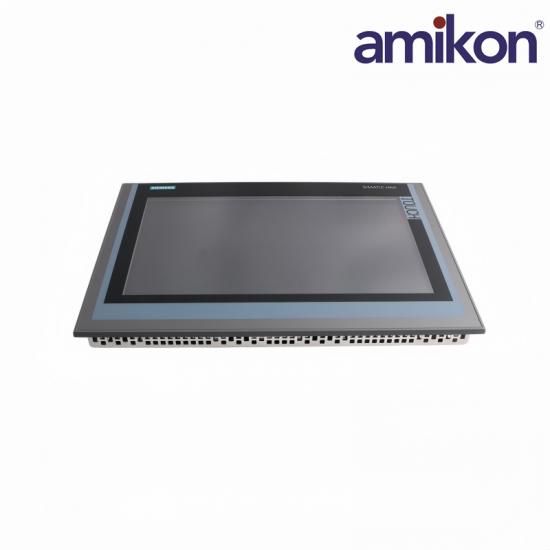

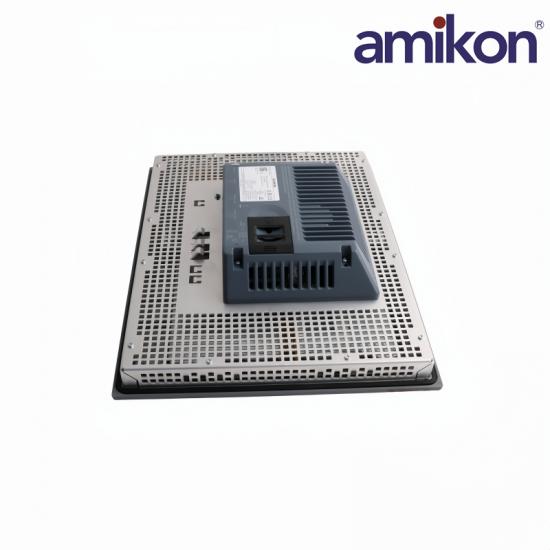

Siemens 6AV2124-1QC02-0AX1 KP1500 Comfort Panel

✉  INQUIRE NOW

SIEMENS · SIMATIC HMI

6AV2124-1QC02-0AX1

KP1500 Comfort Panel

MANUFACTURERSiemens
MODEL6AV2124-1QC02-0AX1
PART NUMBER6AV2124-1QC02-0AX1
PRODUCT TYPEKP1500 Comfort Panel
SYSTEM FAMILYSIMATIC HMI
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6AV2124-1QC02-0AX1

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    12 Months
Inquire Now

Siemens SIMATIC HMI

6AV2124-1QC02-0AX1

Price and Availability Inquiry

The Siemens 6AV2124-1QC02-0AX1 is a 15-inch key-operated SIMATIC HMI Comfort Panel with PROFINET and MPI/PROFIBUS DP interfaces.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV2124-1QC02-0AX1 and required quantity in your inquiry.

Siemens 6AV2124-1QC02-0AX1

Technical Specifications

Official display, control, interface, memory, power and environmental data for KP1500 Comfort.

01Product IdentityOfficial product data
ManufacturerSiemens
Article Number6AV2124-1QC02-0AX1
Product DesignationKP1500 Comfort
Product FamilySIMATIC HMI
02Display & ControlsOfficial product data
Display15-inch widescreen TFT
Colors16 million
Display Resolution1280 × 800 pixels
Function Keys36, all with LEDs
03Interfaces & MemoryOfficial product data
Ethernet Interfaces2; 2-port switch + independent port
Serial Interface1 × combined RS 422/485
Configuration Memory24 MB
USB Interfaces2 × USB 2.0
04Power & EnvironmentOfficial product data
Ambient TemperatureUp to 50 °C
Extended OperationUp to 55 °C with restrictions
Rated Supply24 V DC (19.2–28.8 V)
Net WeightApprox. 5.76 kg

Siemens 6AV2124-1QC02-0AX1 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6AV2124-1QC02-0AX1

01

Which operator stations are suited to the KP1500 Comfort Panel?

It is designed for key-operated SIMATIC HMI applications needing a 15-inch widescreen display, PROFINET and MPI/PROFIBUS DP communications, rather than touch operation.

02

How should the WinCC project be prepared for this AX1 panel?

Use WinCC Comfort V14 SP1 with the required HSP or a supported later engineering environment, select the exact device version and verify that the project fits the 24 MB configuration memory.

03

How should the 36 illuminated function keys be commissioned?

Test the configured direct keys, LED outputs, system keys and numeric or alphanumeric entries against the PLC program and operator procedure, including alarm and mode-selection functions.

04

Which network settings must be preserved during replacement?

Record the PROFINET device name and IP settings plus the MPI or PROFIBUS address, baud rate and bus termination. Restore them from the approved project instead of relying on defaults.

05

Which mounting conditions require an installation review?

The panel is intended for landscape mounting with the specified cutout and clamping arrangement. Confirm cabinet clearance, 24 V DC supply, grounding and ambient temperature before commissioning.

06

How should migration to the MTP1500 successor be assessed?

Siemens points to 6AV2128-3QB06-0AX1 as the successor and warns about installation dimensions. Review the cutout or adapter solution and convert and test the Comfort project for WinCC Unified.

07

Which order data distinguishes this phase-out panel?

State 6AV2124-1QC02-0AX1, KP1500 Comfort, key operation and the project software version. Preserve the AX1 suffix and confirm whether the requirement is an identical spare or a planned Unified migration.
