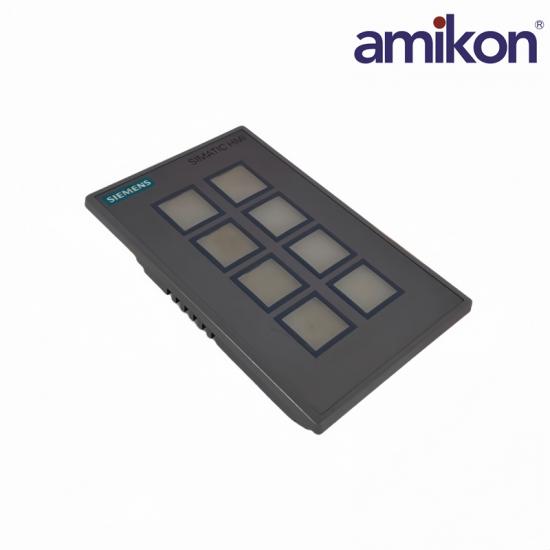

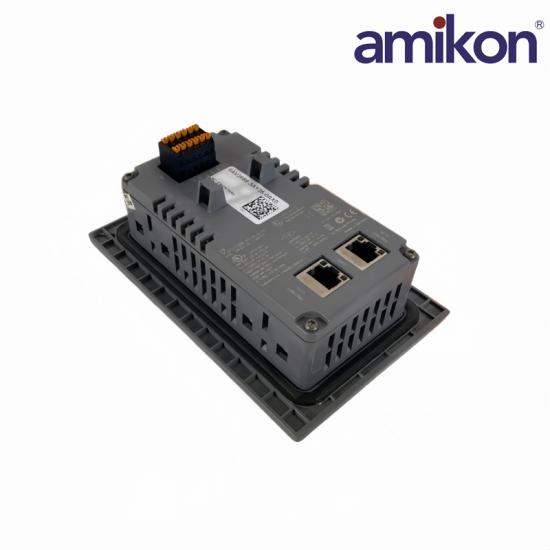

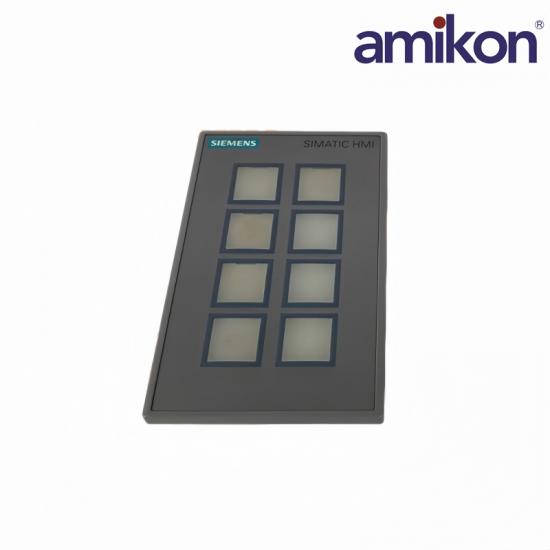

SIMATIC HMI KP8 PN Key Panel

MANUFACTURERSiemens
MODEL6AV3688-3AY36-0AX0
PART NUMBER6AV3688-3AY36-0AX0
PRODUCT TYPESIMATIC HMI KP8 PN Key Panel
SYSTEM FAMILYSIMATIC HMI Key Panels
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6AV3688-3AY36-0AX0
  • Product Origin:

    Germany
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens SIMATIC HMI Key Panels

6AV3688-3AY36-0AX0

Price and Availability Inquiry

The Siemens 6AV3688-3AY36-0AX0 is a SIMATIC HMI KP8 PN Key Panel in the SIMATIC HMI Key Panels family for industrial automation maintenance, integration and replacement applications.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV3688-3AY36-0AX0 and required quantity in your inquiry.

Siemens 6AV3688-3AY36-0AX0

Technical Specifications

Official identification, electrical, interface and installation data for the SIMATIC HMI KP8 PN Key Panel.

01Product IdentityOfficial Siemens identification
ManufacturerSiemens
Article Number6AV3688-3AY36-0AX0
Product DesignationKP8 PN
Product FamilySIMATIC HMI Key Panels
02Operator ControlsKey and indication data
Short-Stroke Keys8
LED Color Modes5 colors
Configurable DI/DO8 total pins
Parameterizable KeysSupported
03Electrical DataPower and I/O ratings
Rated Supply24 V DC
Permissible Range20.4–28.8 V DC
Rated Current0.3 A
Output Load100 mA max. resistive
04IntegrationInstallation and engineering
InterfacePROFINET
MountingFront mounting with clamps
EngineeringSTEP 7 V5.5 or later
Order CheckArticle number and label photo

SIEMENS 6AV3688-3AY36-0AX0 PRODUCT SUPPORT

Frequently Asked Questions

Application, PROFINET, key assignment, mounting and I/O verification guidance for the SIMATIC HMI KP8 PN.

01

How is the KP8 PN integrated into a PROFINET station?

Assign the device name and IP settings in the engineering project, connect the PROFINET interface and confirm that the configured station matches the physical panel.

02

How should the eight configurable DI/DO pins be allocated?

Plan the total of eight pins as inputs and outputs according to the project, then verify terminal assignment, load type and channel direction before wiring.

03

Can existing key and LED assignments be reused after replacement?

Yes, when the same project configuration is restored and the device name, network settings, key functions and five-color LED indications are checked against the machine documentation.

04

Which mounting details matter during installation?

Use front mounting with the specified clamps, maintain the permitted mounting orientation and inclination, and protect the 24 V DC wiring while the panel is de-energized.

05

How should connected output loads be checked?

Confirm every load is compatible with a 24 V DC transistor output and remains within the documented 100 mA resistive-load limit.

06

Which tests belong in KP8 PN commissioning?

Test all eight keys, every configured DI/DO point, each required LED color and PROFINET diagnostics before returning the operator station to service.

07

Which project information should accompany an inquiry?

Send article number 6AV3688-3AY36-0AX0, STEP 7 project version, required quantity, front-panel photos and the current device-label image.
