Siemens SIMATIC HMI

6AV6545-0AG10-0AX0

Price and Availability Inquiry

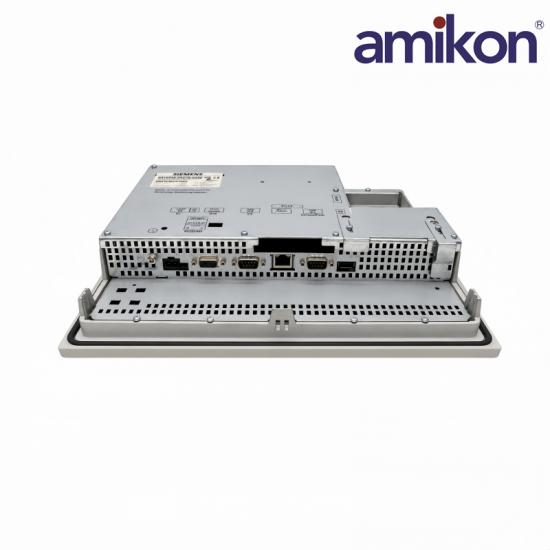

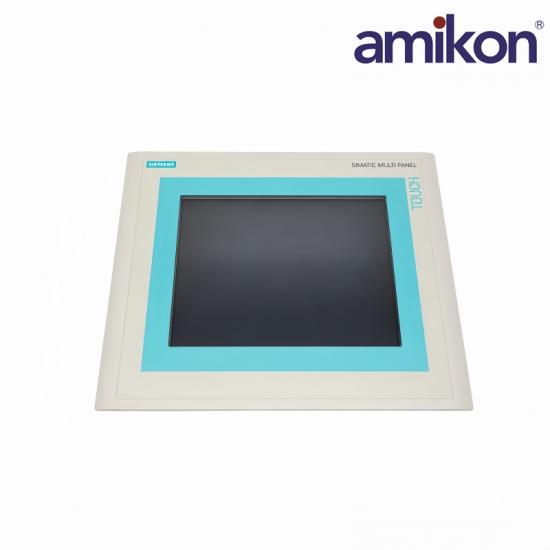

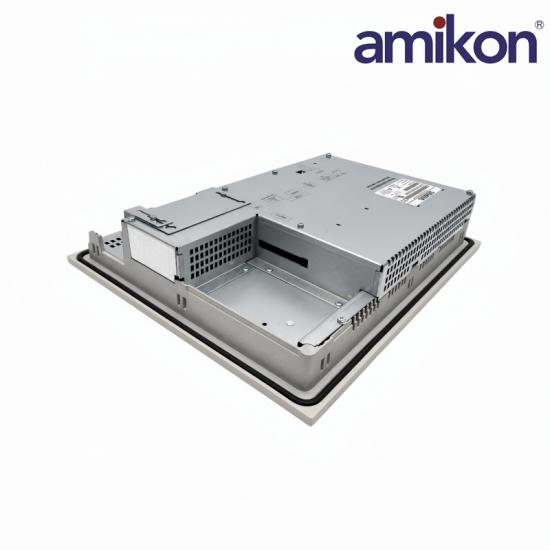

Legacy 10.4-inch touch HMI with color TFT display, Windows CE and multiple serial, Ethernet and USB interfaces.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation supportSend the complete model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LLLisa LinSales Specialist

WhatsApp+86 18965423501

Emailsales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6AV6545-0AG10-0AX0 and required quantity in your inquiry.

SIEMENS 6AV6545-0AG10-0AX0

Technical Specifications

Source-verified display, memory, interface and electrical data for 6AV6545-0AG10-0AX0.

01Product IdentityOfficial Siemens documentation

ManufacturerSiemens

Article number6AV6545-0AG10-0AX0

Product designationMP 270B Touch

Product familySIMATIC HMI

02Display & MemoryOfficial Siemens equipment manual

Display10.4-inch TFT LCD touch panel

Resolution640 x 480 pixels (VGA)

Colors256

Configuration memory4 MB

03Communication & StorageOfficial Siemens equipment manual

Ethernet1 x 10/100 Mbit/s

Serial interfaces2 x RS-232; 1 x RS-422/RS-485

Fieldbus interfaceMPI / PROFIBUS-DP

Storage slotsCompactFlash and PC Card

04Electrical & EnclosureOfficial Siemens equipment manual

Rated supply24 V DC

Permissible range18 to 30 V DC

Current consumptionApprox. 0.9 A typical; 1.0 A maximum

Protection ratingFront IP65 / NEMA 4x; rear IP20

Siemens 6AV6545-0AG10-0AX0 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation and ordering guidance for 6AV6545-0AG10-0AX0.

Which display is fitted to this MP 270B variant?

It uses a 10.4-inch TFT touch display with 256 colors and 640 × 480 pixel resolution.

Which communication interfaces are available?

The panel provides RS-232, RS-422, RS-485, Industrial Ethernet RJ45 and USB connections.

Which removable storage formats are supported?

Published hardware data includes PC Card and CompactFlash slots; verify card capacity and formatting with the installed image.

Which supply should be prepared?

Use a regulated 24 V DC supply sized for the specified maximum current of 900 mA.

How does the mounting angle affect temperature limits?

Vertical operation is specified to +50 °C, while inclined installation has a lower upper limit; follow the enclosure manual.

How should an HMI replacement be commissioned?

Back up the project, recipes and communication settings, then verify touchscreen calibration and PLC links after restoration.

Which ordering checks prevent an incompatible substitute?

Match the full 6AV6545-0AG10-0AX0 number, display size, interface set, project software and panel cutout.
