Siemens SIMATIC HMI Micro Panels

6AV6640-0CA01-0AX0

Price and Availability Inquiry

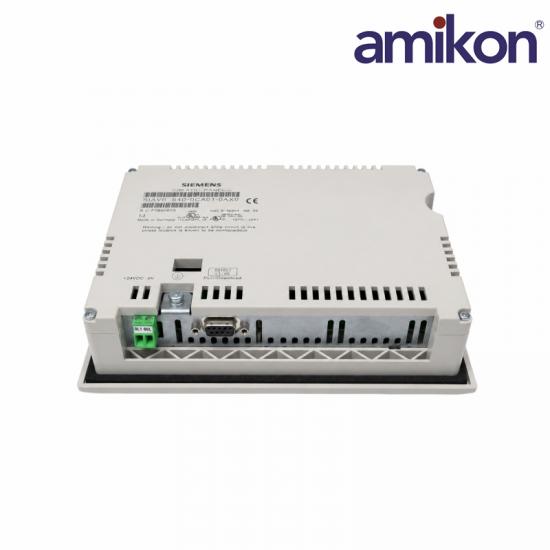

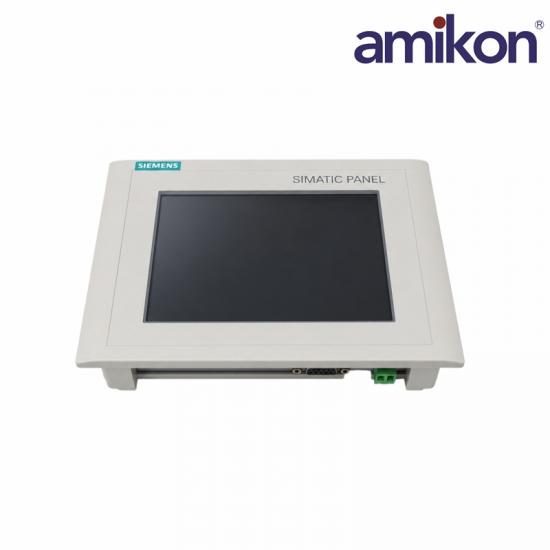

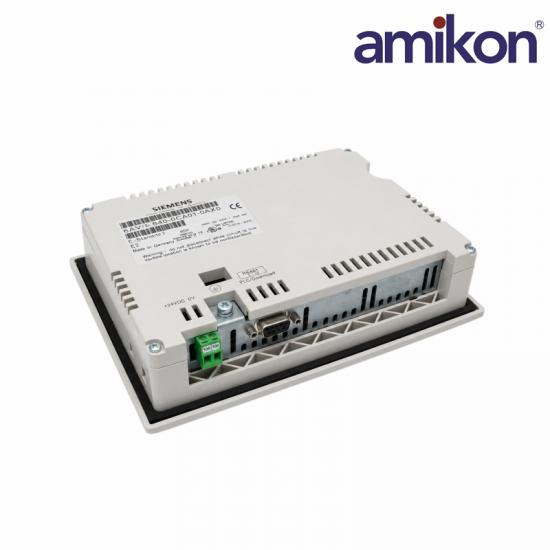

The Siemens 6AV6640-0CA01-0AX0 is a TP 170micro operator touch panel in the SIMATIC HMI Micro Panels range.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6AV6640-0CA01-0AX0 and required quantity in your inquiry.

Siemens 6AV6640-0CA01-0AX0

Technical Specifications

Official PDF-supported technical data for 6AV6640-0CA01-0AX0.

01Display DataOfficial TP 170micro manual

Display TypeSTN LCD

Active Area116 × 87 mm (5.7 in)

Resolution320 × 240 pixels

Color Mode4 Blue Mode

02Memory & InterfaceOfficial TP 170micro data

Working Memory256 KB

Operator InputTouch screen

InterfaceRS 422 / RS 485

Connector9-pin Sub-D socket

03Power DataOfficial TP 170micro data

Rated Voltage24 V DC

Permissible Range20.4–28.8 V DC

Maximum Transient35 V for 500 ms

Minimum Transient Interval50 s

04Mechanical & ProtectionOfficial TP 170micro data

WeightApproximately 700 g

Front ProtectionIP65

Rear ProtectionIP20

Backlight Life50,000 h typical

Siemens 6AV6640-0CA01-0AX0 Product Support

Frequently Asked Questions

Practical compatibility, application, installation, commissioning and ordering guidance for 6AV6640-0CA01-0AX0.

Which applications use the TP 170micro panel?

The panel is intended for SIMATIC HMI Micro Panel applications; confirm the connected controller and the original HMI project before replacement.

What should be backed up before removing the panel?

Archive the HMI project, recipes, alarm texts, communication parameters and any available operating-system backup.

Which mechanical checks are required?

Confirm the panel cutout, mounting clamps, connector clearance and environmental sealing condition before installation.

How should communications be commissioned?

Use the project-approved interface settings and cable, then verify controller communication, tag updates, alarms and operator inputs.

Can a different TP 170 order number be used directly?

Do not assume direct interchangeability; compare the complete order number, display/interface variant, operating-system level and project compatibility.

What is important when migrating to a newer HMI?

Convert the original project with a supported engineering path and validate screens, scripts, alarms, recipes and controller addresses offline first.

What should be confirmed when ordering 6AV6640-0CA01-0AX0?

Provide the exact order number, panel label, connected PLC, existing project software version, quantity and required accessories.
