Siemens SIMATIC MP 277

6AV6643-0DB01-1AX1

Price and Availability Inquiry

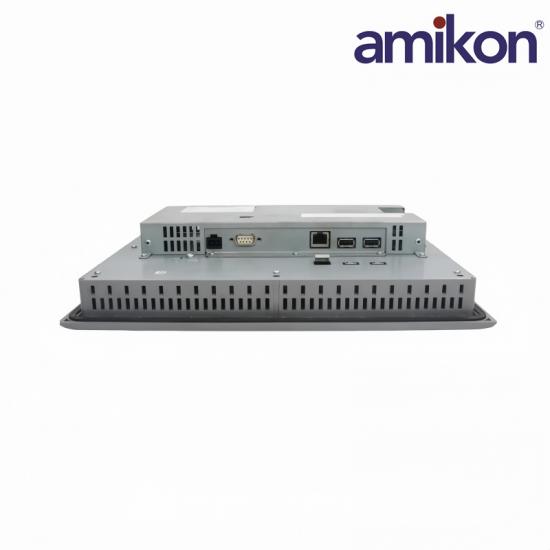

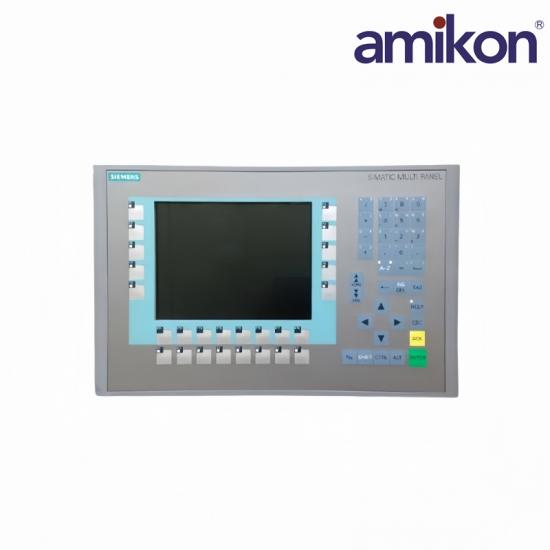

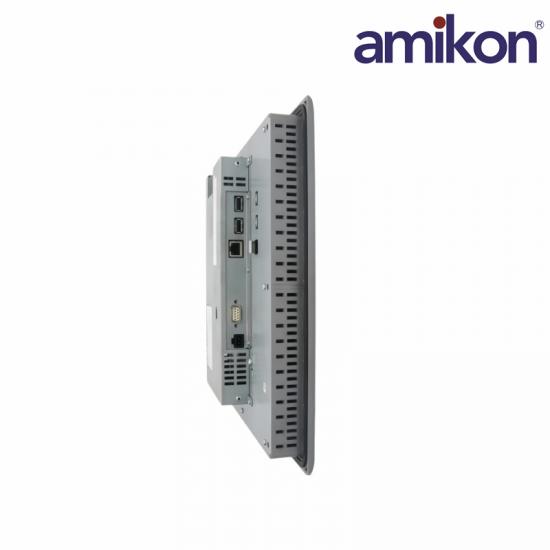

The Siemens 6AV6643-0DB01-1AX1 is a SIMATIC MP 277 8-inch Key operator panel with a 7.5-inch TFT display and membrane-key input for machine visualization.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6AV6643-0DB01-1AX1 and required quantity in your inquiry.

Siemens 6AV6643-0DB01-1AX1

Technical Specifications

Identification, display, operator-input and lifecycle data for the MP 277 8-inch Key panel.

01Product IdentityCore product information

ManufacturerSiemens

Article number6AV6643-0DB01-1AX1

Product designationMP 277 8-inch Key

Product familySIMATIC MP 277

02Display DataOfficial screen characteristics

Display typeLCD TFT

Active display size7.5 inch

Resolution640 × 480 pixels

Display colors64k colors

03Operator InterfaceKeyboard and storage data

Input deviceMembrane keyboard

Function keys26

LED function keys18

Application memory6 MB

04Lifecycle & ReplacementMigration and ordering checks

Net weightApprox. 2.25 kg

Lifecycle statusP.M410

Recommended migrationKP900 Comfort

Verification checkMatch panel cutout and interfaces

Siemens 6AV6643-0DB01-1AX1 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6AV6643-0DB01-1AX1.

Is this a touch-screen panel?

No. This variant is the MP 277 8-inch Key model with a membrane keyboard.

What is the actual active display size?

The active TFT display measures 7.5 inches with 640 × 480 pixel resolution.

How many function keys are provided?

The panel provides 26 function keys, including 18 keys with LEDs.

Can a KP900 Comfort be installed without project changes?

Treat KP900 Comfort as a migration option, not a drop-in replacement; review panel cutout, interfaces and WinCC project conversion.

Why is the complete suffix important?

MP 277 key and touch versions share similar names, so the full article number prevents ordering the wrong operator interface.

What should be backed up before replacement?

Archive the HMI project, recipes, licenses and communication settings before removing the installed panel.

What should an inquiry include?

Provide the article number, panel photos, installed interface details, project software version and quantity.
