Siemens SIMATIC HMI Basic Panels

6AV6647-0AC11-3AX1

Price and Availability Inquiry

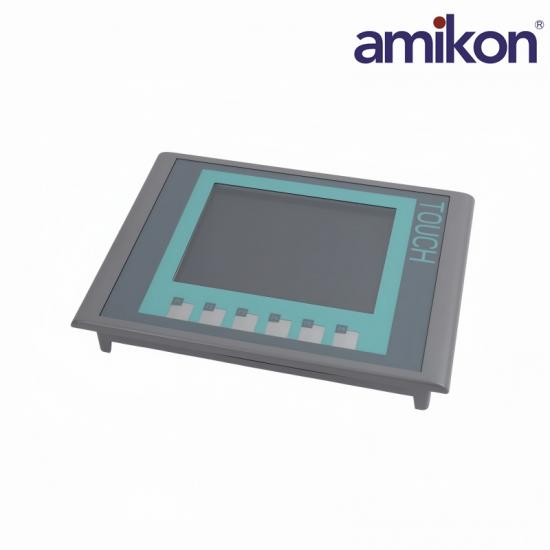

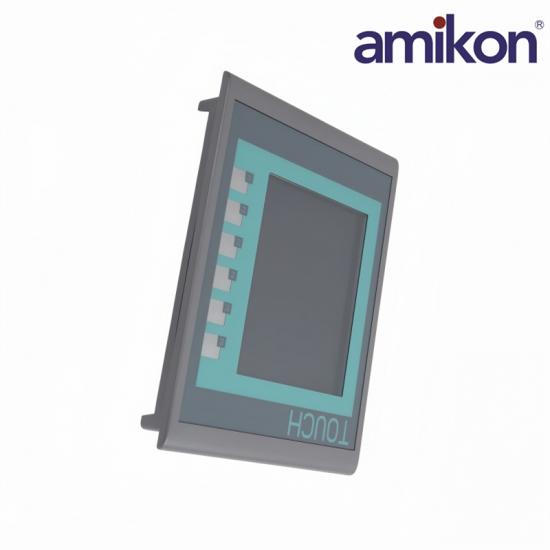

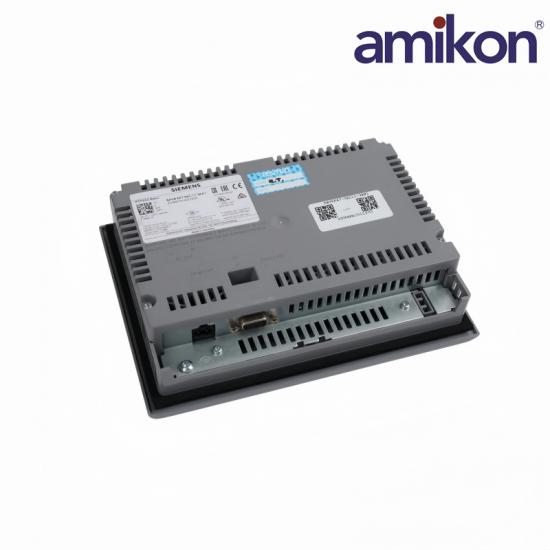

The Siemens 6AV6647-0AC11-3AX1 is a KTP600 Basic Color DP operator panel with a 5.7-inch color touch display and MPI/PROFIBUS DP interface.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6AV6647-0AC11-3AX1 and required quantity in your inquiry.

Siemens 6AV6647-0AC11-3AX1

Technical Specifications

Identification, display, interface and installation data for the KTP600 Basic Color DP panel.

01Product IdentityCore product information

ManufacturerSiemens

Article number6AV6647-0AC11-3AX1

Product designationKTP600 Basic Color DP

Product familySIMATIC HMI Basic Panels

02Display & OperationOfficial screen and operator data

Display technologyTFT LCD

Active display area115.2 × 86.4 mm (5.7 in)

Resolution & colors320 × 240 pixels · 256 colors

Operator inputAnalog resistive touch · 6 function keys

03Communication & EngineeringFieldbus and project configuration data

Fieldbus interface1 × RS-422/RS-485

Maximum transfer rate12 Mbps

Supported networkMPI / PROFIBUS DP

Engineering softwareWinCC flexible 2008 SP2 Compact · WinCC Basic V11

04Power & InstallationElectrical and mechanical installation data

Rated supply voltage24 V DC

Permissible range19.2–28.8 V DC

Device dimensions214 × 158 × 44 mm

Mounting cutout197 × 141 mm

Siemens 6AV6647-0AC11-3AX1 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6AV6647-0AC11-3AX1.

What is 6AV6647-0AC11-3AX1?

It is a SIMATIC HMI KTP600 Basic Color DP operator panel with key and touch operation.

What display is fitted?

The panel uses a 5.7-inch TFT display with 320 × 240 pixel resolution and 256 colors.

Which network interface is available?

It provides an MPI/PROFIBUS DP interface for compatible automation systems.

Which engineering software should be checked?

Confirm the project in WinCC Basic V11 or a compatible later engineering environment.

Can the project be transferred from an older panel?

Project conversion and device selection may be required; verify screens, alarms, drivers and tags.

What should be checked before installation?

Confirm the 24 V DC supply, mounting cutout, front seal, communication cable and project backup.

What should be included in an inquiry?

Provide the complete model, quantity, project software version, interface type and label photos.
