Description：

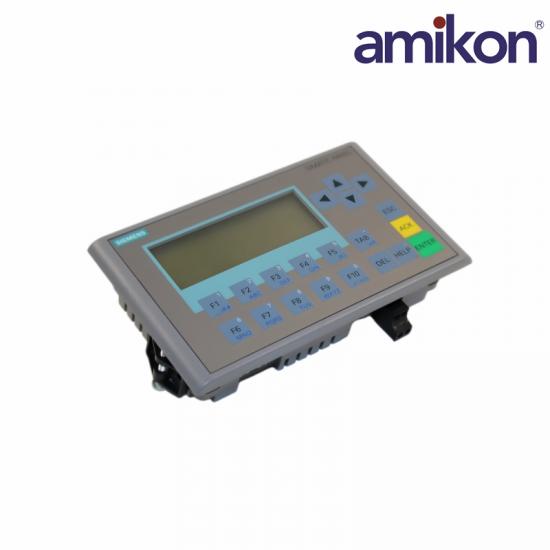

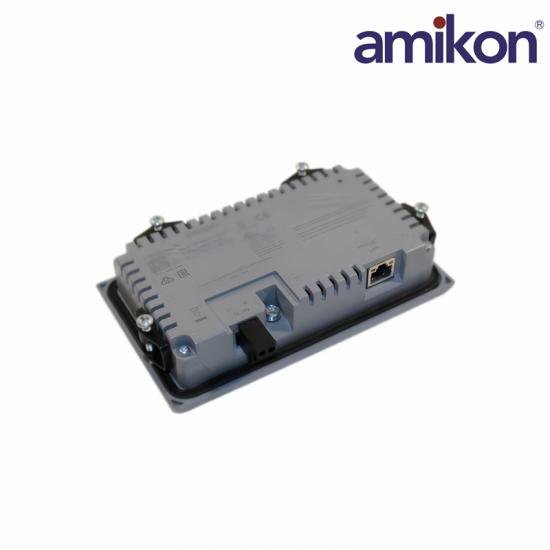

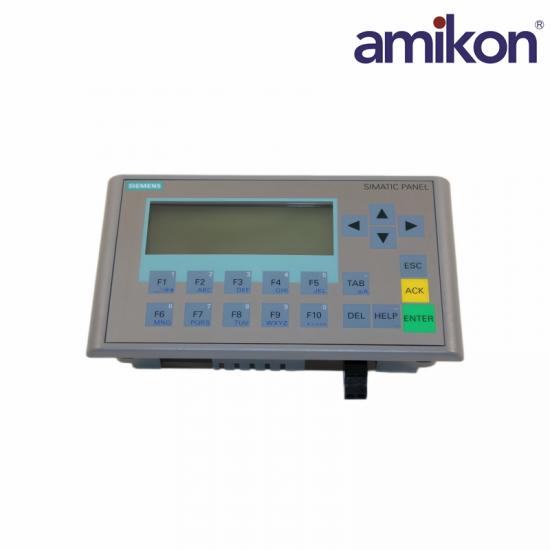

The Siemens part number 6AV6647-0AH11-3AX0 is a versatile operator interface tailored for industrial use. It features a FSTN LCD display that measures 3.6 inches diagonally and is equipped to present information in four distinct colors: white, red, green, and yellow. This interface is well-designed for environmental resilience, sporting a front protection rating of IP65 and a back rating of IP20.

With a resolution of 128 x 64 pixels, the interface delivers clear visuals while consuming only 3 watts of power. It measures 87 mm wide and 31 mm tall, allowing for a compact installation. The unit operates effectively within a temperature range of 0°C to +50°C and can withstand relative humidity levels up to 95%, provided there is no condensation present.

This operator interface connects through a PROFINET communication interface, enhancing its compatibility with various control systems. With a power supply requirement of 24 V DC ± 20%, the interface is designed to be quickly integrated into existing setups. Ideal for panel mounting, this component has a weight of approximately 0.4 kg, making it a manageable option for installation.

Specification：

Frequently asked questions

What is the screen size and resolution of the KP300 Basic mono PN?

It features a 3.6-inch FSTN monochrome LCD screen with a resolution of 240 x 80 pixels.

What is the required supply voltage?

It operates on a nominal 24 V DC power supply (permissible range is 19.2 V to 28.8 V).

What is the maximum number of screens I can create in a project?

The system limit restricts configuration to a maximum of 50 screens.

How much user memory does this HMI panel offer?

It has 1 MB of integrated flash memory dedicated to storing the user configuration project.

Product Applications

Packaging and printing machinery industry: Used for on-site control and status display of small sealing machines, labeling machines, light-duty case packing machines, and small label printing equipment.

Food and beverage processing plants: Commonly used to control small mixers, filling machines, conveyor belt sorting systems, and simple sterilization and temperature control equipment.

Environmental protection and water treatment industry: Used for on-site monitoring and alarm prompts in pure water preparation systems, sewage pumping station pumping control, and simple dosing devices in small and medium-sized factories.
