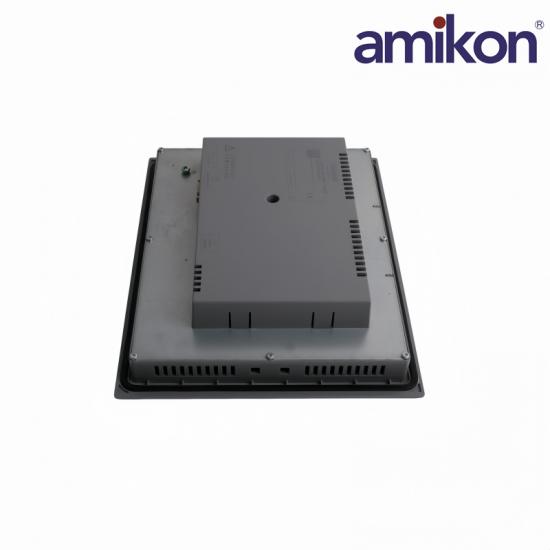

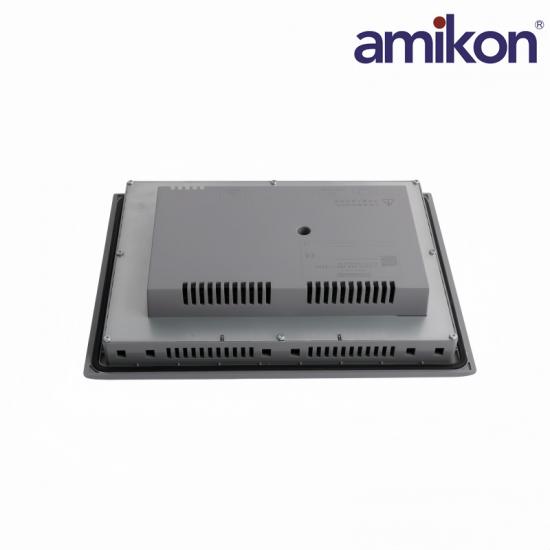

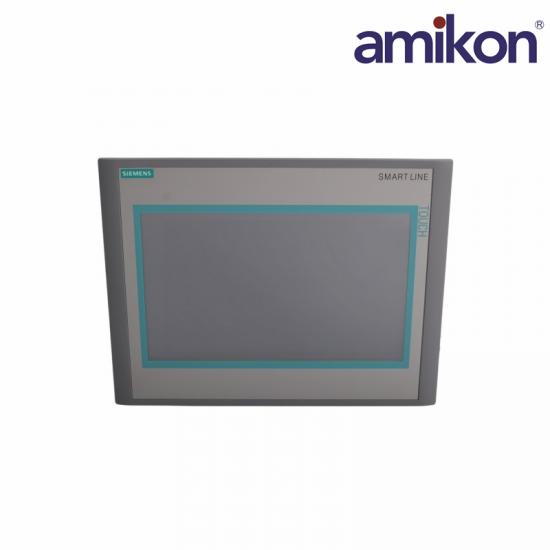

Siemens 6AV6648-0AF11-3AX0 SIMATIC HMI Smart 1000 Touch Panel

6AV6648-0AF11-3AX0
6AV6648-0AF11-3AX0
6AV6648-0AF11-3AX0

Siemens 6AV6648-0AF11-3AX0 SIMATIC HMI Smart 1000 Touch Panel

✉  INQUIRE NOW

SIEMENS · TECHNICAL PRODUCT DATA

6AV6648-0AF11-3AX0

10.2-inch Industrial HMI Touch Panel

MANUFACTURERSiemens
MODEL6AV6648-0AF11-3AX0
PART NUMBER6AV6648-0AF11-3AX0
PRODUCT TYPE10.2-inch Industrial HMI Touch Panel
SYSTEM FAMILYSIMATIC HMI Smart
ORDER SUPPORTExact MLFB verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6AV6648-0AF11-3AX0
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Siemens · SIMATIC HMI Smart

6AV6648-0AF11-3AX0

Price and Availability Inquiry

The Siemens 6AV6648-0AF11-3AX0 is a SIMATIC HMI Smart 1000 operator panel with a 10.2-inch widescreen touch display and serial process connection. Confirm the complete part number and installed configuration before ordering.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6AV6648-0AF11-3AX0 and required quantity in your inquiry.

Siemens 6AV6648-0AF11-3AX0

Technical Specifications

Official identification, configuration and operating data

01Product IdentityOfficial Siemens documentation
MANUFACTURERSiemens
ARTICLE NUMBER6AV6648-0AF11-3AX0
PRODUCT DESIGNATIONSIMATIC HMI Smart 1000
PRODUCT FAMILYSIMATIC HMI Smart
02DisplayManufacturer-published values
DISPLAY SIZE10.2-inch widescreen TFT
RESOLUTION800 × 480 pixels
COLOR DEPTH256 colors
BACKLIGHTLED; 40,000 h half-brightness
03Interface & MemoryOfficial operating data
TOUCH INPUTResistive touch screen
SERIAL INTERFACE1 × RS422/485
MAXIMUM DATA RATE187.5 kbit/s
APPLICATION MEMORY1024 MB
04Power & PhysicalPublished installation data
RATED SUPPLY24 V DC
PERMITTED RANGE19.2–28.8 V DC
CURRENT600 mA typical; 1000 mA maximum
NET WEIGHTApprox. 1.7 kg

SIEMENS 6AV6648-0AF11-3AX0 PRODUCT SUPPORT

Frequently Asked Questions

Practical identification, compatibility, installation and ordering guidance.

01

How is this panel identified?

Match the complete Siemens article number 6AV6648-0AF11-3AX0 and the Smart 1000 designation.

02

What display is fitted?

The panel uses a 10.2-inch widescreen TFT display with 800 × 480 pixel resolution and 256 colors.

03

Which operator input is provided?

Operator input is through a resistive touch screen.

04

Which communication interface is available?

One RS422/485 serial interface is provided with a maximum published rate of 187.5 kbit/s.

05

What supply is required?

Use a nominal 24 V DC supply within the published 19.2 to 28.8 V DC range.

06

Which engineering software applies?

The documented engineering basis is WinCC flexible 2008 SP2 China.

07

What should be checked before replacement?

Verify the exact MLFB, panel cutout, project backup, serial parameters and supply wiring.
