Description：

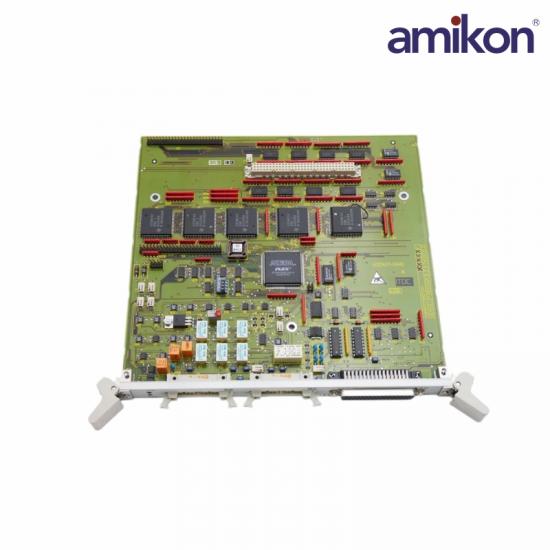

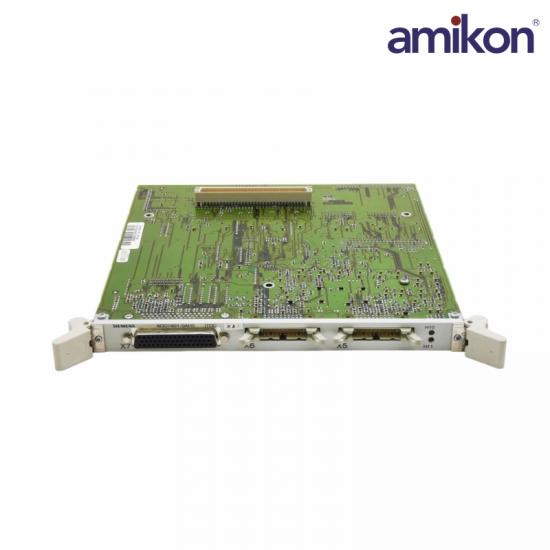

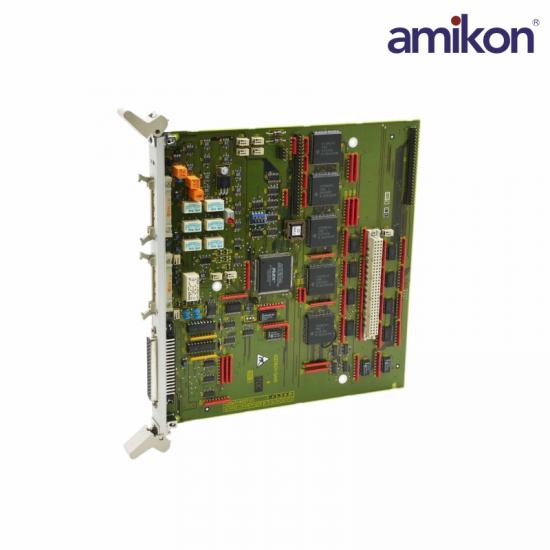

The Siemens 6DD1601-0AH0 Expansion Module is a specialized ITDC (converter control) expansion module designed for the SIMADYN D system. It is primarily used in conjunction with PM4, PM5, and PM6 processor modules to provide advanced control functions for line-commutated converters via a SITOR interface.

Specification：

Frequently asked questions

Q1: What is the Siemens 6DD1601-0AH0 Expansion Module?

A1: It is an expansion module used in Siemens drive and control systems, designed to extend functionality by providing additional I/O and interface capabilities.

Q2: What type of converters is this 6DD1601-0AH0 module compatible with?

A2: It is designed for use with 6-pulse drive converters, commonly used in industrial motor control applications.

Q3: What interfaces are available on this 6DD1601-0AH0 module?

A3: The 6DD1601-0AH0 module includes 1 × SITOR interface, enabling communication with compatible system components.

Q4: How 6DD1601-0AH0 many analog outputs does it support?

A4: It provides 2 analog output channels for transmitting control or monitoring signals.

Q5: How many digital outputs are available?

A5: The 6DD1601-0AH0 module includes 4 digital output channels for control and signaling functions.

Product Applications

Steel and Metallurgical Industry: As an expansion module of ITDC, it is often used to control the line reversing converter through the SITOR interface (SITOR IF). This is very common in large rolling mills, high-precision speed control drives, and DC motor control.

Power System: Used for complex power drive management and power conversion control.

Chemical and Petroleum: Applied to process control sections with extremely high response time requirements.

Heavy Machinery Manufacturing: Supports servo control and motor control systems with high dynamic performance.
