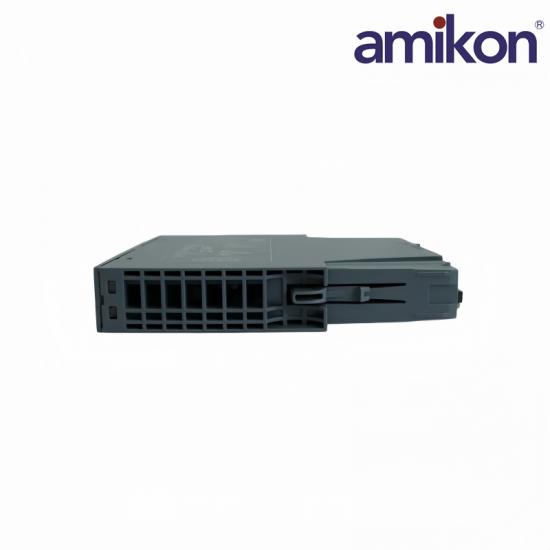

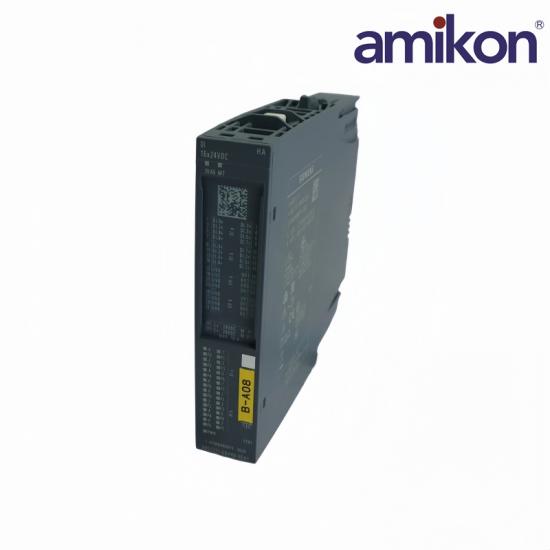

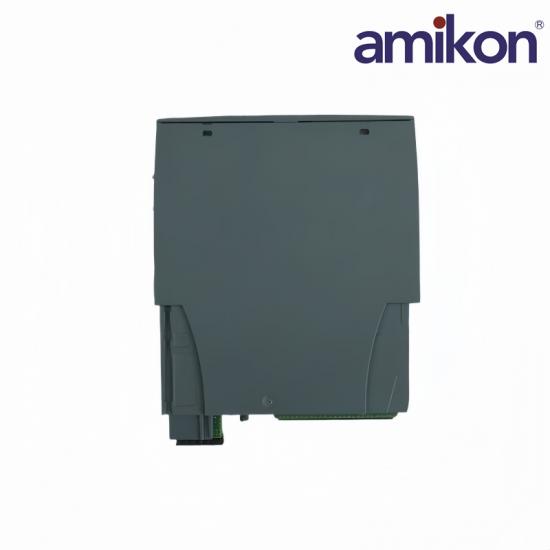

Siemens 6DL1131-6BH00-0EH1 SIMATIC ET 200SP HA 16-Channel Digital Input Module

6DL1131-6BH00-0EH1
6DL1131-6BH00-0EH1
6DL1131-6BH00-0EH1

Siemens 6DL1131-6BH00-0EH1 SIMATIC ET 200SP HA 16-Channel Digital Input Module

✉  INQUIRE NOW

SIEMENS · SIMATIC ET 200SP HA

6DL1131-6BH00-0EH1

DI 16x24VDC HA Digital Input Module

MANUFACTURERSiemens
MODEL6DL1131-6BH00-0EH1
PART NUMBER6DL1131-6BH00-0EH1
PRODUCT TYPEDI 16x24VDC HA Digital Input Module
SYSTEM FAMILYSIMATIC ET 200SP HA
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6DL1131-6BH00-0EH1

  • Order(MOQ):

    1

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    COO
Inquire Now

Siemens · SIMATIC ET 200SP HA HA HA

6DL1131-6BH00-0EH1

Price and Availability Inquiry

Siemens 6DL1131-6BH00-0EH1 is a SIMATIC ET 200SP HA HA HA digital input module with sixteen 24 V DC channels. It supports configurable pulse extension, edge evaluation and time stamping for process-automation signal acquisition.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6DL1131-6BH00-0EH1 and required quantity in your inquiry.

Siemens 6DL1131-6BH00-0EH1

Technical Specifications

Official Siemens channel, threshold, timing and installation data.

01 Product Identity Exact Siemens reference
Manufacturer Siemens
Article Number 6DL1131-6BH00-0EH1
Product Designation DI 16x24VDC HA
System Family SIMATIC ET 200SP HA HA
02 Input Data Published digital thresholds
Digital Inputs 16
Rated Input 24 V DC
Signal 0 Range −30 to +5 V
Signal 1 Range +11 to +30 V
03 Timing & Functions Configurable channel behavior
Cycle Time 1 ms
Time-Stamp Precision 1 ms option
Pulse Extension 50 ms to 2 s
Edge Evaluation Rising / falling / change
04 Installation Data Supply and environmental limits
Supply Range 19.2–28.8 V DC
Terminal Blocks H1 or M1
Operating Temperature −40 to +70 °C horizontal
Dimensions (H × D) 115 × 138 mm

Siemens 6DL1131-6BH00-0EH1 Product Support

Frequently Asked Questions

ET 200SP HA compatibility, signal application, redundant installation, channel configuration, timing, diagnostics and ordering guidance.

01

Where can the DI 16x24VDC HA module be integrated?

It is designed for SIMATIC ET 200SP HA process-automation stations. Siemens also documents SPPA-T3000 integration from V8.0; verify the installed engineering and station versions.

02

Which 24 V digital signals are valid for its inputs?

The documented signal-0 range is −30 to +5 V and signal-1 range is +11 to +30 V. Check sensor leakage current and field voltage against these thresholds.

03

Which terminal block is required for redundant operation?

Use the documented M1 terminal block for redundant configurations. H1 is listed for standard installation; match the mechanical encoding and terminal assignment before insertion.

04

How can short input pulses be configured?

Channel parameters provide pulse extension settings of 50, 100, 200 or 500 ms and 1 or 2 s, plus an off setting. Select a value that preserves required process events without masking repeats.

05

What timing functions support event analysis?

The module offers a 1 ms cycle time, a 1 ms time-stamp option and rising, falling or change-of-state edge evaluation for sequence-of-events applications.

06

Which diagnostics should be reviewed during commissioning?

Check supply-voltage monitoring, encoder-supply diagnostics, short-circuit indications, channel LEDs and the process-control system diagnostic buffer before accepting the module.

07

What configuration data should accompany an order?

Provide 6DL1131-6BH00-0EH1, H1 or M1 terminal-block type, redundancy mode, firmware, station and engineering-system version, channel settings and required quantity.
