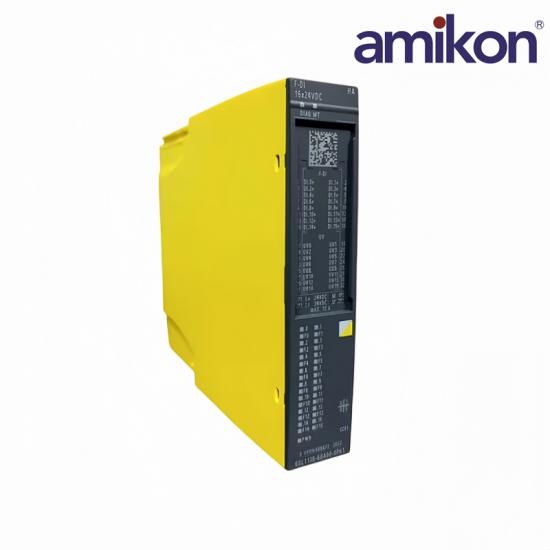

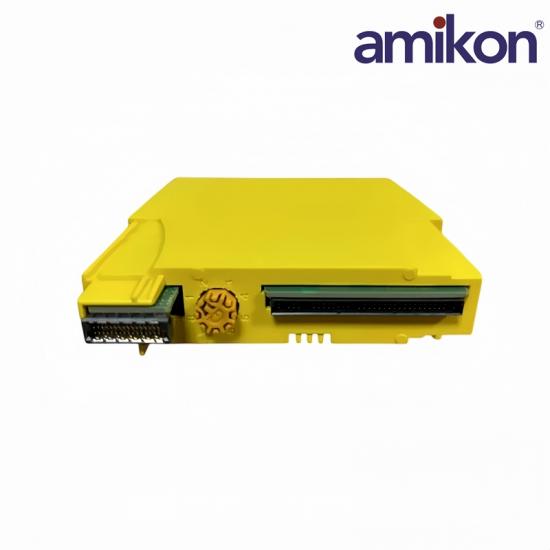

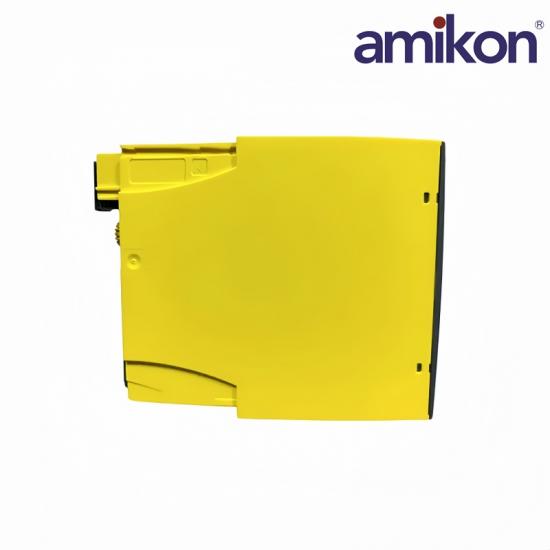

Siemens 6DL1136-6BA00-0PH1 ET 200SP HA F-DI 16x24VDC

6DL1136-6BA00-0PH1
6DL1136-6BA00-0PH1
6DL1136-6BA00-0PH1

Siemens 6DL1136-6BA00-0PH1 ET 200SP HA F-DI 16x24VDC

✉  INQUIRE NOW

SIEMENS · ET 200SP HA

6DL1136-6BA00-0PH1

F-DI 16x24VDC HA Digital Input Module

MANUFACTURERSiemens
MODEL6DL1136-6BA00-0PH1
PART NUMBER6DL1136-6BA00-0PH1
PRODUCT TYPEF-DI 16x24VDC HA Digital Input Module
SYSTEM FAMILYET 200SP HA
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6DL1136-6BA00-0PH1
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    COO

Siemens ET 200SP HA

6DL1136-6BA00-0PH1

Price and Availability Inquiry

The Siemens 6DL1136-6BA00-0PH1 is a sixteen-channel fail-safe 24 V DC digital-input module for ET 200SP HA. It is input-only; verify the F-address, terminal block and approved safety project before replacement.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6DL1136-6BA00-0PH1 and required quantity in your inquiry.

Siemens 6DL1136-6BA00-0PH1

Technical Specifications

Siemens equipment-manual data for the F-DI 16x24VDC HA module.

01Product IdentitySiemens F-DI manual
ManufacturerSiemens
Order Number6DL1136-6BA00-0PH1
ModuleF-DI 16x24VDC HA
SystemET 200SP HA
02Digital InputsSiemens F-DI manual
Input Channels16
Input Rating24 V DC
Signal 0 Range−30 to +5 V
Signal 1 Range+15 to +30 V
03Supply & SafetySiemens F-DI manual
Rated Supply24 V DC
Supply Range19.2–28.8 V DC
Typical Power Loss3.2 W
Highest Safety ClassSIL 3 / PL e when engineered accordingly
04InstallationSiemens F-DI manual
Terminal BlocksH1/M1/H0/N0
Redundancy BlockM1
Width × Height × Depth22.5 × 115 × 138 mm
Approximate Weight210 g

Siemens 6DL1136-6BA00-0PH1 Product Support

Frequently Asked Questions

Input thresholds, supply, terminal blocks, diagnostics and safety guidance for 6DL1136-6BA00-0PH1.

01

Does this module drive outputs?

No; it is a sixteen-channel fail-safe digital-input module.

02

What input voltage denotes logic one?

Siemens specifies +15 to +30 V for signal 1.

03

What nominal supply is required?

24 V DC, with 19.2–28.8 V permitted.

04

Which terminal block is used for redundancy?

TB type M1 in the Siemens manual.

05

Is SIL 3 automatically achieved by plugging it in?

No; SIL 3/PL e is the highest achievable classification for a suitable engineered safety function.

06

What diagnostics are available?

Channel status/fault and module/supply LEDs, plus parameterizable wire-break and encoder-supply monitoring.

07

What must be verified before replacement?

Complete 0PH1 article, F-address, terminal block, field wiring, safety program and proof-test procedure.
