SIEMENS · SPPA-T3000 / AddFEM

6DL3100-8AC05

Price and Availability Inquiry

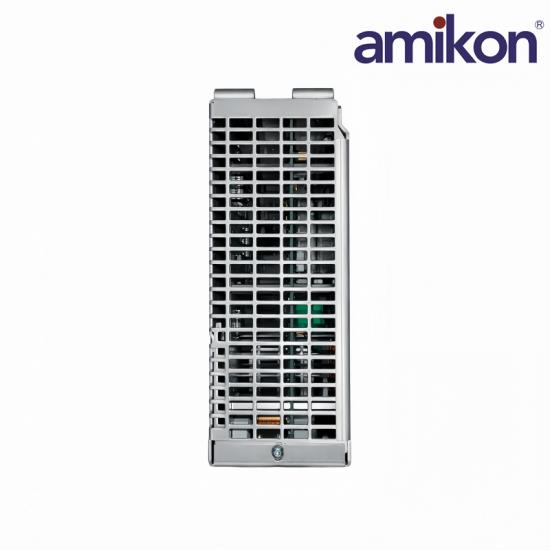

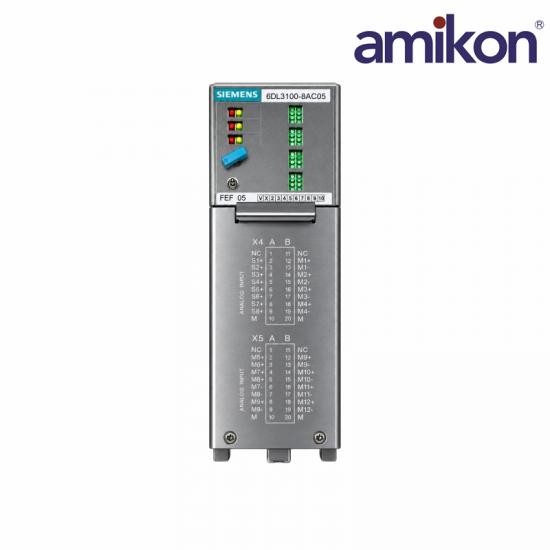

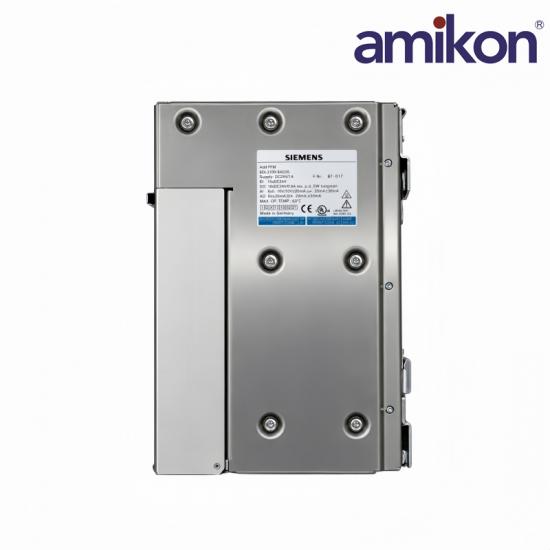

Siemens 6DL3100-8AC05 is an AddFEM PoCo Plus field electronics module with PROFIBUS DP, mixed analog and digital I/O and extended redundant-channel operation.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation supportSend the model and required quantity directly to Lisa Lin.

Your AMIKON Contact

LLLisa LinSales Specialist

WhatsApp+86 18965423501

Emailsales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6DL3100-8AC05 and required quantity in your inquiry.

SIEMENS 6DL3100-8AC05

Technical Specifications

Official Siemens supply, I/O, redundancy, interface and mechanical data for AddFEM PoCo Plus.

01Product IdentityExact Siemens reference

ManufacturerSiemens

Part Number6DL3100-8AC05

Product DesignationAddFEM PoCo Plus

System FamilySPPA-T3000 / AddFEM

02Supply & MechanicalPublished module data

Module Supply24 V DC

Operating Range19.2–30 V DC

Internal Protection2.5 A fuse; not replaceable

Dimensions (H × W × D)295 × 75 × 209 mm

03Digital I/O DataPublished channel ratings

Digital Inputs12 fixed + 16 configurable

Count-Pulse Inputs3

Input TypeIEC 61131-2 Type 1

Input Delay50 μs typical transition

04Redundancy & NetworkOfficial system functions

FieldbusPROFIBUS DP

Extended RedundancyIndependent channel wiring supported

Redundancy Links2 fiber-optic cables per pair

Net Weight2.8 kg

Siemens 6DL3100-8AC05 Product Support

Frequently Asked Questions

SPPA-T3000 integration, PROFIBUS configuration, mixed-I/O wiring, extended redundancy, fiber links, grounding and ordering guidance for AddFEM PoCo Plus.

What distinguishes 6DL3100-8AC05 from earlier AddFEM variants?

The PoCo Plus version adds extended redundancy so selected channels can remain non-redundant or be wired differently within a redundant pair.

Which automation system is the standard host?

Siemens documents 6DL3100-8AC05 for SPPA-T3000 with the AddFEM/SPPA-T3000 GSD and compatible S7-400 PROFIBUS interfaces.

How is the module powered?

Connect a regulated 24 V DC supply within 19.2–30 V DC; the module input includes an internal non-replaceable 2.5 A protective fuse.

How many digital channels are available?

The hardware provides 12 fixed digital inputs, 16 pins configurable as digital inputs or outputs, and three count-pulse inputs.

What is required for a redundant AddFEM pair?

The -8AC05 variant uses two 1.6 m fiber-optic redundancy cables per pair and normally requires symmetrical process wiring unless a channel is intentionally configured otherwise.

What installation checks are essential?

Ground the stainless-steel enclosure, verify 24 V module and external load supplies, check PROFIBUS addressing and validate each process connector before startup.

What AddFEM configuration details should accompany the order?

Specify 6DL3100-8AC05, PoCo Plus function, host system, GSD environment, redundancy requirement, fiber-link quantity and complete connector scope.
