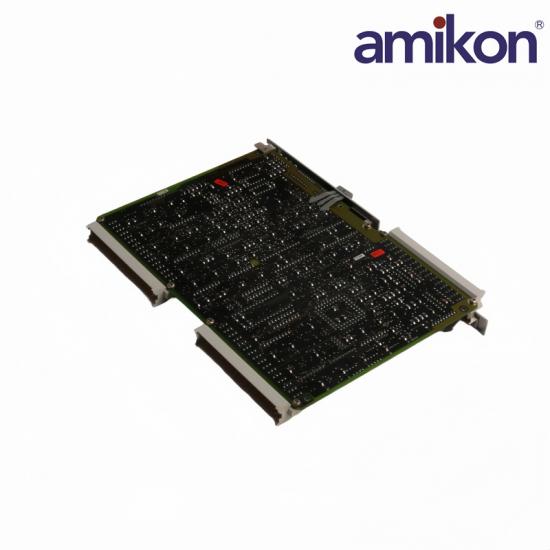

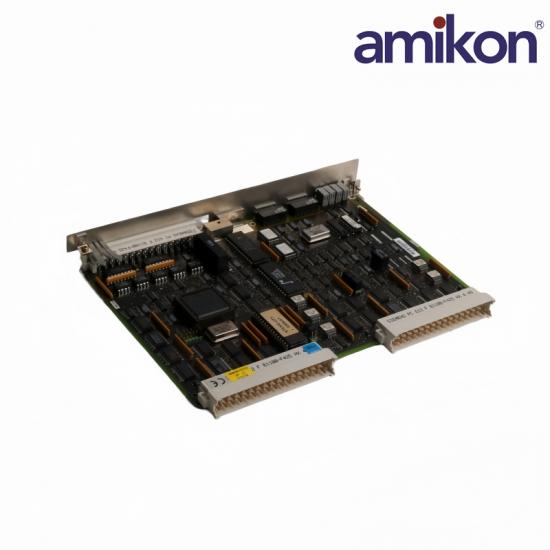

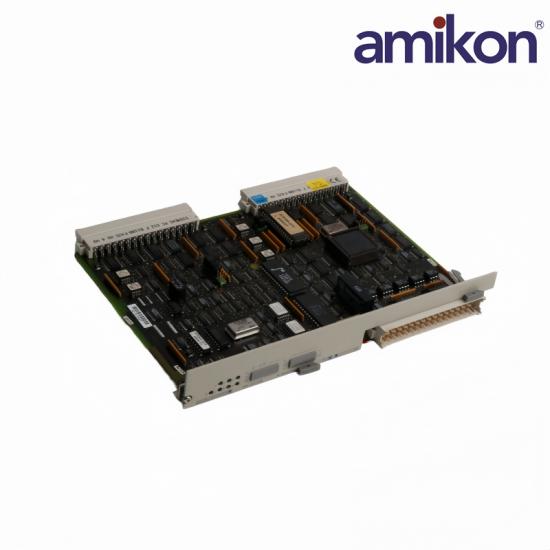

Siemens 6DS1223-8AA N-AS Local Bus Interface Module

6DS1223-8AA
6DS1223-8AA
6DS1223-8AA

Siemens 6DS1223-8AA N-AS Local Bus Interface Module

✉  INQUIRE NOW

SIEMENS · TELEPERM M CS 275

6DS1223-8AA

N-AS Local Bus Interface Module

MANUFACTURERSiemens
MODEL6DS1223-8AA
PART NUMBER6DS1223-8AA
PRODUCT TYPEN-AS Local Bus Interface Module
SYSTEM FAMILYTELEPERM M CS 275
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    6DS1223-8AA

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Brand/Manufature:

    Siemens

  • Product Origin:

    Germany

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

Siemens TELEPERM M CS 275

6DS1223-8AA

Price and Availability Inquiry

The Siemens 6DS1223-8AA is an N-AS local bus interface module used to connect AS or OS systems on the TELEPERM M CS 275 local bus.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6DS1223-8AA and required quantity in your inquiry.

Siemens 6DS1223-8AA

Technical Specifications

Exact module data plus clearly identified CS 275 system-level values from the official Siemens TELEPERM M manual.

01Product IdentityExact TELEPERM M module
ManufacturerSiemens
Article Number6DS1223-8AA
DesignationN-AS
Module TypeLocal-bus interface
02Local Bus DataExact system application
Bus SystemCS 275
Maximum Distance20 m
Earth Potential DifferenceMaximum 0.2 V
Local RedundancyStandard
03CS 275 CapacitySystem-level manual data
Local BusesUp to 32
Participants per BusUp to 99
Remote Bus ReachUp to 4 km
Remote RedundancyOptional
04Network ArchitectureOfficial TELEPERM M system data
Controller SystemAS 235 H
Local InterfaceN-AS
Remote InterfaceUI bus converter
Signal Conversion20 m local bus to 4 km remote bus

Siemens 6DS1223-8AA Product Support

Frequently Asked Questions

Practical compatibility, application, installation, commissioning and ordering guidance for 6DS1223-8AA.

01

What does the 6DS1223-8AA N-AS module connect?

The N-AS module provides the TELEPERM M local-bus interface used to link automation or operator systems through CS 275 components.

02

What local-bus limits are stated in Siemens documentation?

The documented local-bus distance between devices is up to 20 m, with an earth-potential difference not exceeding 0.2 V.

03

How should the N-AS switches be set?

For the documented AS 235 H arrangement, Siemens specifies switches S11 and S12 ON when N-AS/N8-H is installed and OFF when it is absent.

04

What should be checked before installation?

Confirm cable type, connection distribution, end connector, grounding and the exact position shown in the cabinet documentation.

05

How is network operation verified after replacement?

Check local-bus diagnostics, participant communication, standard redundancy behavior and data exchange with the connected systems.

06

What information is needed for migration planning?

Record station addresses, local-bus participants, communication relationships, cable distances and required redundancy before conversion.

07

What should be stated when ordering 6DS1223-8AA?

Supply the exact N-AS order number, TELEPERM M system variant, mating cable/connector details, revision and quantity.
