SIEMENS · LOGO! Modular

6ED1055-1MB00-0BA1

Price and Availability Inquiry

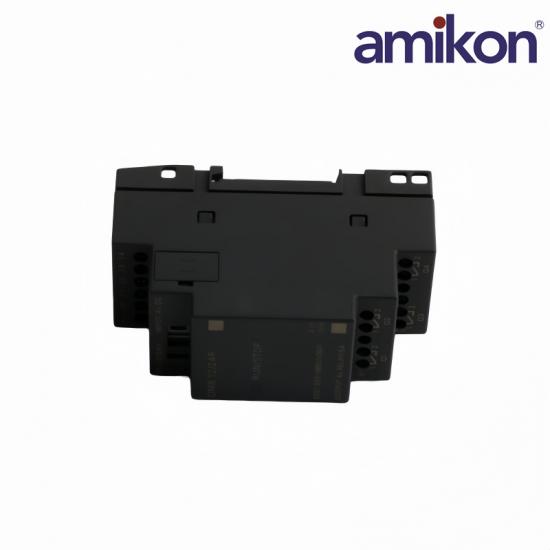

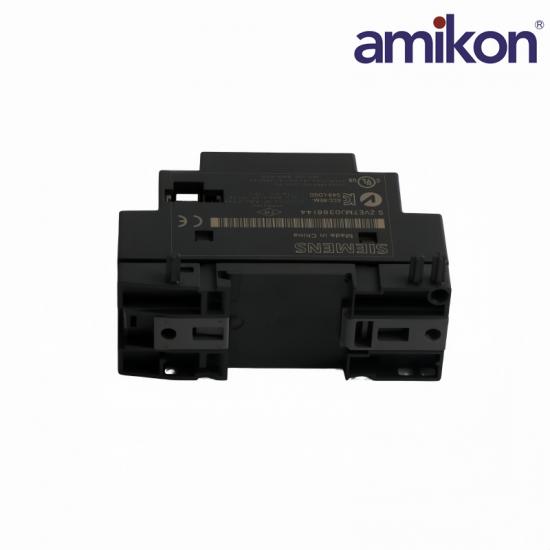

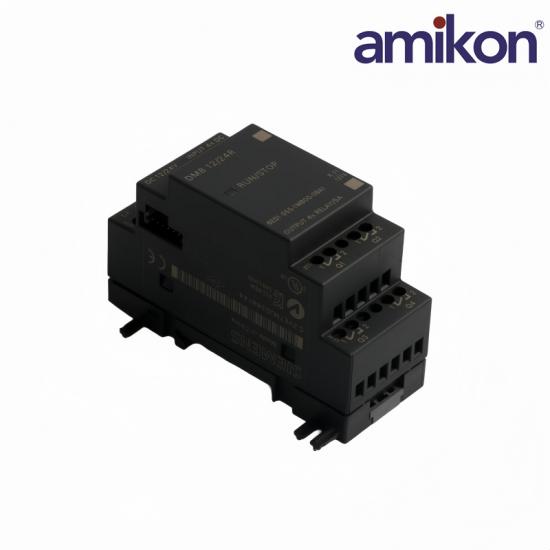

Siemens 6ED1055-1MB00-0BA1 is a LOGO! DM8 12/24R digital expansion module with four inputs and four relay outputs for 12 or 24 V DC systems.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation supportSend the model and required quantity directly to Lisa Lin.

Your AMIKON Contact

LLLisa LinSales Specialist

WhatsApp+86 18965423501

Emailsales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ED1055-1MB00-0BA1 and required quantity in your inquiry.

SIEMENS 6ED1055-1MB00-0BA1

Technical Specifications

Official Siemens supply, I/O, relay, mounting and environmental data for the LOGO! DM8 12/24R.

01Product IdentityExact Siemens reference

ManufacturerSiemens

Part Number6ED1055-1MB00-0BA1

Product DesignationLOGO! DM8 12/24R

System FamilyLOGO! Modular

02I/O DataPublished expansion data

Supply Voltage12 / 24 V DC

Digital Inputs4

Relay Outputs4

Relay Current5 A per output

03Switching DataPublished relay operation

Output TypePotential-free relay

Resistive / Lamp Frequency2 Hz maximum

Inductive Frequency0.5 Hz maximum

Mechanical Switching10 Hz maximum

04Installation DataOfficial module data

Mounting35 mm DIN rail or wall

Dimensions (W × H × D)36 × 90 × 55 mm

Operating Temperature0 to +55 °C

Degree of ProtectionIP20

Siemens 6ED1055-1MB00-0BA1 Product Support

Frequently Asked Questions

LOGO! generation compatibility, 12/24 V wiring, relay-load limits, expansion-bus installation, commissioning and ordering guidance for DM8 12/24R.

What I/O does 6ED1055-1MB00-0BA1 add?

It adds four digital inputs and four potential-free relay outputs to a compatible LOGO! base module.

Can it operate from either 12 V or 24 V DC?

Yes. The DM8 12/24R is intended for 12 or 24 V DC systems; all connected input references must follow the chosen supply.

What is the relay output rating?

Each relay output is rated up to 5 A, subject to the connected voltage, load category and switching-frequency limits.

How should inductive loads be connected?

Use appropriate suppression across coils and observe the 0.5 Hz maximum switching frequency stated for inductive loads.

Where is the module installed in a LOGO! system?

Mount it beside a compatible LOGO! base or expansion module on the DIN rail and engage the expansion-bus connector before applying power.

What should be checked if the expansion module is not detected?

Check LOGO! generation compatibility, supply polarity, expansion-bus seating, module order and the configured I/O mapping.

Which identification should appear on the order?

Use the full article 6ED1055-1MB00-0BA1 and confirm the DM8 12/24R voltage class and LOGO! hardware generation.
