Brand: Siemens

Product Number: 6EP1334-2BA0

Product Type: stabilized power supply

Input

Input: 1-phase AC

Supply Voltage / 1 / Nominal: 120 V AC

Supply Voltage / 2 / Nominal: 230 V AC

Voltage Range: Set by selector switch on device

Input Voltage / 1: 85 … 132 V AC

Input Voltage / 2: 170 … 264 V AC

Wide-range Input: No

Overvoltage Resistance: 2.3 × Vin rated, 1.3 ms

Mains Buffering at Iout rated: Minimum 20 ms

Mains Buffering at Vin = 93/187 V

Rated Line Frequency: 50 / 60 Hz

Output

Output Type: Controlled, isolated DC voltage

Rated Voltage Vout DC: 24 V

Total Tolerance, Static: ± 3 %

Static Mains Compensation: approx. 0.1 %

Static Load Balancing: approx. 0.5 %

Residual Ripple Peak-to-Peak, max.: 150 mV

Residual Ripple Peak-to-Peak, typical: 50 mV

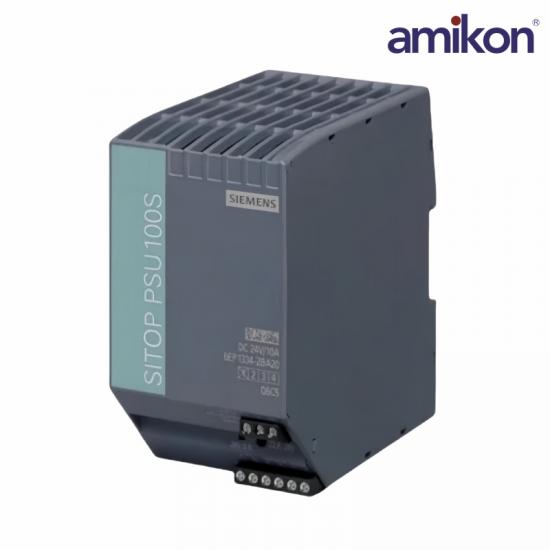

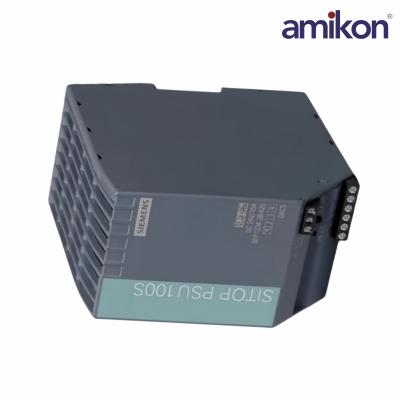

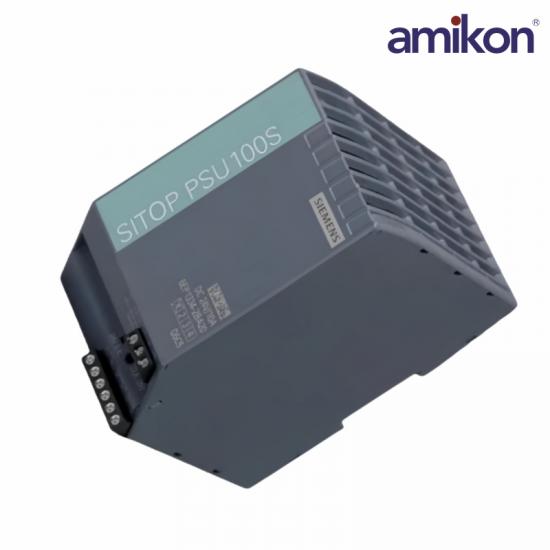

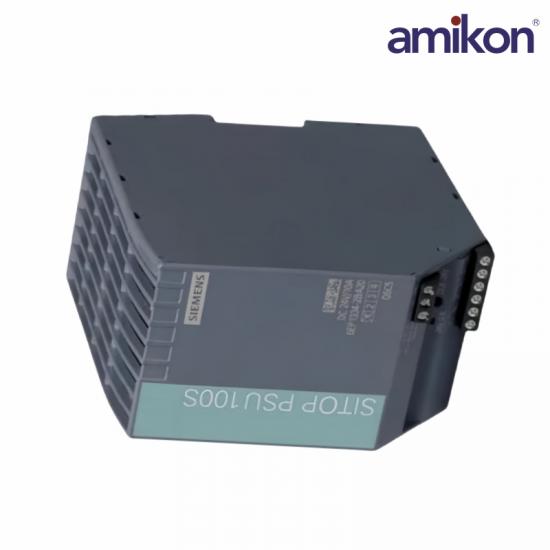

The SIEMENS 6EP1334-2BA0 is a stabilized power supply from the SITOP series, designed to deliver a reliable 24 V DC output at 10 A for industrial and control systems. It features a wide input voltage range of 120 V to 500 V AC, supporting both single-phase and two-phase connections. With high efficiency, excellent voltage stability, and low ripple, this power supply ensures consistent performance even under varying load conditions. Built for durability and safety, it complies with international standards and includes LED status indicators, overload protection, and the ability to operate in parallel for increased capacity or redundancy, making it ideal for demanding industrial environments.
