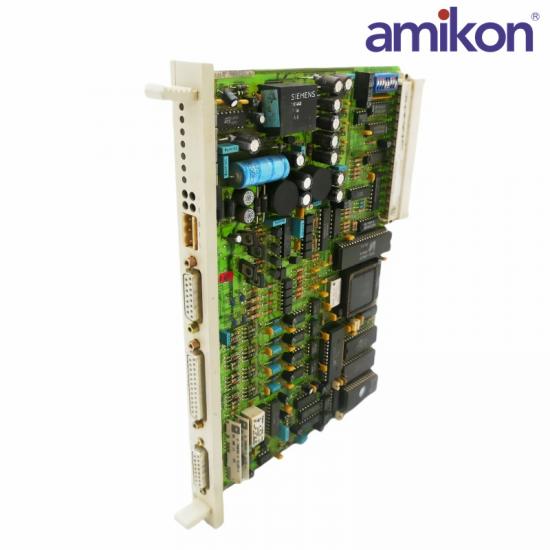

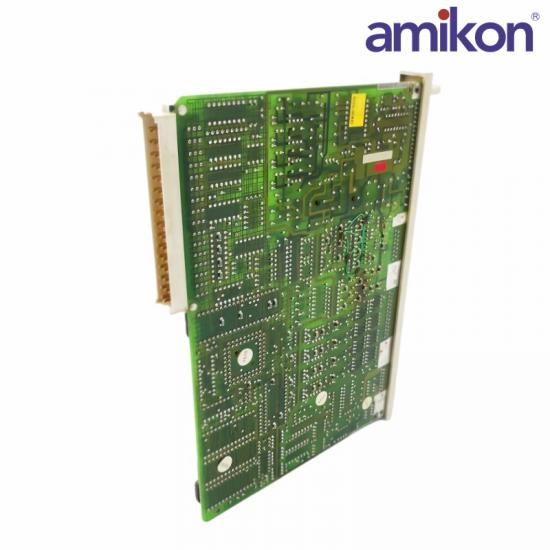

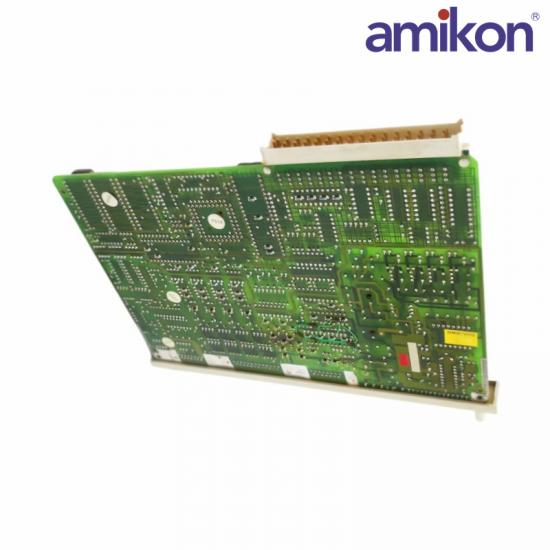

The SIEMENS 6ES5260-4UA11 Closed-Loop Control Module is a module designed for use in Siemens S5 PLC systems, specifically for closed-loop control applications.

It is part of the Siemens S5 series and is primarily used for controlling and regulating processes where feedback is essential to ensure stability and accuracy in the system.

Analog Input Channels: 4 or 8 input channels

Common input types include 0-10 V, 4-20 mA, or other analog signals from sensors.

Analog Output Channels: 4 output channels.

Operating Temperature: 0°C to +60°C.

Storage Temperature: -20°C to +70°C.

Power Consumption:5 W

Dimensions: 250 mm x 180 mm x 40 mm (L x W x H).

Weight:Approximately 0.6 kg.

The 6ES5260-4UA11 is a specialized control module used in closed-loop control applications. It is designed to handle both analog input and analog output signals, providing feedback to the system.

The 6ES5260-4UA11 module is part of Siemens' S5 PLC system and is typically used for advanced process control applications where the input and output data are constantly compared and adjusted.

This ensures the system remains in the desired operational state, compensating for any disturbances in the process.

The 6ES5260-4UA11 module is designed for closed-loop control, allowing continuous feedback from field devices such as sensors and transmitters to optimize system performance.
