Siemens SIMATIC S5-115U

6ES5945-7UA23

Price and Availability Inquiry

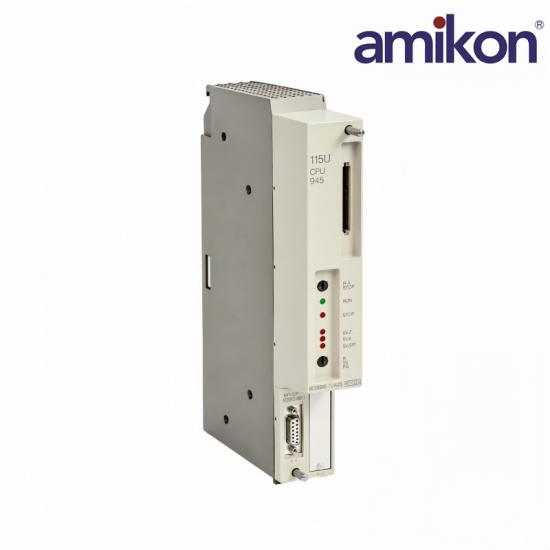

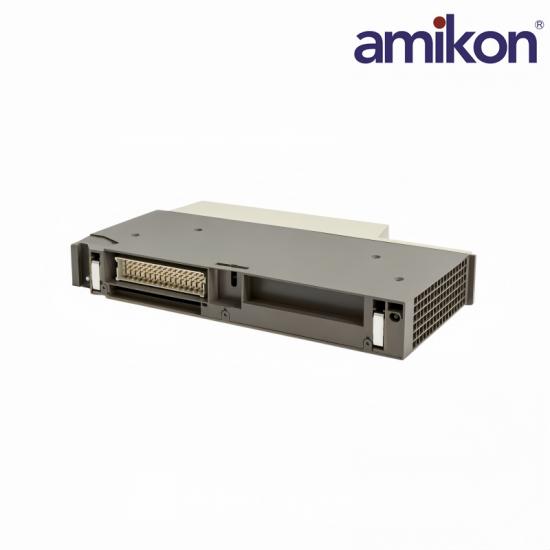

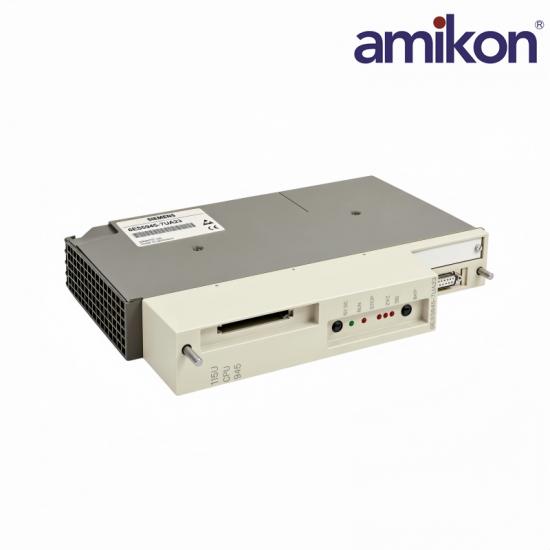

The Siemens 6ES5945-7UA23 is a CPU 945 central processing unit with 384 KB memory for SIMATIC S5-115U automation systems.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES5945-7UA23 and required quantity in your inquiry.

Siemens 6ES5945-7UA23

Technical Specifications

Siemens CPU 945 manual and catalog memory, performance, timing and interface data.

01Product IdentitySiemens product data

ManufacturerSiemens

Order number6ES5945-7UA23

CPU typeCPU 945

System familySIMATIC S5-115U

02CPU ResourcesSiemens catalog data

Program memory384 KB

Timers256

Counters256

Scan watchdog (default)500 ms

03Programming & InterfacesSiemens manual data

Bit operation time0.1 µs

PG interface15-pin

Optional interface slot1

Maximum block nesting50 levels

04Performance & PhysicalSiemens product data

Timed OB interval1–65535 ms

1000-instruction runtimeApprox. 100 µs

Front plate width20 mm

Net weight0.8 kg

Siemens 6ES5945-7UA23 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6ES5945-7UA23.

Which S5 rack is the CPU 945 intended for?

Use it in the SIMATIC S5-115U central-rack configuration documented for the installed controller.

Which CPU resources should be checked against the old program?

This 6ES5945-7UA23 variant has 384 KB memory; the current CPU record also lists 256 timers and 256 counters.

How should the STEP 5 project be secured before exchange?

Archive the complete STEP 5 program and configuration and record the installed CPU and memory-module identifiers.

Which interface connections need a before-and-after check?

Document the 15-pin PG port, any plug-in second interface, cable positions and communication parameters.

When can the CPU operate in a multiprocessor rack?

Only when the S5-115U rack and application are configured for the documented multiprocessor arrangement.

What proves a successful restart?

Confirm RUN/STOP and SYS FAULT indications, then test the required I/O and communications under the site commissioning procedure.

Can an S7 CPU replace it without engineering changes?

No. Siemens provides S5-to-S7 migration guidance, but program conversion, I/O mapping and application testing are required.
