Siemens SIMATIC S5-155U

6ES5948-3UA23

Price and Availability Inquiry

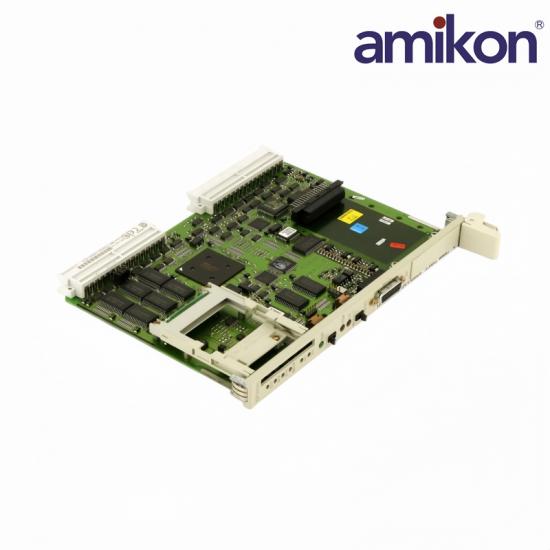

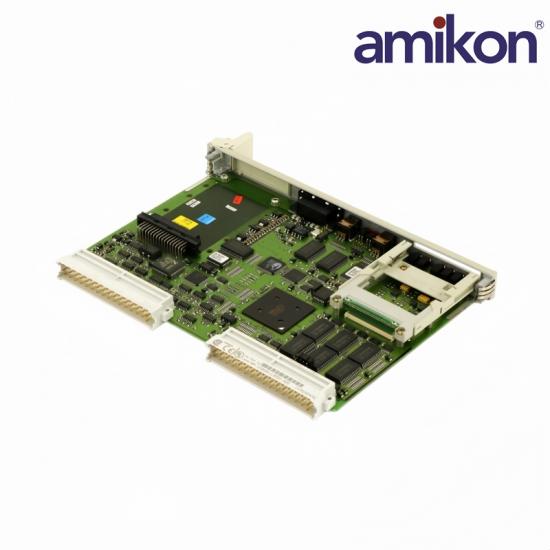

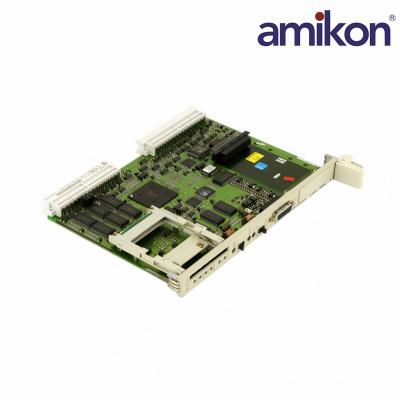

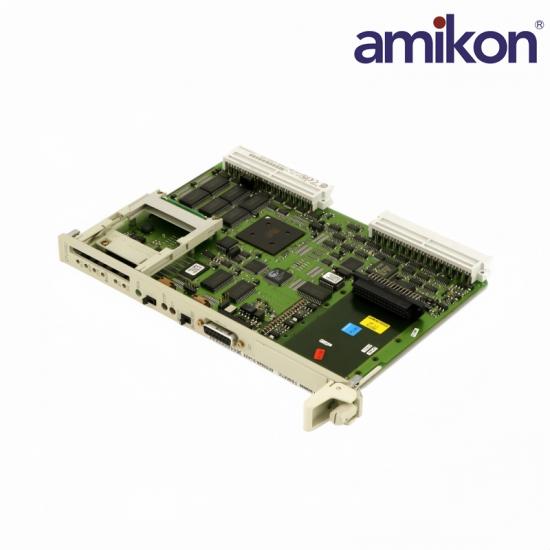

The Siemens 6ES5948-3UA23 is cPU 948 central processing unit for the SIMATIC S5-155U with 1664 KB internal RAM.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES5948-3UA23 and required quantity in your inquiry.

Siemens 6ES5948-3UA23 · CPU 948B

Technical Specifications

SIMATIC S5-135U / S5-155U System Manual C79000-G8576-C199-07.

01Product IdentitySiemens system manual

ManufacturerSiemens

Order Number6ES5948-3UA23

CPU TypeCPU 948B-2

Controller FamilySIMATIC S5-155U

02Electrical DataSiemens C79000-G8576-C199-07

Degree of ProtectionIP00

Supply Voltage 15 V ±5%

Supply Voltage 224 V +25% / −17%

Current Consumption1.5 A typical

03Memory & ResourcesSiemens C79000-G8576-C199-07

Internal User RAM1664 KB

Flags2048

S Flags32768

Timers / Counters256 / 256

04Interface & MechanicalSiemens C79000-G8576-C199-07

PG Interface Rate9600 bit/s

Optional InterfaceV.24 / TTY / RS422A/485

Dimensions (W × H × D)20.32 × 233.4 × 160 mm

WeightApprox. 0.6 kg

Siemens 6ES5948-3UA23 Product Support

Frequently Asked Questions

S5-155U compatibility, memory, interfaces, multiprocessor configuration, migration and ordering guidance for 6ES5948-3UA23.

Which SIMATIC rack family accepts this CPU 948B-2?

6ES5948-3UA23 is documented for the SIMATIC S5-155U central controller and supports single-CPU or multiprocessor operation in the compatible central rack.

How much internal memory is available for the S5 program?

The CPU 948B-2 provides 1,664 KB internal RAM; external program storage uses the compatible Memory Card 374 with Flash EPROM.

Which supply rails and current demand must be checked?

The module uses the S5 rack supplies specified as 5 V ±5% and 24 V +25%/−17%, with approximately 1.5 A typical current demand from the 5 V rail.

How is a programming device connected for commissioning?

The integrated SI1 PG interface is a 15-pin serial interface operating at 9,600 bit/s. Use the correct Siemens cable and online settings for the S5 CPU.

Which communication options can be added at the second interface?

SI2 accepts the designated plug-in interface module for V.24, TTY, RS422A/485 or SINEC L1/PG functions, depending on the installed submodule.

How should a multiprocessor replacement be prepared?

Back up the program and memory card, record rack slot and CPU coordination settings, verify all partner CPUs, then compare online blocks and startup diagnostics after replacement.

Which identification data are needed for an S5 migration review?

Provide 6ES5948-3UA23, CPU 948B-2 label, rack type, memory-card reference, SI2 submodule, STEP 5 backup status, multiprocessor layout and quantity.
