Description：

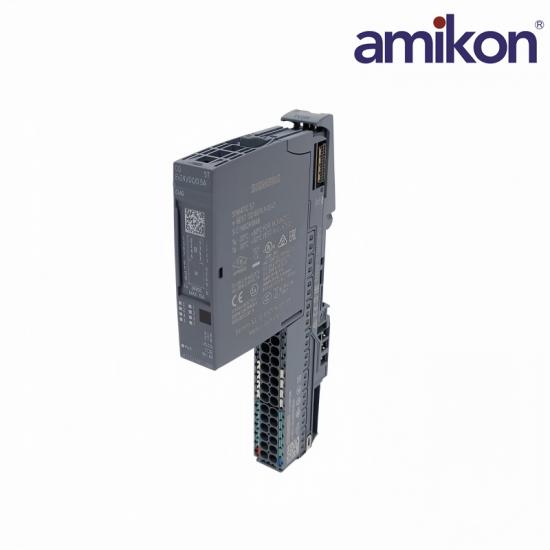

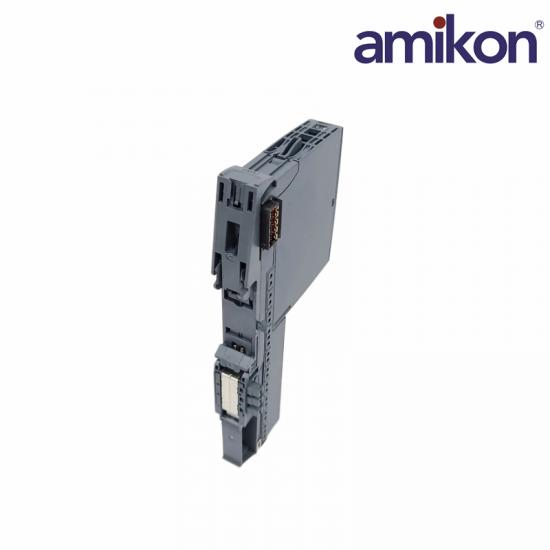

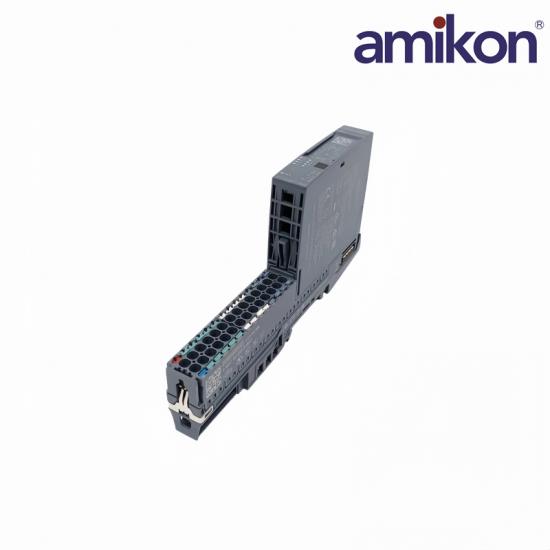

The 6ES7132-6BF01-0BA0 digital output module from Siemens is designed to enhance the performance of I/O systems. It operates efficiently at a rated supply voltage of 24 V, with an allowable voltage range stretching from 19.2 to 28.8 V. The device consumes a current of 35 mA, yielding a power loss of just 1 W, which makes it energetically efficient for typical applications.

This module incorporates 8 digital outputs, with each output capable of delivering up to 0.5 A. It supports a maximum total current of 4 A across all outputs. The load resistance is rated at 48 Ohm, which is essential for managing connected loads effectively. The module can handle a cable length of 1000 m, ensuring versatility in installation configurations.

Specification：

Frequently asked questions

Q1: What is the Siemens 6ES7132-6BF01-0BA0 used for?

A: The 6ES7132-6BF01-0BA0 is a Digital Output Module used in Siemens distributed I/O systems.

Q2: What is the rated supply voltage of the 6ES7132-6BF01-0BA0?

A: The 6ES7132-6BF01-0BA0 module operates with a rated supply voltage of 24 VDC, which is the standard voltage level used in most industrial systems.

Q3: What is the permissible voltage range for the 6ES7132-6BF01-0BA0 module?

A: The 6ES7132-6BF01-0BA0 module supports a permissible voltage range of 19.2 VDC to 28.8 VDC, allowing reliable operation even when minor power supply fluctuations occur.

Q4: What is the maximum cable length supported by the 6ES7132-6BF01-0BA0 module?

A: The 6ES7132-6BF01-0BA0 supports a maximum cable length of 1000 meters, providing flexibility for installations where field devices are located far from the control cabinet.

Product Applications

Automotive manufacturing and assembly plants: Used in body welding workshops, painting lines, and assembly robot arm control cabinets to control cylinder solenoid valves, field indicator lights, and pneumatic island switches.

Food, beverage, and pharmaceutical plants: Applied to filling machines, packaging machines, and dispensing systems, remotely receiving PLC commands within a sealed control cabinet to control cutter valves, conveyor belt forks, and buzzers.

Semiconductor and electronics manufacturing plants: Suitable for various machines in cleanrooms, peripherals of chip mounters, and wafer handling systems (AMHS), utilizing its miniature size to significantly save internal cabinet space.

Water treatment and environmental protection plants: Used in pump stations, dosing systems, and filter backwashing control cabinets to remotely control the opening and closing of pneumatic ball valves and electric valves, and to provide on-site alarm status indications.
