Supply Voltage: 24 V DC

Value at t < 0.5 s: 35 V

Permissible range: 18.5–30.2 V

Typical (logic, from L5+): 85 mA

Maximum (sensor, from L5+): 1000 mA

I²t (starting current inrush): 0.05 A²·s

Maximum: 5.5 W

Number of inputs: 24

Rated Input Voltage: 24 V DC

Signal "0" voltage range: –30 V to +5 V

Signal "1" voltage range: 13 V to 30 V

Input Current for signal "1": typical 4 mA (minimum 2 mA at 24 V)

Rated Value (DC): 24 V

Signal Levels:

"0" (max, idling): 2 V

"1" (min, UE –3 V)

Switching Frequency:

Resistive load: max 1000 Hz

Inductive load: max 0.5 Hz

Lamp load: max 8 Hz

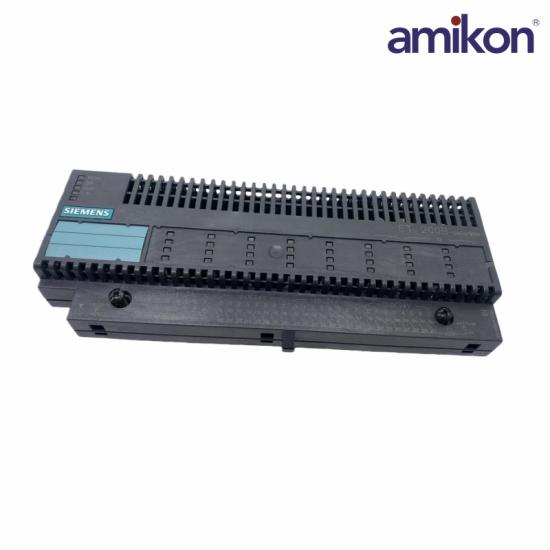

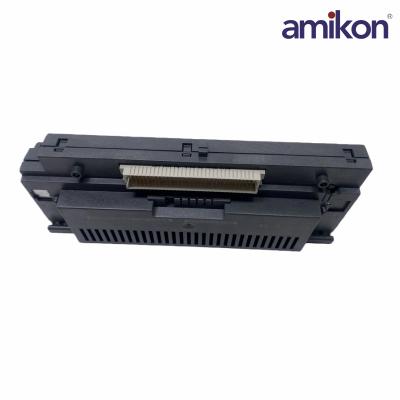

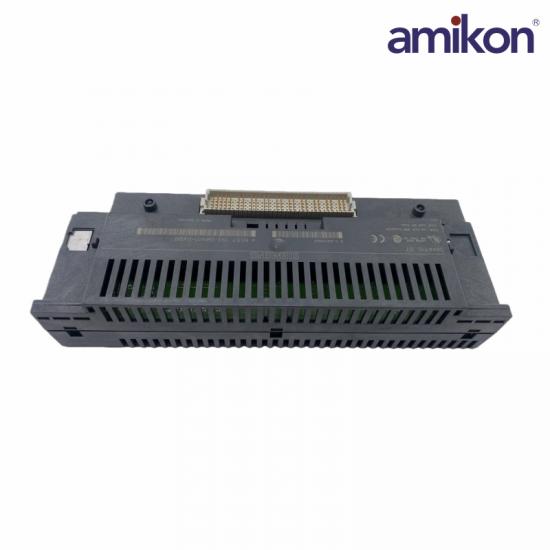

The SIEMENS 6ES7133-0BN01-0XB0 Digital Electronic Module is engineered for industrial applications requiring robust, reliable data processing and control functionality.  This compact module seamlessly integrates into a wide range of systems, offering precise control over various processes.

Featuring high-speed communication protocols such as Profinet and EtherCAT, this 6ES7133-0BN01-0XB0 module ensures efficient data exchange between different components of an industrial system.  It supports up to 16 digital inputs and outputs, making it suitable for complex tasks that demand high precision and reliability.

Equipped with advanced protection features and operating within a temperature range from -25°C to +60°C, this 6ES7133-0BN01-0XB0 module is designed to withstand harsh industrial environments.  Its IP20 protection class safeguards against dust and light splashes, ensuring uninterrupted operation even under challenging conditions.
