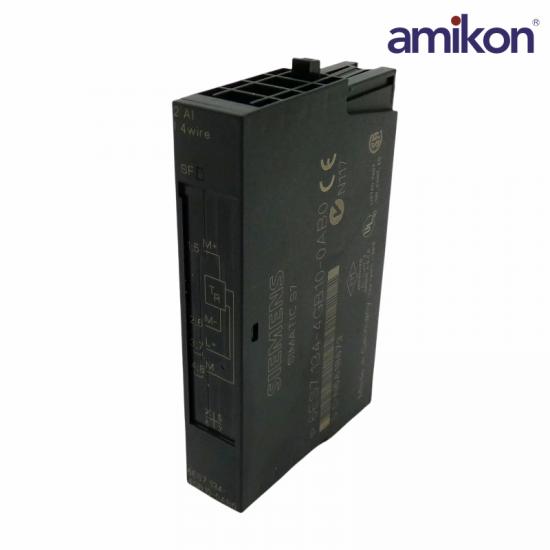

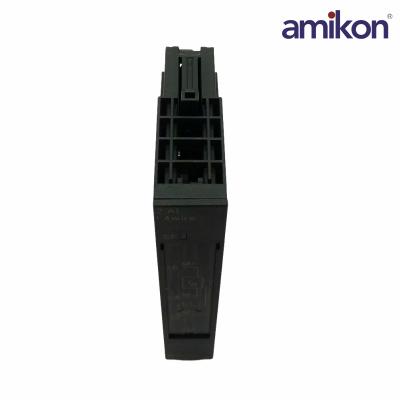

Brand: Siemens

Product No.: 6ES7134-4GB10-0AB0

Category: Electronics module

Function: Analog input module for distributed I/O

Number of Analog Inputs: 4

Permissible Input Voltage (Destruction Limit): 10 V (permanent)

Linearity Error (relative to input range, ±): 0.01 %

Temperature Error (relative to input range, ±): 0.005 %/K

Crosstalk Between Inputs (min.): –50 dB

Repeat Accuracy in Steady State at 25 °C (relative to input range, ±): 0.05 %

Supply Voltage – Load Voltage L+ (Rated, DC): 24 V DC (from power module)

Reverse Polarity Protection: Yes

Input Current from Load Voltage L+ (without load, max.): 30 mA

Input Current from Backplane Bus (3.3 V DC, max.): 10 mA

Power Loss (Typical): 0.6 W

Address Space per Module (Max.): 4 byte

Mounting Type: DIN rail mounting in ET 200S rack

Operating Temperature Range: 0 °C to 60 °C

Storage Temperature Range: –40 °C to 70 °C

The Siemens 6ES7134-4GB10-0AB0 is a versatile electronic module from the SIMATIC ET 200S series, designed for precise analog signal processing in industrial systems. It provides multiple analog input channels with configurable voltage or current measurement ranges, offering flexibility for various process monitoring applications. With robust short-circuit protection, high accuracy, and low power loss, the module ensures reliable operation even in demanding environments. Its compact form factor and DIN rail compatibility make it easy to integrate into ET 200S distributed I/O stations connected to SIMATIC S7 controllers.
