Type:Electronics Module

Model Number:6ES7134-4JB00-0AB0

Linearity error (relative to input range), (+/-): 0.01 %

Temperature error (relative to input range), (+/-): 0.005 %/K

Crosstalk between the inputs, min.: -50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-): 0.05 %

Supply voltage - Load voltage L+ (Rated, DC): 24 V; From power module

Reverse polarity protection: Yes

Input current from load voltage L+ (without load), max.: 30 mA

Input current from backplane bus 3.3 V DC, max.: 10 mA

Power loss (Typical): 0.6 W

Address area - Address space per module (Max.): 4 byte

Analog inputs - Number of analog inputs: 2

Permissible input voltage for voltage input (destruction limit), max.: 10 V; Permanent

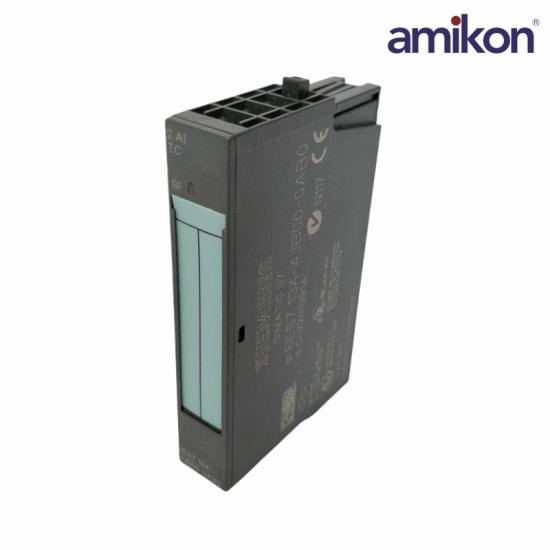

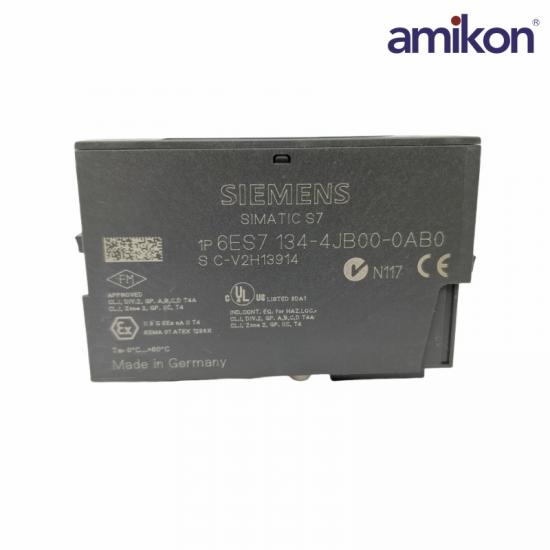

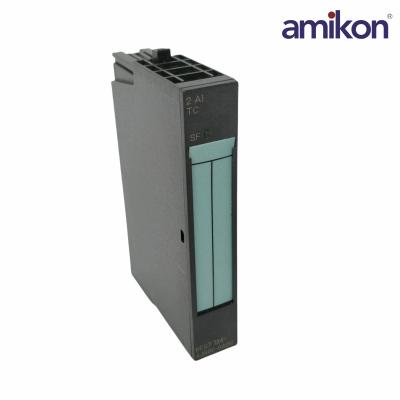

The Siemens 6ES7134-4JB00-0AB0 is a high-precision electronics module from the SIMATIC ET 200S series, designed for processing analog input signals in industrial systems. It features two analog input channels with exceptional accuracy, low linearity error, and robust protection against voltage overloads. Its compact size, low power consumption, and integration with the ET 200S distributed I/O system make it ideal for monitoring and controlling process variables such as temperature, pressure, and flow. This module is engineered for long-term stability and reliable operation in demanding industrial environments.
