Description：

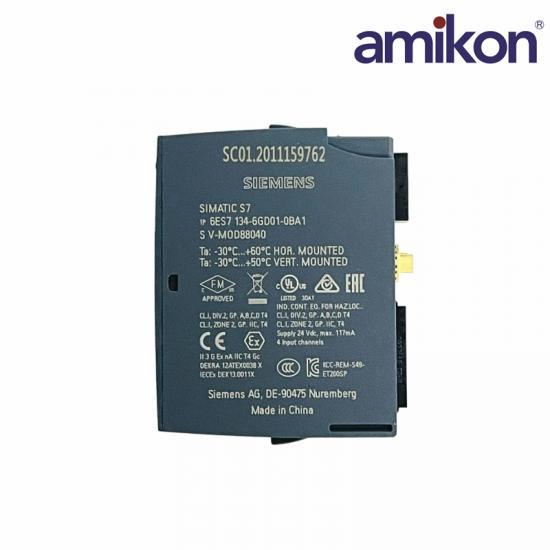

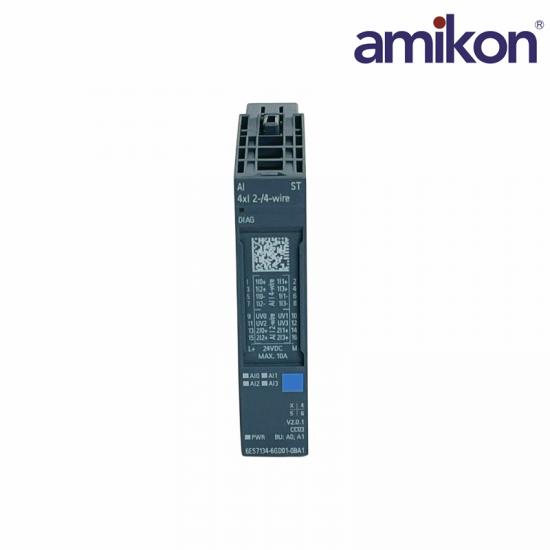

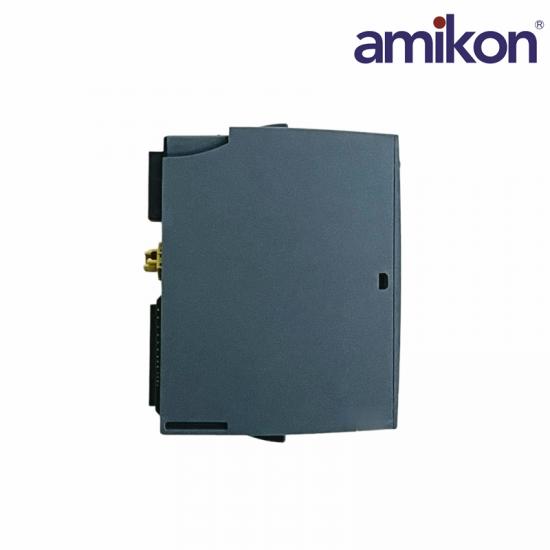

The Siemens 6ES7134-6GD01-0BA1 is a high-performance analog input module used in SIMATIC ET 200SP distributed I/O systems. It provides precise analog signal acquisition with up to 16-bit resolution, ensuring accurate process monitoring and control. Operating from a 24 V DC supply, the module offers excellent noise immunity with a common-mode rejection ratio of at least 90 dB, making it suitable for demanding industrial environments. Its compact design, low power loss, and reliable signal processing capabilities make it an ideal choice for process control, manufacturing, and industrial monitoring applications.

Specification：

Frequently asked questions

Q1: What is the Siemens 6ES7134-6GD01-0BA1 Analog Input Module used for?

A1: The Siemens 6ES7134-6GD01-0BA1 Analog Input Module is designed to acquire and process analog signals from field devices such as transmitters, sensors, and measuring instruments.

Q2: What is the rated DC supply voltage of the 6ES7134-6GD01-0BA1 module?

A2: The 6ES7134-6GD01-0BA1 module operates with a rated DC supply voltage of 24 V, providing reliable performance in standard industrial systems.

Q3: What is the 6ES7134-6GD01-0BA1 maximum permissible DC supply voltage?

A3: The 6ES7134-6GD01-0BA1 maximum permissible upper DC voltage limit is 28.8 V, allowing the module to tolerate normal industrial power supply variations.

Q4: What is the 6ES7134-6GD01-0BA1 maximum current consumption?

A4: The 6ES7134-6GD01-0BA1 module has a maximum current consumption of 37 mA, contributing to efficient power utilization within the control system.

Product Applications

Water treatment and wastewater treatment plants: Used to monitor pipeline flow, pool levels, water pH, and filter pressure.

Chemical and petrochemical plants: Used for real-time acquisition of reactor temperature (with transmitters), pipeline pressure, toxic gas concentration, and storage tank levels.

Metallurgical and steel plants: Used to monitor blast furnace cooling water flow, heating furnace pressure, and pressure monitoring of various hydraulic systems.

Power and generator control plants: Used to monitor steam pipeline pressure, feedwater flow, and turbine bearing temperature transmitter signals.

Food, beverage, and pharmaceutical plants: Used for inputting batching and weighing sensor signals, monitoring sterilization kettle pressure, and acquiring cleanroom temperature and humidity data.

Automotive manufacturing and machining plants: Used for monitoring air pressure in painting workshops, monitoring centralized lubrication system pressure, and acquiring hydraulic station status data.
