Siemens SIMATIC ET 200iSP

6ES7138-7FD00-0AB0

Price and Availability Inquiry

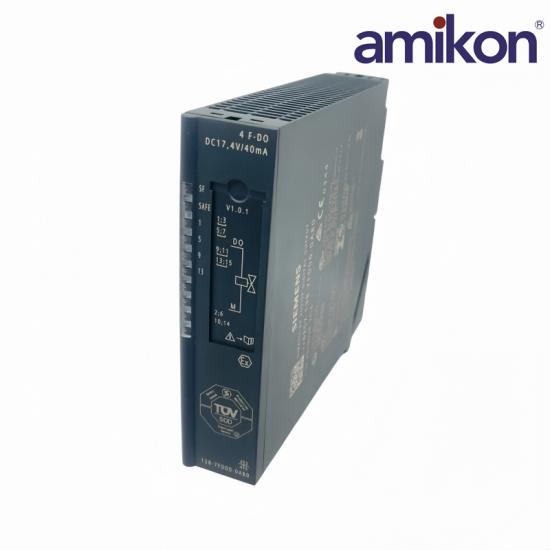

Fail-safe ET 200iSP electronic module with four intrinsically safe transistor outputs rated 17.4 V DC / 40 mA per channel.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7138-7FD00-0AB0 and required quantity in your inquiry.

Siemens 6ES7138-7FD00-0AB0

Technical Specifications

Siemens published technical data for 6ES7138-7FD00-0AB0.

01Product Identity

ManufacturerSiemens

Article Number6ES7138-7FD00-0AB0

Designation4F-DQ Ex(i)

System FamilySIMATIC ET 200iSP

02Output Ratings

Fail-Safe Outputs4 transistor outputs

No-Load Voltage17.4 V DC

Output Current40 mA max. per output

Internal Resistance167 Ω

03Safety & Diagnostics

Safety IntegrityUp to SIL 3 (IEC 61508)

Performance LevelUp to PL e (ISO 13849-1)

Load Resistance Range270 Ω–18 kΩ

Characteristic Voltage Ue10.7 V DC

04Physical & Integration

Current Consumption340 mA typical

Dimensions30 × 129 × 136.5 mm

Approximate Weight285 g

Power Loss, Max.5.3 W

Siemens 6ES7138-7FD00-0AB0 Product Support

Frequently Asked Questions

Product-specific configuration, application and ordering guidance for 6ES7138-7FD00-0AB0

How many fail-safe outputs are provided?

Four transistor outputs are available on this 4F-DQ Ex(i) module.

Which output rating applies to a channel?

The published module rating is 17.4 V DC no-load and 40 mA maximum output current.

Which safety level can the module support?

Siemens lists up to SIL 3 and PL e when integrated and configured as specified for the safety application.

Is this a standard ET 200iSP digital output module?

No. This exact 6ES7138-7FD00-0AB0 article is a fail-safe 4F-DQ Ex(i) module.

How is a short circuit handled?

The outputs have short-circuit protection; check parameterization and diagnostic messages in the installed project.

Which station details matter during replacement?

Record the ET 200iSP station configuration, safety parameters, terminal assignment and complete article number.

Which part number should be ordered?

Order 6ES7138-7FD00-0AB0 and verify the installed Ex and safety configuration.
