Siemens SIMATIC ET 200

6ES7157-0AG83-0XA0

Price and Availability Inquiry

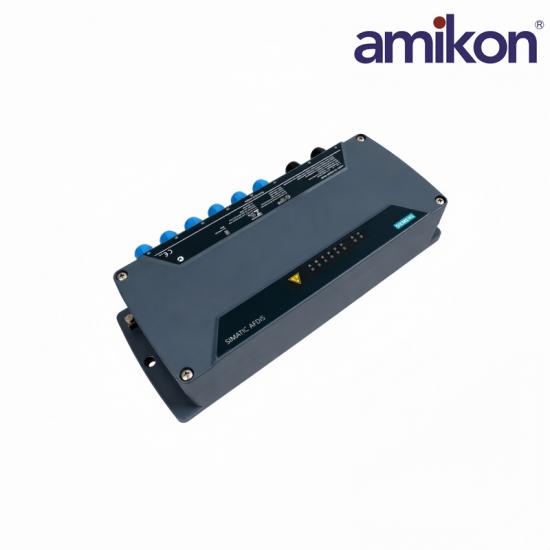

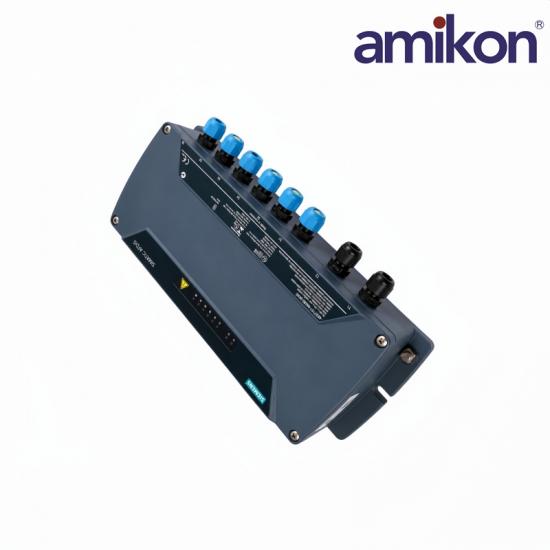

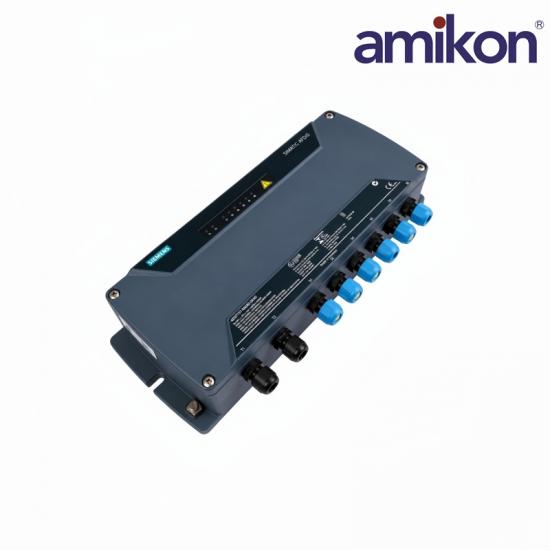

The Siemens 6ES7157-0AG83-0XA0 is a AFDiS Active Field Distributor in the SIMATIC ET 200 family, with 6 intrinsically safe spurs; PROFIBUS PA / FF H1; 16 to 32 V DC; IP66.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7157-0AG83-0XA0 and required quantity in your inquiry.

Siemens 6ES7157-0AG83-0XA0

Technical Specifications

Official identification, interface, electrical, performance and environmental data for this AFDiS Active Field Distributor.

01Product IdentityOfficial Siemens fieldbus data

ManufacturerSiemens

Order Number6ES7157-0AG83-0XA0

Product TypeAFDiS Active Field Distributor

System FamilySIMATIC ET 200

02Fieldbus PortsMain-line and spur data

Main Connections2

Intrinsically Safe Spurs6

Bus Transmission Rate31.25 kbit/s

S1 Subsegment Length500 m maximum

03Supply & Spur CurrentElectrical ratings

Supply Voltage16 to 32 V DC

Input Current400 mA maximum at 20 V

Total Field-Device Current180 mA maximum

Spur Current60 mA on spur 1; 40 mA on spurs 2–6

04Physical & IsolationEnclosure data

Degree of ProtectionIP66

Dimensions380 × 85 × 170 mm

WeightApprox. 4.5 kg

Isolation Test2550 V DC for 2 s

Siemens 6ES7157-0AG83-0XA0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6ES7157-0AG83-0XA0.

Which fieldbus systems can connect through the 6ES7157-0AG83-0XA0?

The AFDiS supports PROFIBUS PA and FOUNDATION Fieldbus H1 installations when wired and engineered according to the applicable segment rules.

How many trunk and spur connections does the AFDiS provide?

It provides two main-bus connections and six intrinsically safe, short-circuit-proof spur connections for field devices.

How much supply and field-device current should be budgeted?

Use 16 to 32 V DC; the documented maximum input is 400 mA at 20 V, while the total available field-device current is 180 mA.

How are the six spur-current limits distributed?

Spur 1 supports up to 60 mA, and spurs 2 through 6 support up to 40 mA each, subject to the total segment-current limit.

How does the AFDiS support segment continuity?

The unit includes repeater functionality and automatic bus termination; confirm trunk polarity and termination status before energizing the segment.

Which installation checks protect the IP66 and isolation ratings?

Use approved cable glands, maintain enclosure seals, bond and ground as specified, and preserve the documented 2550 V DC isolation arrangement.

Which details must be confirmed before ordering this field distributor?

Match the complete code 6ES7157-0AG83-0XA0, six-spur AFDiS configuration, supported bus system, enclosure requirements, and hazardous-area approval required by the project.
