Siemens SIMATIC S7-200

6ES7214-1AD23-0XB0

Price and Availability Inquiry

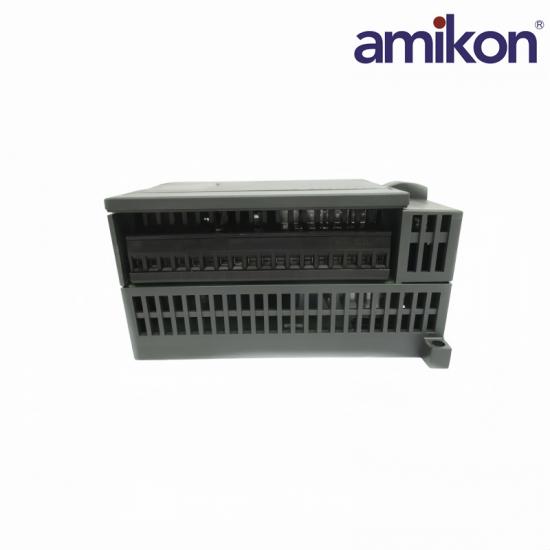

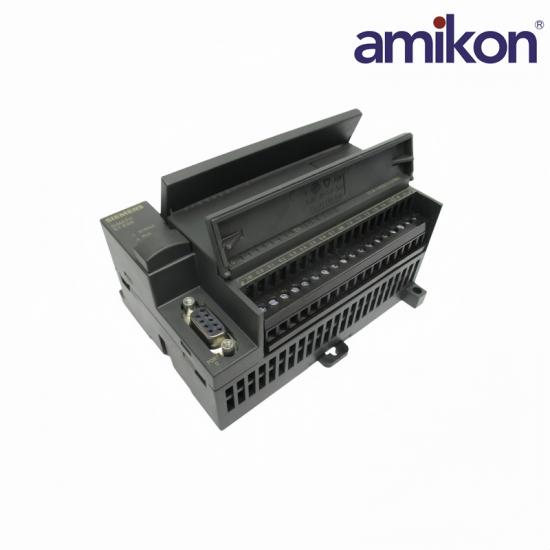

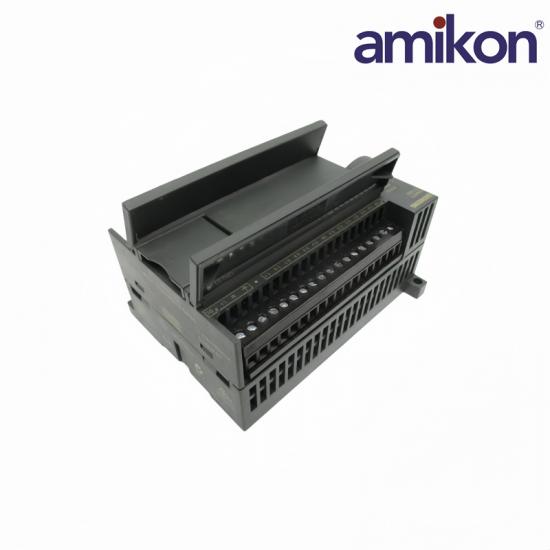

The Siemens 6ES7214-1AD23-0XB0 is a Compact PLC CPU designed for SIMATIC S7-200 applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7214-1AD23-0XB0 and required quantity in your inquiry.

Siemens 6ES7214-1AD23-0XB0

Technical Specifications

Official CPU 224 I/O, memory, interface and mechanical data.

01Product IdentityOfficial controller data

ManufacturerSiemens

Article Number6ES7214-1AD23-0XB0

Product DesignationCPU 224

Product FamilySIMATIC S7-200

02Integrated I/OOfficial CPU 224 datasheet

Supply Voltage24 V DC

Digital Inputs14

Digital Outputs10 transistor

Power LossTyp. 7 W

03Memory & InterfaceOfficial CPU 224 datasheet

Program Memory8 / 12 KB

Data Memory8 KB

Integrated InterfaceRS-485

PPI Data Rates9.6 / 19.2 / 187.5 kbit/s

04Mechanical DataOfficial CPU 224 datasheet

Width120.5 mm

Height80 mm

Depth62 mm

Analog Potentiometers2, 8-bit resolution

Siemens 6ES7214-1AD23-0XB0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6ES7214-1AD23-0XB0.

Which machine-control applications suit this CPU 224?

The compact CPU is intended for S7-200 control tasks that can use its onboard 14 digital inputs and 10 transistor digital outputs, with expansion added when the local I/O is insufficient.

What must the field wiring match on this DC transistor version?

Use the specified 24 V DC supply and verify the transistor-output load groups, L+ and M references, output current limits and protective devices against the S7-200 wiring diagram.

How can a CPU 224 station be expanded for communication?

The article is PROFIBUS DP expandable. Select the supported S7-200 communication module and confirm its position, addressing and bus configuration in the project.

Which software and operating mode are used for commissioning?

Use STEP 7-Micro/WIN with the project set to CPU 224. A download can require STOP mode, while the hardware mode switch must permit the requested STOP or RUN transition.

What should be backed up before changing the CPU?

Upload and archive the user program, data, CPU configuration and communication settings where access protection permits, and record the installed expansion-module order.

What requires review when migrating an S7-200 application?

Revalidate instruction behavior, memory areas, timers and counters, I/O addresses, expansion modules and communication links; a later controller family is not a direct program-and-wire swap.

How should 6ES7214-1AD23-0XB0 be specified on an order?

Use the complete article number and identify the DC supply and transistor-output CPU 224 variant, installed memory or communication options, firmware level and required condition.
