Description：

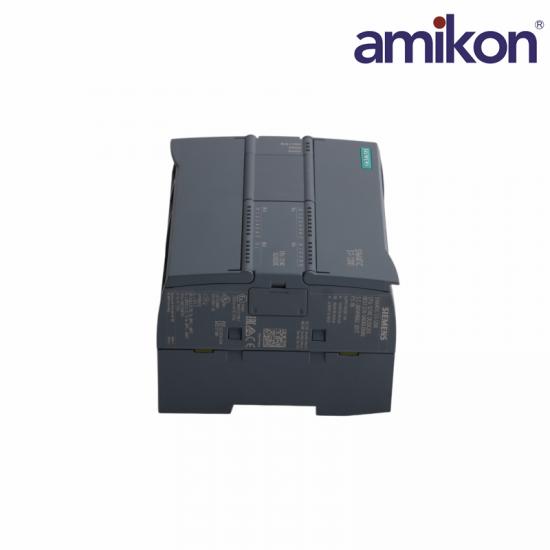

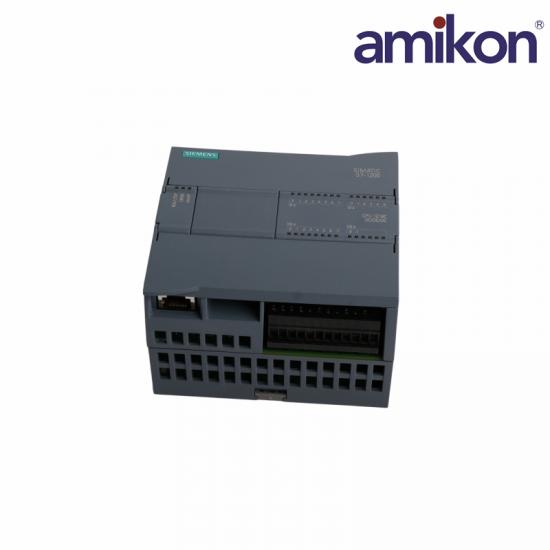

The 6ES7214-1AG40-0XB0 part of Siemens' SIMATIC series functions as a CPU module designed for various responsibilities. With a work memory capacity of 150 kbytes and load memory of 4 Mbytes, it provides sufficient processing power for advanced tasks.

This CPU module includes a feature that accepts a SIMATIC memory card for enhanced storage options. Its backup system does not rely on batteries, ensuring functionality even during power interruptions. This unit is designed with a rated voltage of 24 V DC, making it versatile in operations.

Power efficiency is essential, as this component demonstrates a power loss of only 12 W and operates at a rating of 500 mA for continuous current. The module can handle an inrush current of up to 12 A, demonstrating its capability to manage transient loads effectively. Overall, the 6ES7214-1AG40-0XB0 offers performance and reliability suitable for the demanding needs of applications.

Specification：

Frequently asked questions

Q1: What is the Siemens 6ES7214-1AG40-0XB0 Version 4.2 CPU Module used for?

A1: The Siemens 6ES7214-1AG40-0XB0 CPU Module is a SIMATIC S7-1200 programmable logic controller (PLC) designed for machine , process control, data acquisition, and communication tasks in industrial applications.

Q2: How much work memory does the 6ES7214-1AG40-0XB0 CPU provide?

A2: The 6ES7214-1AG40-0XB0 CPU features 150 kB of work memory, allowing efficient execution of user programs and processing of tasks.

Q3: What is the load memory capacity of the 6ES7214-1AG40-0XB0 module?

A3: The 6ES7214-1AG40-0XB0 module provides 4 MB of load memory, which stores user programs, configuration data, and project information.

Q4: What is the rated operating voltage of the 6ES7214-1AG40-0XB0 CPU?

A4: The CPU operates with a rated voltage of 24 VDC, which is standard for Siemens S7-1200 systems.

Q5: What is the power loss of the 6ES7214-1AG40-0XB0 CPU module?

A5: The typical power loss is 12 W, which should be considered when designing control cabinet cooling and power requirements.

Product Applications

Mechanical Manufacturing and Packaging: Used in various small and medium-sized packaging machinery, labeling machines, filling machines, and textile machinery to achieve precise speed and position control.

Food and Beverage: In conjunction with standardized hygiene sensors, used for material conveying, sorting, temperature and humidity monitoring, and basic ingredient control.

Water Treatment and Environmental Protection: Integrated into pump station control cabinets, sewage treatment flow monitoring, valve opening regulation, and pressure control systems.

Intelligent Warehousing and Logistics: Controls the positioning of small conveyor belt systems, AGV (Automated Guided Vehicle) docking stations, and sorting pallets.
