Description：

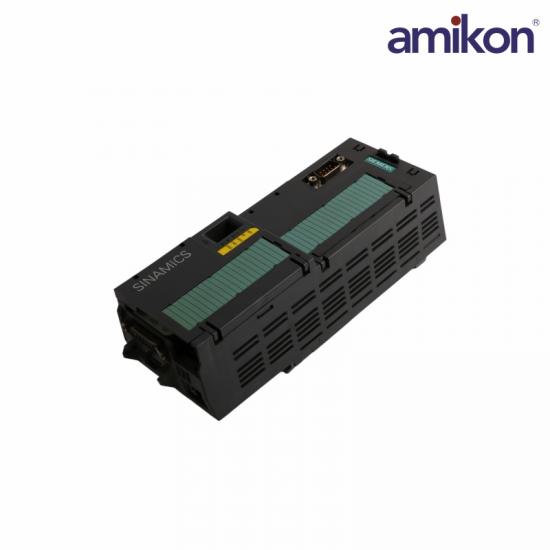

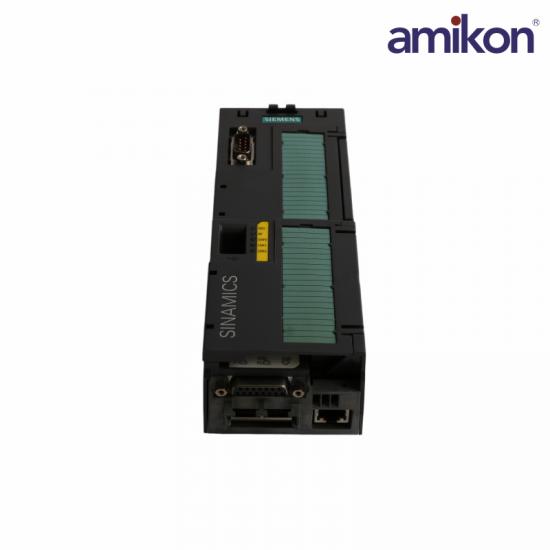

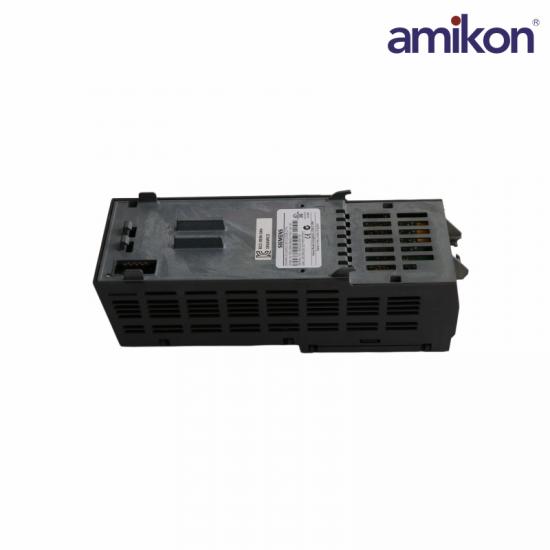

The 6SL3246-0BA22-1FA0 controller from Siemens is categorized as a power controller within the SINAMICS series. This model offers an operating voltage of 24V DC and features robust connectivity options that support both Profinet and Ethernet/IP protocols, thereby enhancing its integration into various networked environments. Equipped with 15 digital inputs, it enables flexible input configurations to accommodate diverse system requirements.

Designed with an IP20 rating, this device is suitable for indoor installations where environmental factors are controlled. It is engineered to function optimally within an operating temperature range of 0 °C to 40 °C. When it comes to storage, the device can withstand temperatures between -40 and 70 degrees Celsius, thereby ensuring reliability during transportation and storage. Additionally, the maximum permissible humidity for operation is 80% RH (non-condensing), which should be considered for maintaining device integrity.

Specification：

Frequently asked questions

Q1: What is the Siemens 6SL3246-0BA22-1FA0 Version 4.6 Power Controller used for?

A1: The Siemens 6SL3246-0BA22-1FA0 Power Controller is a control unit used in Siemens drive systems to manage motor operation, process control functions, communication, and system diagnostics in industrial applications.

Q2: What supply voltage is required for the 6SL3246-0BA22-1FA0 controller?

A2: The 6SL3246-0BA22-1FA0 controller operates with a 24 VDC supply voltage, ensuring compatibility with standard industrial control power systems.

Q3: What is the operating temperature range of the 6SL3246-0BA22-1FA0 controller?

A3: The 6SL3246-0BA22-1FA0 operating temperature range is 0°C to +40°C (32°F to +104°F), providing reliable performance under normal industrial conditions.

Q4: How many digital inputs are available on the 6SL3246-0BA22-1FA0 controller?

A4: The 6SL3246-0BA22-1FA0 includes 15 digital inputs, allowing connection of switches, sensors, interlocks, and other digital control signals.

Product Applications

Material handling and conveying systems: such as port cranes and airport baggage sorting lines, supporting precise load distribution and speed synchronization between master and slave machines.

Packaging and printing machinery: Built-in basic positioner (EPos) function enables high-precision absolute/relative positioning and multi-point position control.

Process industries (pumps, fans, compressors): Provides dedicated energy-saving operation modes, multi-pump control functions, and pipeline burst protection, widely used in petrochemical, water treatment, and HVAC industries.

Textile and cable machinery: Supports closed-loop speed control and complex tension control, ensuring constant winding and unwinding accuracy.

Food and beverage industry: Supports various high-dynamic response and stringent safety integrations (STO, SS1, SLS, etc.), ensuring the safety of personnel and machinery.
