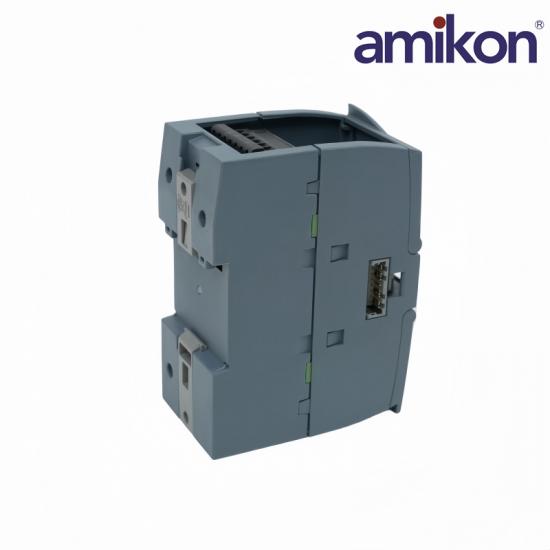

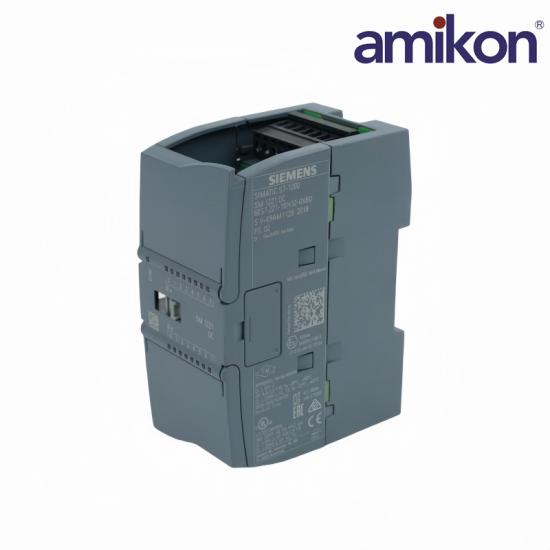

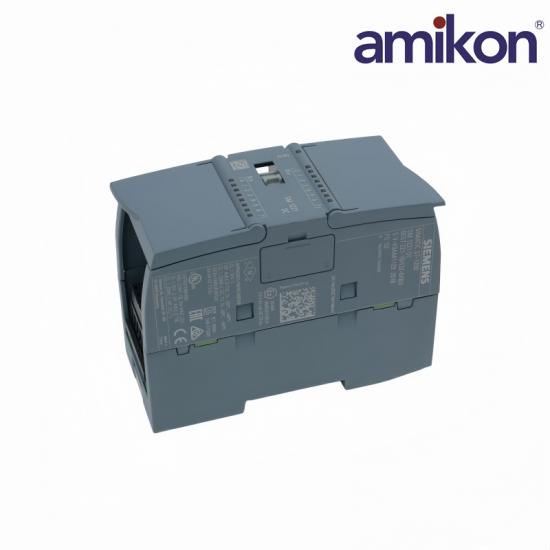

Siemens 6ES7221-1BH32-0XB0 SM 1221 16-Channel Digital Input Module

6ES7221-1BH32-0XB0
6ES7221-1BH32-0XB0
6ES7221-1BH32-0XB0

Siemens 6ES7221-1BH32-0XB0 SM 1221 16-Channel Digital Input Module

✉  INQUIRE NOW

SIEMENS · SIMATIC S7-1200

6ES7221-1BH32-0XB0

SM 1221 16-Channel Digital Input Module

MANUFACTURERSiemens
MODEL6ES7221-1BH32-0XB0
PART NUMBER6ES7221-1BH32-0XB0
PRODUCT TYPESM 1221 16-Channel Digital Input Module
SYSTEM FAMILYSIMATIC S7-1200
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6ES7221-1BH32-0XB0
  • Order(MOQ):

    1
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    COO

Siemens SIMATIC S7-1200

6ES7221-1BH32-0XB0

Price and Availability Inquiry

Siemens 6ES7221-1BH32-0XB0 is a SIMATIC S7-1200 SM 1221 signal module with 16 sink/source digital inputs for 24 V DC sensors.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6ES7221-1BH32-0XB0 and required quantity in your inquiry.

Siemens 6ES7221-1BH32-0XB0

Technical Specifications

Official Siemens supply, input, timing and environmental data for the SM 1221 digital input module.

01Product IdentityExact Siemens reference
ManufacturerSiemens
Part Number6ES7221-1BH32-0XB0
Product DesignationSM 1221 DI 16 × 24 V DC
System FamilySIMATIC S7-1200
02Input DataPublished channel values
Digital Inputs16
Input TypeSink / Source
Channel Grouping4 channels per group
IEC CharacteristicIEC 61131 Type 1
03Electrical & TimingPublished performance data
Supply Range20.4–28.8 V DC
Backplane Current130 mA max. at 5 V DC
Signal 1 Current4 mA typical
Input Delay0.2–12.8 ms parameterizable
04Physical & EnvironmentPublished module data
Dimensions (W × H × D)45 × 100 × 75 mm
Net WeightApprox. 0.19 kg
Operating Temperature−20 to +60 °C
Protection RatingIP20

Siemens 6ES7221-1BH32-0XB0 Product Support

Frequently Asked Questions

Sensor wiring, sink/source use, delay settings, grouping, diagnostics, installation and ordering guidance for SM 1221 16 DI.

01

What type of signals does 6ES7221-1BH32-0XB0 accept?

It provides sixteen 24 V DC digital inputs that can be used with sink or source field wiring when connected according to the Siemens diagram.

02

What supply tolerance is allowed?

The published DC supply range is 20.4 to 28.8 V. Verify the sensor supply remains within this range under load.

03

How are the input delays assigned?

Delays from 0.2 to 12.8 ms are selectable in groups of four channels, allowing faster or more noise-tolerant input behavior.

04

What are the logic thresholds?

Siemens specifies signal 0 at 5 V DC and 1 mA, and signal 1 at 15 V DC and 2.5 mA; typical signal-1 current is 4 mA.

05

Does the module provide channel status diagnostics?

Input status LEDs are provided, and diagnostic alarms are supported. Configure the required functions in the S7-1200 project.

06

What installation items are required?

Provide the specified front connector, mount the module beside a compatible S7-1200 CPU and observe the IP20 enclosure and temperature requirements.

07

Which details should be supplied for an order?

Provide 6ES7221-1BH32-0XB0, CPU type and firmware, sink/source wiring method, front connector requirement and quantity.
