Siemens SIMATIC S7-200

6ES7223-1PH22-0XA0

Price and Availability Inquiry

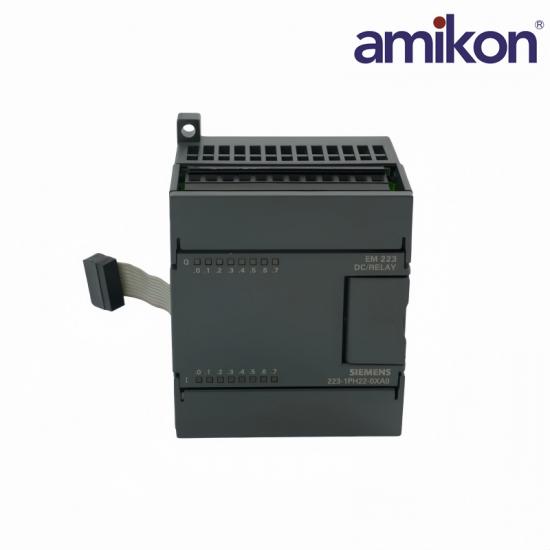

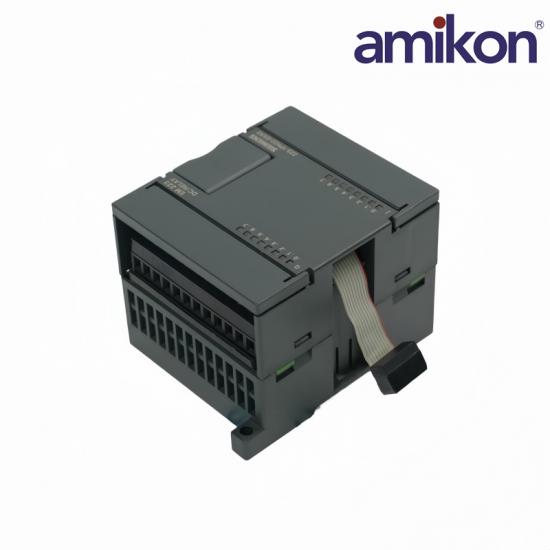

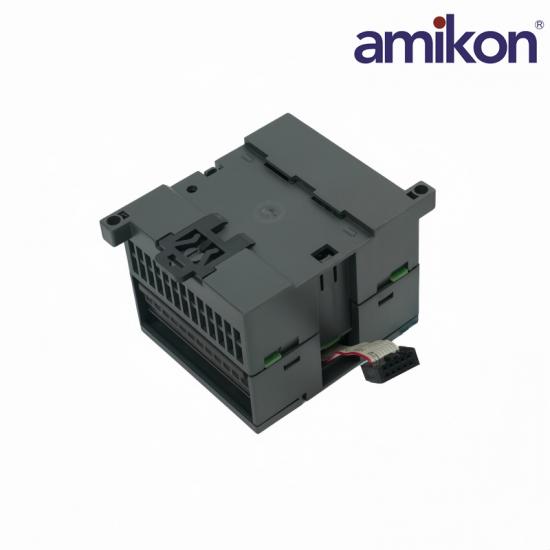

Siemens 6ES7223-1PH22-0XA0 is an EM 223 expansion module for S7-22X CPUs, combining 8 sink/source 24 V DC inputs with 8 relay outputs rated up to 2 A per point.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7223-1PH22-0XA0 and required quantity in your inquiry.

Siemens 6ES7223-1PH22-0XA0

Technical Specifications

Official Siemens channel, load-voltage, isolation and mechanical data for the SIMATIC S7-200 EM 223 digital I/O module.

01Product IdentityExact Siemens reference

ManufacturerSiemens

Part Number6ES7223-1PH22-0XA0

Product DesignationEM 223 Digital I/O

System FamilySIMATIC S7-200

02Input DataPublished binary-input values

Digital Inputs8

Rated Input24 V DC

Input TypeSink / source

Signal 1 Range15 to 30 V DC

03Output DataPublished relay ratings

Digital Outputs8 relays

Current per Output2 A maximum

DC Load Range5 to 30 V DC

AC Load Range5 to 250 V AC

04Performance & PhysicalPublished module data

Isolation Test500 V AC

Power Loss3 W typical

Dimensions (W × H × D)71.2 × 80 × 62 mm

Net WeightApprox. 300 g

Siemens 6ES7223-1PH22-0XA0 Product Support

Frequently Asked Questions

CPU compatibility, input wiring, relay loading, isolation, cable routing, replacement and ordering guidance for the S7-200 EM 223.

Which CPUs support 6ES7223-1PH22-0XA0?

Siemens specifies this EM 223 only for SIMATIC S7-22X CPUs. Confirm the CPU type, available expansion capacity and Micro/WIN hardware configuration before installation.

How should the eight digital inputs be wired?

The inputs are 24 V DC sink/source channels. Verify the sensor common, signal polarity and the published signal thresholds before applying field voltage.

What can the eight relay outputs switch?

Each relay output is rated up to 2 A. The connected DC or AC voltage and the load type must remain within Siemens contact ratings and group-current limits.

Can DC and AC loads be mixed on the module?

The relay contacts can switch supported DC or AC loads, but circuit grouping, commons, protective devices and isolation rules must be reviewed in the S7-200 wiring diagram.

What is the isolation arrangement?

Digital inputs are optically isolated and relay outputs are galvanically isolated in groups. Siemens specifies a 500 V AC isolation test for the module.

What should be checked when replacing an EM 223?

Match the 8-input/8-relay configuration, 24 V DC input type, 2 A contact rating, 71.2 mm module width, connector and S7-22X CPU configuration.

Which details are required for ordering?

Provide 6ES7223-1PH22-0XA0, the S7-22X CPU model, field voltage, relay load type, quantity and a photograph of the installed module label.
