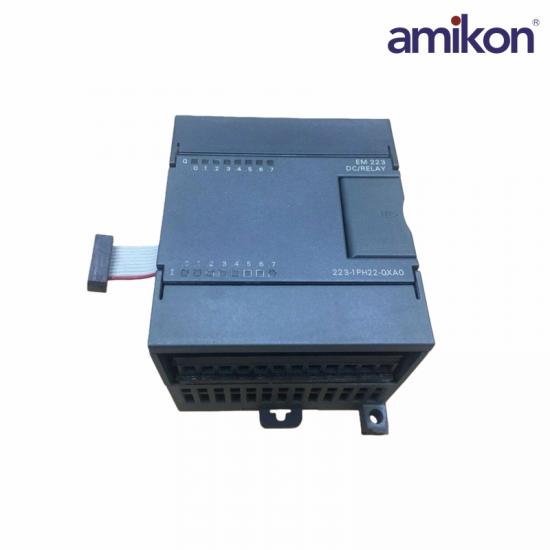

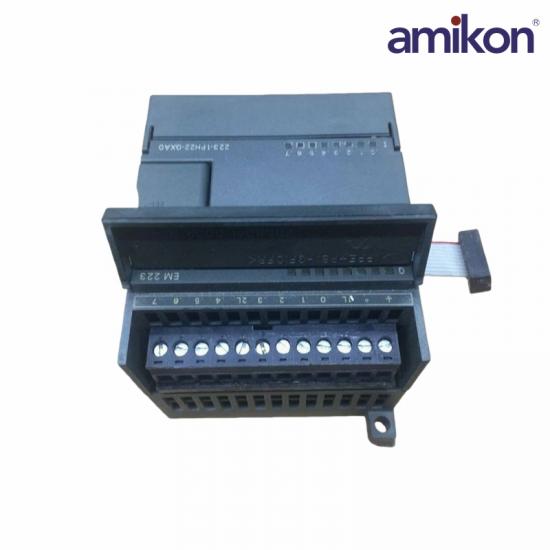

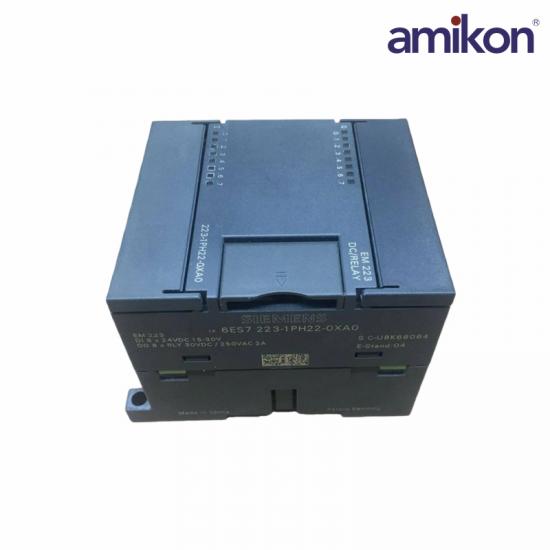

Part Number: 6ES7223-1PH22-0XA0

Manufacturer: Siemens

Product Type: I/O Module

Product Line: SIMATIC

Weight: 0.06 lbs (0.03 kg)

Rated DC Load Voltage: 24 VDC

Rated AC Load Voltage: 230 V AC, 24 to 230 V AC

Permissible DC Load Voltage Range: 5 to 30 VDC

Permissible AC Load Voltage Range: 5 to 250 VAC

Typical Power Loss: 3 Watts

Digital Inputs: 8 Inputs

Digital Outputs: 8 Outputs

Relay Outputs: Yes

Output Short-Circuit Protection: No

Plug-In I/O Terminals: Supported

Maximum Shielded Cable Length: 500 Meters

Maximum Unshielded Cable Length: 150 Meters

The Siemens 6ES7223-1PH22-0XA0 functions as an I/O module tailored for specific industrial tasks. It operates with a nominal DC load voltage of 24 volts and can handle AC loads from 24 to 230 volts. This device supports digital input and output operations through 8 dedicated channels for each output and input.

The output voltage capabilities allow DC loads to range between 5 and 30 volts, while AC loads can extend from 5 to 250 volts. A consideration for power efficiency is shown with a typical power loss of 3 watts during operation. It is important to note that this module does not incorporate output short-circuit protection.

Frequently asked questions：

Q1: What is the Siemens 6ES7223-1PH22-0XA0 used for?

A: It is used as a digital input module for Siemens PLCs to monitor and control field devices.

Q2: How many digital inputs does this module have?

A: It features 8 digital inputs.

Q3: What is the rated DC voltage for the 6ES7223-1PH22-0XA0?

A: The module operates at 24 VDC.

Q4: What applications is this I/O module suitable for?

A: It is suitable for industrial , PLC control systems, and signal acquisition tasks.
