Description：

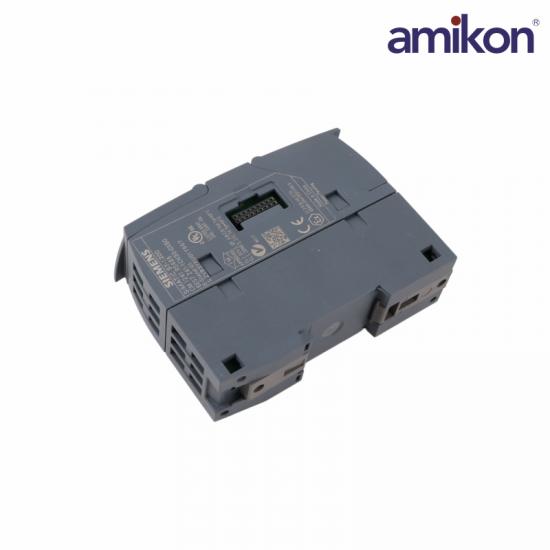

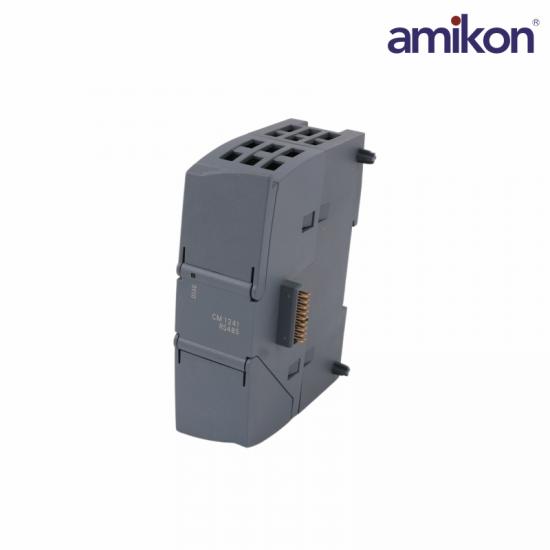

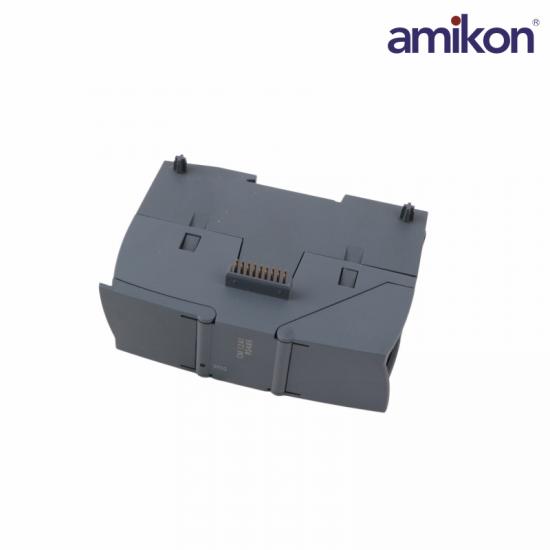

The SIEMENS 6ES7241-1CH30-1XB0 is a reliable Communication Board used in SIMATIC systems for efficient industrial data communication and device connectivity. This module supports stable serial communication between PLCs, controllers, HMIs, and other industrial equipment, helping improve system integration and operational efficiency in industrial control applications.

The 6ES7241-1CH30-1XB0 communication board supports a maximum telegram length of 1 kbyte, enabling efficient transmission of industrial control data and communication signals. It allows flexible communication configuration with support for 7 or 8 bits per character and standard communication settings of 1 or 2 stop bits, making it compatible with a wide range of industrial communication devices and protocols.

The 6ES7241-1CH30-1XB0 module is suitable for demanding industrial environments and supports operating temperatures from -20°C to +60°C in horizontal installation conditions. In addition, it offers strong mechanical durability with a maximum fall height resistance of 0.3 m for five times while in product packaging, helping ensure safe transportation and handling.

Specification：

Frequently asked questions

Q1: What is the SIEMENS 6ES7241-1CH30-1XB0 Communication Board?

A1: It is an industrial communication board used for serial communication and data exchange in Siemens and PLC systems.

Q2: What is the 6ES7241-1CH30-1XB0 typical power loss of this communication board?

A2: The 6ES7241-1CH30-1XB0 typical power loss is 1.5 W.

Q3: What is the 6ES7241-1CH30-1XB0 maximum supported cable length?

A3: The 6ES7241-1CH30-1XB0 maximum cable length supported is 1,000 meters.

Q4: What is the 6ES7241-1CH30-1XB0 maximum telegram length?

A4: The 6ES7241-1CH30-1XB0 maximum telegram length is 1 kbyte.

Q5: How many bits per character are supported?

A5: The 6ES7241-1CH30-1XB0 board supports 7-bit or 8-bit character formats.

Product Applications

Water Treatment and Environmental Protection: Used to connect various water quality analyzers, flow meters, level gauges, and other field instruments to collect status parameters of water pumps and valves.

Power and Energy: Used in power monitoring systems of power plants and substations to read operating data from smart meters and protection devices.

Packaging and Textile Machinery: Enables stable, real-time parameter exchange between PLCs, servo drives, and frequency converters in high-speed production lines.

HVAC and Refrigeration: Centrally controls central air conditioning units and chillers, reads temperature and pressure sensors, and adjusts valves accordingly.
