Input：

Type of the power supply network：1-phase AC

Supply voltage at AC：Automatic range selection

Supply voltage：120 V / 230 V

Input voltage 1 at AC：85 … 132 V

Input voltage 2 at AC：170 … 264 V

Wide range input：No

Overvoltage / overload capability：2.3 × Vin rated, 1.3 ms

Buffering time for rated output current in the event of power failure (minimum)：20 ms

Operating condition of the mains buffering at Vin = 93/187 V

Line frequency：50/60 Hz

Line frequency range：47 … 63 Hz

Input current：

At rated input voltage 120 V：0.9 A

At rated input voltage 230 V：0.5 A

Current limitation of inrush current at 25 °C (maximum)：22 A

Output：

Voltage curve at output：Controlled, isolated DC voltage

Output voltage at DC rated value：24 V

Output voltage (output 1) at DC rated value：24 V

Residual ripple：

Maximum：50 mV

Typical：5 mV

Voltage peak：

Maximum：150 mV

Typical：20 mV

Display version for normal operation：Green LED for 24 V OK

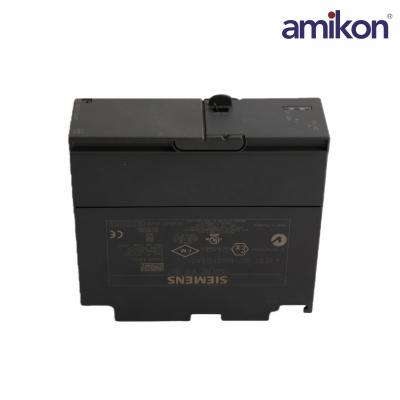

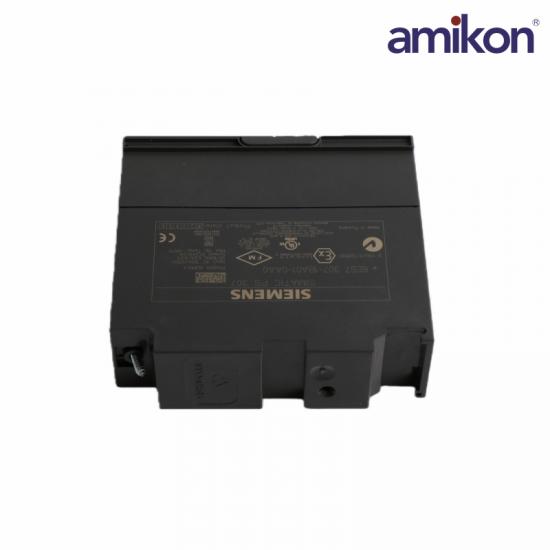

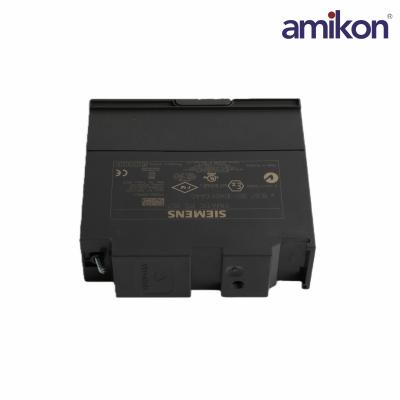

The Siemens 6ES7307-1BA01-0AA0 SIMATIC S7-300 Control Module is an indispensable component for modern industrial control systems, offering unparalleled reliability and performance.

Engineered with a robust and compact design, this module seamlessly integrates into existing PLC systems, enhancing efficiency and reducing downtime.

Featuring a high-speed processor, ample RAM and ROM, and a wide operating temperature range, it ensures smooth operation under diverse industrial conditions.

With its extensive communication interfaces, including MPI, DP, and USB, this module facilitates seamless connectivity with other devices and systems, streamlining data exchange and control.

Designed for versatility, the 6ES7307-1BA01-0AA0 supports up to 16 digital inputs and 10 digital outputs, catering to a broad spectrum of control requirements.
