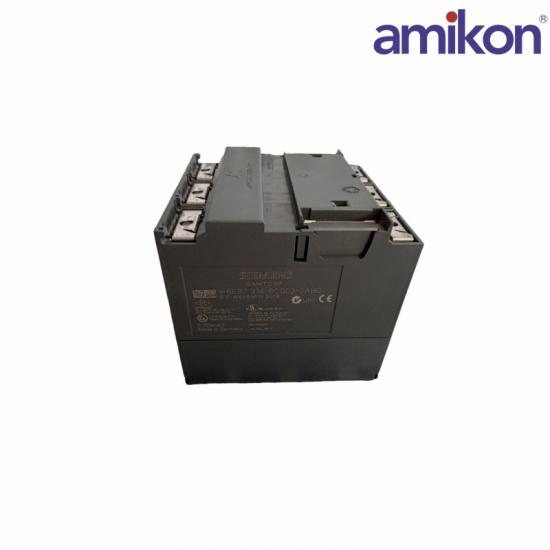

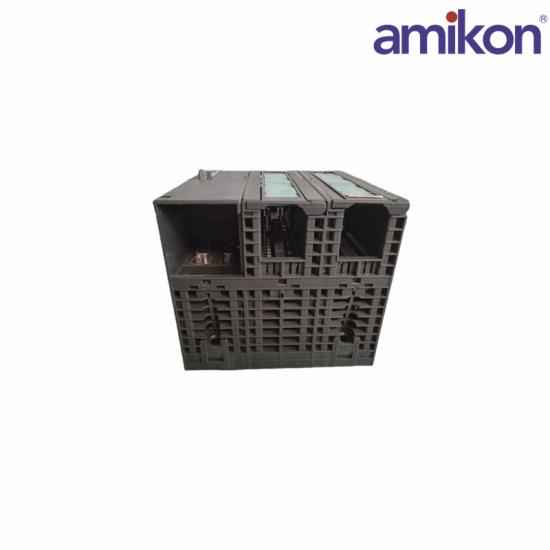

SIEMENS    6ES7314-6CG03-0AB0 CPU Module

The SIEMENS 6ES7314-6CG03-0AB0 is a S7-300 CPU 314C-2 DP module, part of Siemens' SIMATIC S7-300 series. This compact CPU is designed for use in industrial systems and offers integrated I/O and communication capabilities for controlling and monitoring processes.

Functionality: The CPU 314C-2 DP module combines a central processing unit with built-in digital and analog I/O, as well as a PROFIBUS DP interface for network communication. It is ideal for medium-level tasks where distributed control is required.

Applications: Used in manufacturing, process, and machine building, the module is particularly well-suited for controlling complex processes, distributed, and managing multiple devices over PROFIBUS networks.

Processor Type: High-performance microprocessor for real-time data processing and control.

Work memory (RAM): 128 KB.

Load memory: Expandable via MMC (Micro Memory Card).

Digital Inputs: 24 DI (24V DC).

Digital Outputs: 16 DO (24V DC).

Analog Inputs: 4 AI (0-10V, 0-20mA).

Analog Outputs: 2 AO (0-10V, 0-20mA).

Bit operations: 0.07 µs.

Word operations: 0.08 µs.

Operating Voltage: 24V DC.

Dimensions: Compact form factor, approximately 174 x 125 x 130 mm.

Power Consumption: Typically 5W.

Operating Temperature: 0°C to +60°C.

Storage Temperature: -40°C to +70°C.
