Siemens SIMATIC S7-300

6ES7331-7NF00-0AB0

Price and Availability Inquiry

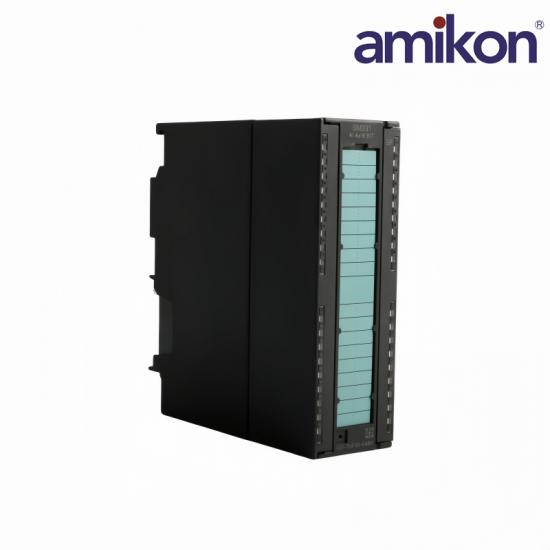

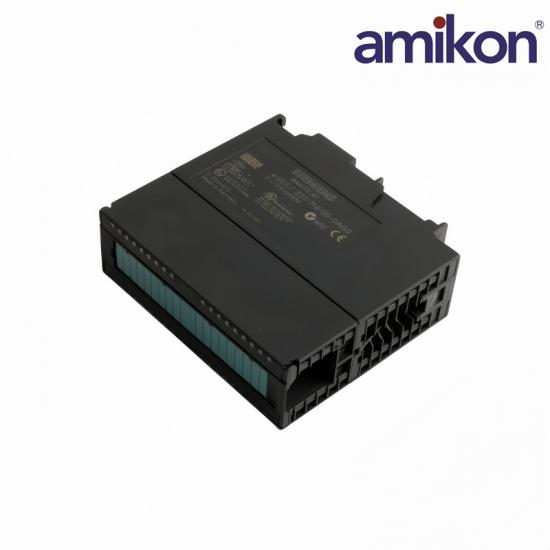

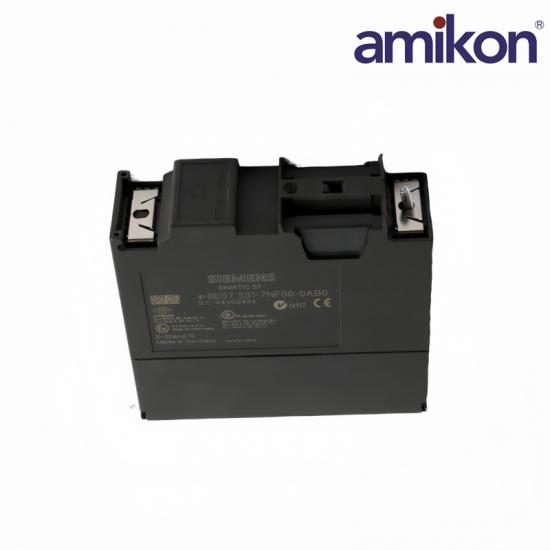

The Siemens 6ES7331-7NF00-0AB0 is a Analog Input Module designed for SIMATIC S7-300 applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7331-7NF00-0AB0 and required quantity in your inquiry.

Siemens 6ES7331-7NF00-0AB0

Technical Specifications

Official SM 331 channel, signal-range and electrical data.

01Product IdentityOfficial module data

ManufacturerSiemens

Article Number6ES7331-7NF00-0AB0

Product DesignationSM 331

Product FamilySIMATIC S7-300

02Analog Input DataPublished channel data

Analog Inputs8

Resolution16 bit

Potential SeparationIsolated

Front Connector40-pin

03Signal RangesS7-300 module manual

Voltage Ranges±5 V / ±10 V / 1–5 V

Current Ranges±20 mA / 0–20 mA / 4–20 mA

Conversion Time55 ms

TC / Resistance InputNot supported

04System DataElectrical and mechanical data

Backplane Current130 mA maximum

Power Loss0.6 W typical

Module Width40 mm

InstallationS7-300 rack

Siemens 6ES7331-7NF00-0AB0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6ES7331-7NF00-0AB0.

Which process signals are appropriate for 6ES7331-7NF00-0AB0?

Use it for isolated voltage or current measurement. Siemens lists eight analog inputs and does not specify thermocouple, resistance-thermometer or resistance measurement for this article.

Which measuring ranges must be configured in STEP 7?

Select the range that matches the transmitter: ±5 V, ±10 V, 1 to 5 V, ±20 mA, 0 to 20 mA or 4 to 20 mA.

What acquisition performance should the application expect?

The module provides 16-bit conversion with a listed conversion time of 55 ms, so the control task should not assume high-speed sampling.

Which connector and grounding arrangement are required?

Use the correct 40-pole front connector and follow the single-point grounding and shielding instructions for the isolated analog group.

Are the 50 V and 32 mA figures valid operating ranges?

No. Siemens lists 50 V continuous and 32 mA as input destruction limits; normal operation must stay within the selected measuring range.

What should be checked if a current channel is unstable or overrange?

Confirm the 0/4 to 20 mA parameter, transmitter polarity, loop power, 250-ohm input path, shield termination and common-potential conditions.

What information prevents an incorrect SM 331 replacement?

Order the full 6ES7331-7NF00-0AB0 number and provide the configured ranges, 40-pole connector details, firmware or hardware revision and required spare-part condition.
