General information

Product type designation CPU 417H

Engineering with

● Programming package STEP 7 V5.3 SP2 or higher with HW update

CiR - Configuration in RUN

CiR synchronization time, basic load 60 ms

CiR synchronization time, time per I/O byte 10 µs

Supply voltage

Rated value (DC) Power supply via system power supply

Input current

from backplane bus 5 V DC, typ.  1.5 A

from backplane bus 5 V DC, max.  1.8 A

from backplane bus 24 V DC, max.  150 mA;  Per DP interface

from interface 5 V DC, max.  90 mA;  At each DP interface

Power loss

Power loss, typ.  6.5 W

Memory

Type of memory RAM

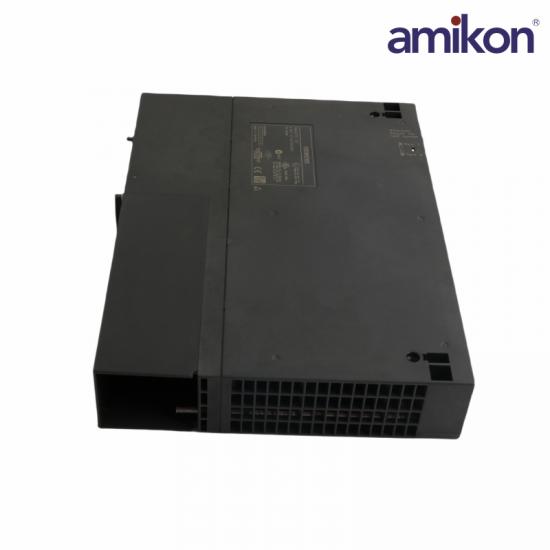

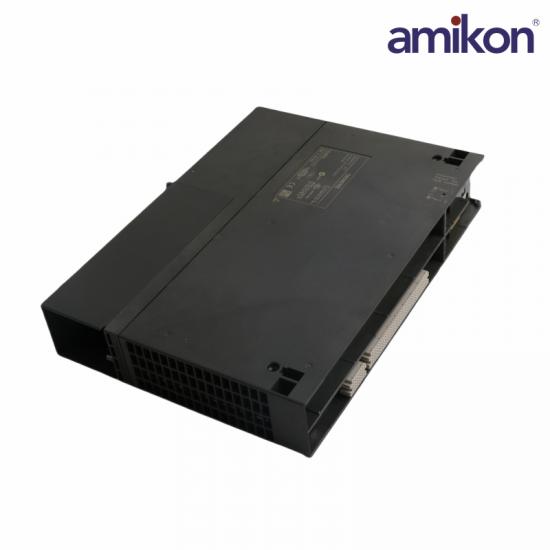

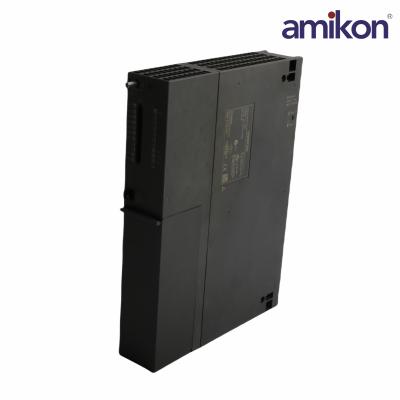

Experience unparalleled reliability and efficiency with the Siemens S7 400H CPU 417H Central Unit 6ES7417-4HT14-0AB0, a cornerstone in modern industrial systems.  Designed for demanding applications, this CPU offers superior performance and flexibility, ensuring smooth operation in complex manufacturing environments.

Equipped with advanced interfaces including MPI/DP and DP A, this CPU facilitates seamless integration with a wide range of Siemens and third-party devices, streamlining your infrastructure.  Its robust synchronization capabilities enable efficient data exchange between different components, enhancing overall system responsiveness.

Featuring an impressive 60 MB of memory, this CPU provides ample space for storing code and data, allowing for sophisticated control algorithms and extensive data management without compromising on performance.  The division into 30 MB for code and 30 MB for data ensures optimized resource utilization and enhanced security.
