Siemens SIMATIC S7-400

6ES7431-1KF20-0AB0

Price and Availability Inquiry

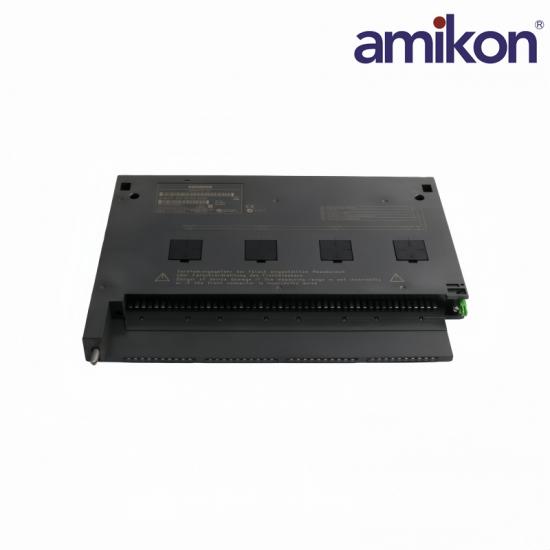

The Siemens 6ES7431-1KF20-0AB0 is a Analog Input Module designed for SIMATIC S7-400 applications.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7431-1KF20-0AB0 and required quantity in your inquiry.

Siemens 6ES7431-1KF20-0AB0

Technical Specifications

Official SM 431 input, conversion and construction data.

01Product IdentityOfficial module data

ManufacturerSiemens

Article Number6ES7431-1KF20-0AB0

Product DesignationSM 431

Product FamilySIMATIC S7-400

02Analog Input DataPublished channel data

Analog Inputs8

Resolution14 bit

Potential SeparationIsolated

Module FunctionAnalog input

03Signal & ConversionOfficial data sheet

Signal TypesVoltage / current / resistance

Sensor Connections2-, 3- and 4-wire

Basic Conversion Time52 µs

Full Module Time0.42 ms

04Construction DataMechanical and wiring data

Shielded Cable Length200 m maximum

Dimensions25 × 290 × 210 mm

Net WeightApprox. 500 g

Diagnostic FunctionNot integrated

Siemens 6ES7431-1KF20-0AB0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6ES7431-1KF20-0AB0.

How many signal channels can this SM 431 use for each measurement type?

It provides eight channels for voltage or current measurement and up to four channels for resistance measurement.

Which transmitter and resistance connections are supported?

Current inputs support 2-wire and 4-wire transmitters; resistance measurement supports 2-, 3- and 4-wire connections, with line resistance included in 2- and 3-wire results.

What scan performance is available with all channels enabled?

Siemens lists a 52 µs basic conversion time and about 0.42 ms module execution time for all released channels, with resolution up to 14 bits.

When is the external 24 V L+ supply required?

The load supply is needed when the module powers connected 2-wire transmitters; passive voltage, current or resistance sensors must follow their respective wiring diagrams.

How should interference rejection be commissioned?

Parameterize the integration setting for none, 400 Hz, 60 Hz or 50 Hz rejection, then verify sensor wiring, shield continuity and stable reference potentials.

What installation limits matter for long analog runs?

Siemens specifies shielded cable up to 200 m. Route it away from power conductors and terminate the shield according to the S7-400 analog-module instructions.

What should be recorded before ordering or migrating this module?

Record the exact 6ES7431-1KF20-0AB0 number, enabled signal types, transmitter supply use, filter settings and the fact that this article does not provide a diagnostics function.
