Description：

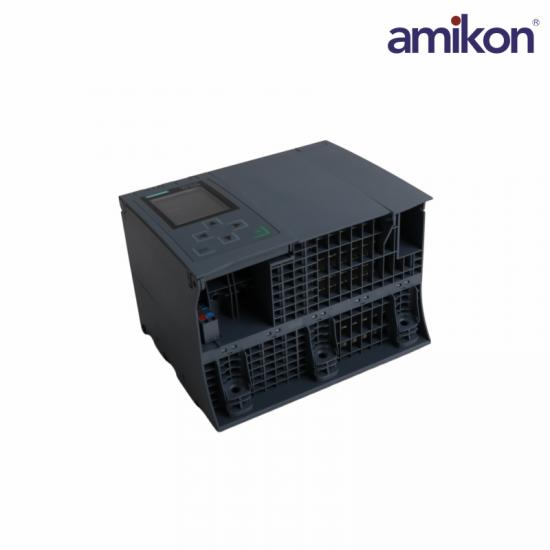

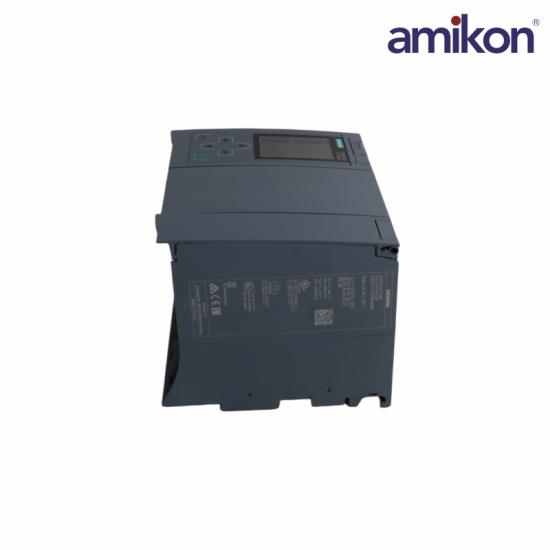

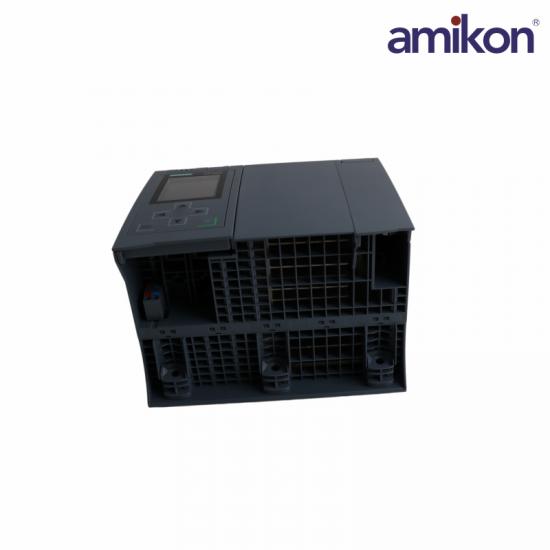

The SIEMENS 6ES7517-3AP00-0AB0 CPU Module is a high-performance controller from the SIMATIC S7-1500 series, developed for advanced and process control applications requiring exceptional processing power, large memory capacity, and reliable communication capabilities. The CPU serves as the central processing unit of the system, executing control programs, managing I/O operations, and coordinating data exchange across industrial networks.

Operating from a 24 VDC power supply, the module supports a voltage range of 19.2 VDC to 28.8 VDC, ensuring stable performance even under fluctuating power conditions. An integrated energy storage system provides a 5 ms hold time during mains or voltage failures, helping maintain system reliability during brief power interruptions.

Specification：

Frequently asked questions

Q1: What is the SIEMENS 6ES7517-3AP00-0AB0 CPU Module used for?

A1: The 6ES7517-3AP00-0AB0 CPU Module is a high-performance controller in the SIMATIC S7-1500 series, designed for complex , process control, data processing, and communication tasks in industrial applications.

Q2: What is the rated operating voltage of the 6ES7517-3AP00-0AB0 CPU module?

A2: The 6ES7517-3AP00-0AB0 module operates with a rated DC voltage of 24 VDC, ensuring compatibility with standard industrial power systems.

Q3: What is the maximum process image size supported by the 6ES7517-3AP00-0AB0 CPU?

A3: The 6ES7517-3AP00-0AB0 CPU supports a maximum process image size of 1 Mbyte, enabling efficient handling of large quantities of input and output data.

Q4: How many subprocess images can the 6ES7517-3AP00-0AB0 CPU manage?

A4: The 6ES7517-3AP00-0AB0 supports up to 32 subprocess images, allowing flexible organization and processing of distributed I/O data.

Product Applications

Food and Beverage: Centralized control of large packaging machinery, material sorting systems, and stringent process formulation flows.

Chemicals and Pharmaceuticals: Management of large-scale distributed I/O, executing highly reliable continuous process control and data acquisition.

Water and Wastewater Treatment: Real-time monitoring and scheduling of pumps and valves across different areas, supporting stable access to a large number of variables.

Automotive Engineering: Handling complex assembly line control, robot collaboration, and high-precision motion control.
