Description：

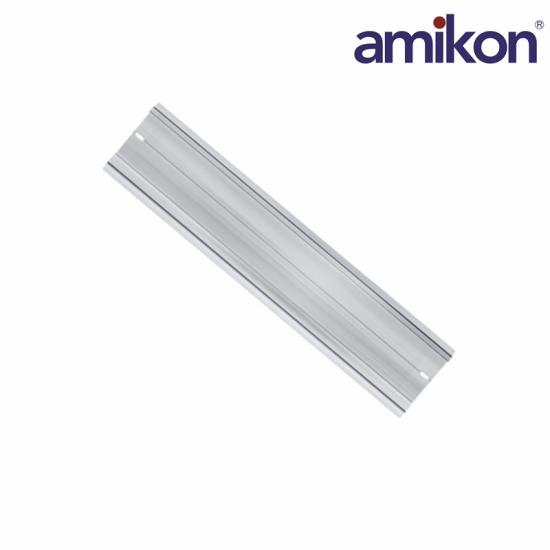

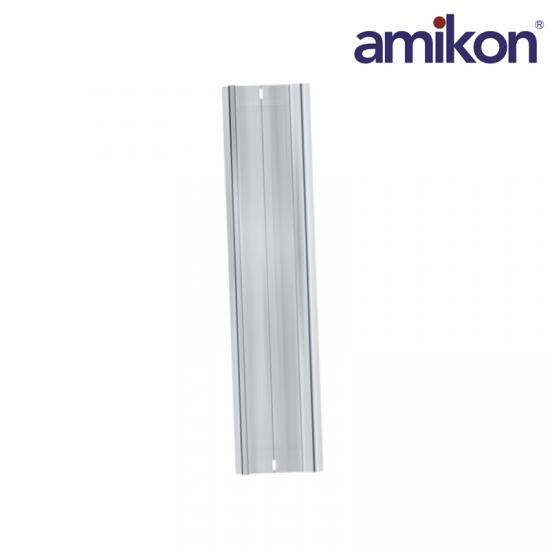

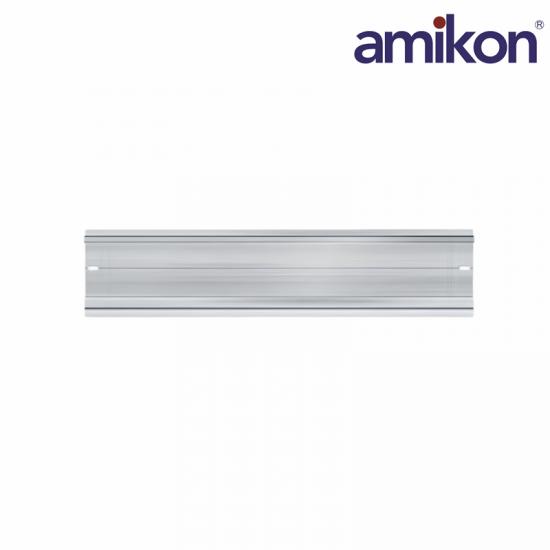

The 6ES7590-1AF30-0AA0 is a premium, rugged hardware solution engineered specifically for Siemens SIMATIC S7-1500 and ET 200MP systems. Functioning as the central physical backbone for your control cabinet, this 530 mm mounting rail provides ultra-stable mechanical support for CPUs, power supplies, and high-density I/O modules. The defining feature of this profile is its dual-purpose design: it natively accommodates proprietary S7-1500 module clips while simultaneously hosting an integrated, industry-standard 35 mm DIN rail down its center channel. This hybrid architecture empowers control panel builders to mix and match standard terminal blocks, miniature circuit breakers (MCBs), and interface relays right next to the PLC hardware on a single horizontal plane, significantly maximizing dense cabinet space and streamlining wire routing.

Specification：

Frequently asked questions

Q : What is the exact definition of part number 6ES7590-1AF30-0AA0?

It is a 530 mm aluminum mounting rail specifically designed for the Siemens SIMATIC S7-1500 PLC and ET 200MP system.

Q : What are the physical dimensions of this specific rail?

The rail has a length of 530 mm, a height of 155 mm, and a depth of 16 mm.

Q : What is the net weight of the 6ES7590-1AF30-0AA0 rail?

It weighs approximately 1,034 grams (2.28 lbs) due to its heavy-duty aluminum construction.

Q : What is included in the package when I order this part number?

The package includes the 530 mm rail itself and one grounding screw with a washer.

Product Applications

Power and New Energy: Main control cabinets for photovoltaic tracking systems and wind power generation equipment, as well as control systems for lithium battery production lines.

Water Treatment and Environmental Engineering: Pumping stations and centralized control cabinets for urban wastewater treatment plants and waterworks.

Petrochemicals and Energy: Racks for medium to large-scale redundant control systems (such as S7 1500R/H) that support core PLCs in harsh environments.
