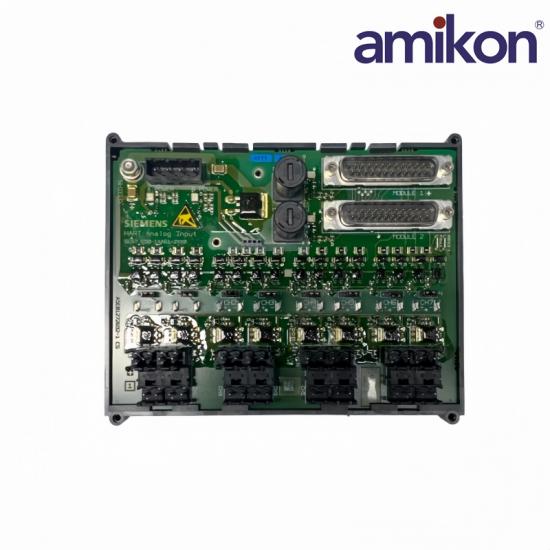

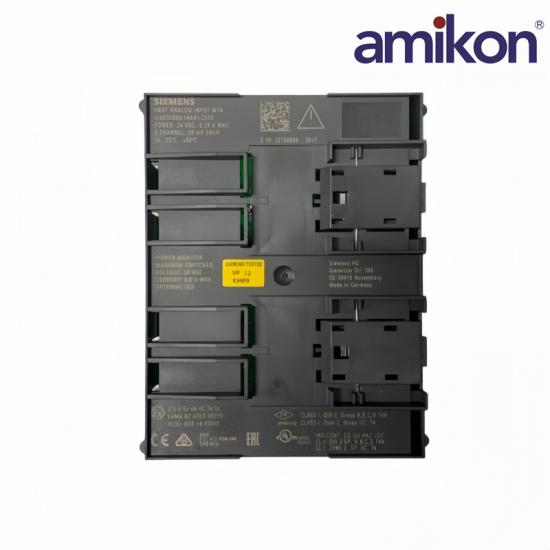

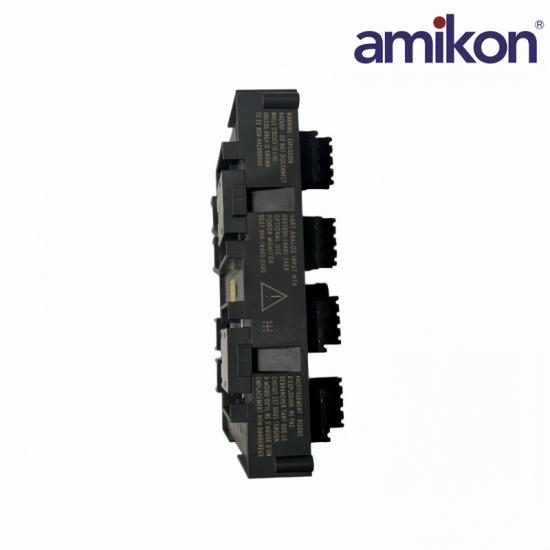

Siemens 6ES7650-1AA61-2XX0 SIMATIC PCS 7 Redundant 8-Channel AI HART MTA

6ES7650-1AA61-2XX0
6ES7650-1AA61-2XX0
6ES7650-1AA61-2XX0

Siemens 6ES7650-1AA61-2XX0 SIMATIC PCS 7 Redundant 8-Channel AI HART MTA

✉  INQUIRE NOW

SIEMENS · SIMATIC PCS 7 / ET 200M

6ES7650-1AA61-2XX0

Redundant 8-Channel AI HART MTA

MANUFACTURERSiemens
MODEL6ES7650-1AA61-2XX0
PART NUMBER6ES7650-1AA61-2XX0
PRODUCT TYPERedundant 8-Channel AI HART MTA
SYSTEM FAMILYSIMATIC PCS 7 / ET 200M
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    6ES7650-1AA61-2XX0
  • Order(MOQ):

    1
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    Siemens
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    COO

Siemens · SIMATIC PCS 7 / ET 200M

6ES7650-1AA61-2XX0

Price and Availability Inquiry

Siemens 6ES7650-1AA61-2XX0 is a redundant eight-channel analog-input HART marshaling terminal assembly for SIMATIC PCS 7 ET 200M stations. It supports 0–20 mA operation without HART and 4–20 mA operation with HART, with redundant fused power supply and status indication.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 6ES7650-1AA61-2XX0 and required quantity in your inquiry.

Siemens 6ES7650-1AA61-2XX0

Technical Specifications

Official Siemens identity, signal, power, protection and environmental data.

01 Product Identity Exact Siemens reference
Manufacturer Siemens
Part Number 6ES7650-1AA61-2XX0
Product Designation AI8 HART MTA
System Family SIMATIC PCS 7 / ET 200M
02 Input Data Published analog-channel data
Analog Inputs 8 channels
Without HART 0–20 mA
With HART 4–20 mA
Signal Protocol HART supported
03 Power & Protection Official MTA electrical ratings
Power Input 21.6–28.8 V DC; single/redundant
Current Consumption 0.29 A max. (8 × 2-wire at 20 mA)
Power Dissipation 1 W typical
Module Fuse 0.5 A
04 Physical & Environment Catalog and ambient ratings
Package Size 17.5 × 13.9 × 8.6 cm
Net Weight 0.394 kg
Ambient Temperature −25 to +60 °C
Humidity 5–95% RH; non-condensing

Siemens 6ES7650-1AA61-2XX0 Product Support

Frequently Asked Questions

Practical PCS 7 compatibility, HART application, redundant installation, commissioning, migration and ordering guidance for 6ES7650-1AA61-2XX0.

01

Which PCS 7 hardware must be matched with 6ES7650-1AA61-2XX0?

Use the MTA with the documented ET 200M analog input module 6ES7331-7TF01-0AB0. Confirm the complete module number, channel allocation and redundant station design before replacement.

02

Which process signals are suitable for this AI8 HART MTA?

It supports eight analog input channels. Use 0–20 mA when HART is not required and 4–20 mA when HART communication is enabled.

03

How should the redundant signal and power paths be installed?

Keep both interface paths identifiable, preserve the redundant fused power arrangement and reproduce the installed terminal assignments. Check fuse condition and polarity before energizing.

04

What should be checked when commissioning HART devices?

Confirm each channel range, loop power, HART device address and communication status. Compare LED indications and channel diagnostics with the saved PCS 7 configuration.

05

Which data should be backed up before removing the MTA?

Record terminal numbers, loop tags, paired-module slot, redundancy wiring, HART addresses and any channel-specific parameters or maintenance notes.

06

How should an ET 200SP HA migration be planned?

Siemens migration material references 6DL1134-6TH00-0PH1 for the corresponding function. Treat it as a migration project requiring wiring, terminal, hardware and engineering review rather than a direct plug-in replacement.

07

What information belongs in the purchase request?

Specify 6ES7650-1AA61-2XX0, paired module 6ES7331-7TF01-0AB0, quantity, installed PCS 7 version, redundancy requirement and whether an ET 200SP HA migration is planned.
