Siemens SIMATIC ET 200M

6ES7650-1AB51-2XX0

Price and Availability Inquiry

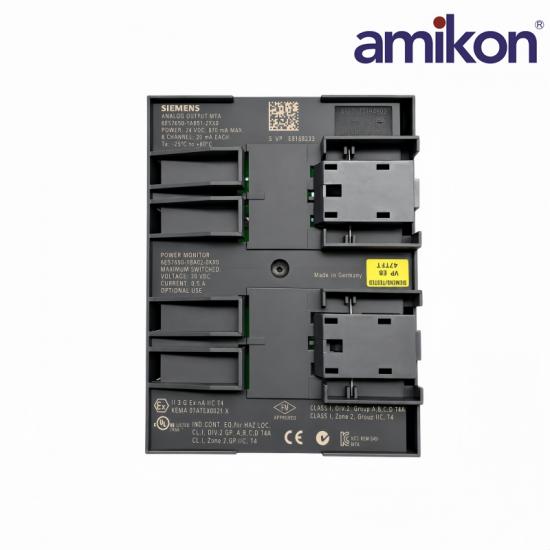

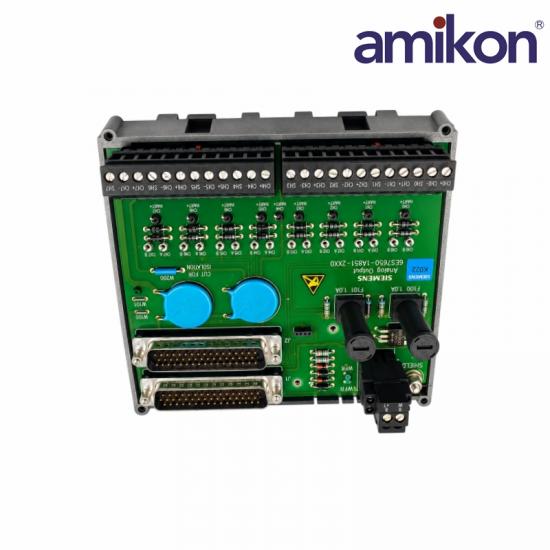

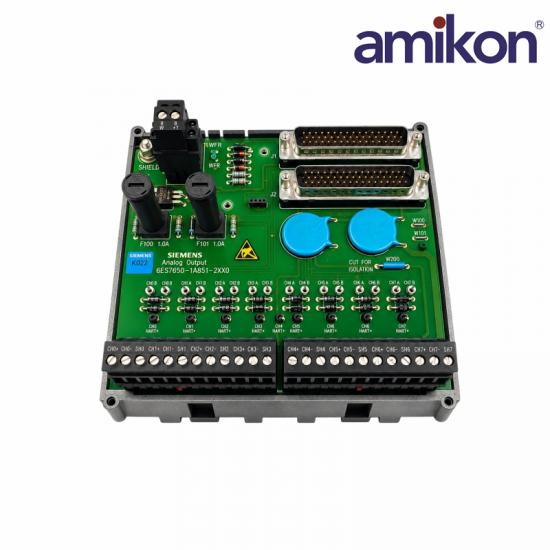

The Siemens 6ES7650-1AB51-2XX0 is an 8-channel Analog Output Marshalling Termination Assembly for SIMATIC ET 200M analog output module 6ES7332-5HF00-0AB0.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6ES7650-1AB51-2XX0 and required quantity in your inquiry.

Siemens 6ES7650-1AB51-2XX0

Technical Specifications

Official Siemens MTA operating, signal, power and installation ratings.

01Product IdentitySiemens product data

ManufacturerSiemens

Order number6ES7650-1AB51-2XX0

Module type8-channel Analog Output MTA

Compatible module6ES7332-5HF00-0AB0, E-Stand 3+

02Signal DataSiemens manual data

Output channels8

Output signals0/4–20 mA; ±20 mA

Maximum load< 600 Ω

HART accessPer-channel handheld connection

03Power DataSiemens manual data

Supply voltage21.6–28.8 V DC

Maximum current0.870 A

Power dissipation1 W typical

Module fuse1.0 A GMA

04Installation DataSiemens manual data

Mounting rail35 mm deep DIN rail

Conductor range24–14 AWG / 0.205–2.08 mm²

Ambient temperature−25 to +60 °C

Relative humidity5–95%, non-condensing

Siemens 6ES7650-1AB51-2XX0 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6ES7650-1AB51-2XX0.

Which ET 200M module and hardware release can use this MTA?

Pair it with SM 332 analog output module 6ES7332-5HF00-0AB0 at E-Stand 3 or higher.

How are redundant output-module connections handled?

The MTA provides dual connectors for redundant I/O modules; confirm both module paths and cable assignments against the installed wiring diagram.

Which current ranges and loop load must be checked?

The manual lists 0–20 mA, 4–20 mA and ±20 mA ranges; the analog output module drive capability is below 600 Ω.

How should redundant 24 V DC feeds be verified?

Check both power connections and their LEDs; each feed must remain within 21.6–28.8 V DC, with 0.870 A maximum current allowance.

Where can a HART handheld be connected during loop checks?

The MTA provides a HART handheld connection for each output channel.

Does migration to ET 200SP HA preserve every diagnostic?

No. Siemens maps this MTA to AQ 8xI HART HA, but notes that its short-circuit diagnostic alarm is not supported with the 6ES7650-1AB5x-2XX0 MTA.

Which two article numbers should appear in the order check?

Quote MTA 6ES7650-1AB51-2XX0 and verify the paired 6ES7332-5HF00-0AB0 module and its E-Stand.
