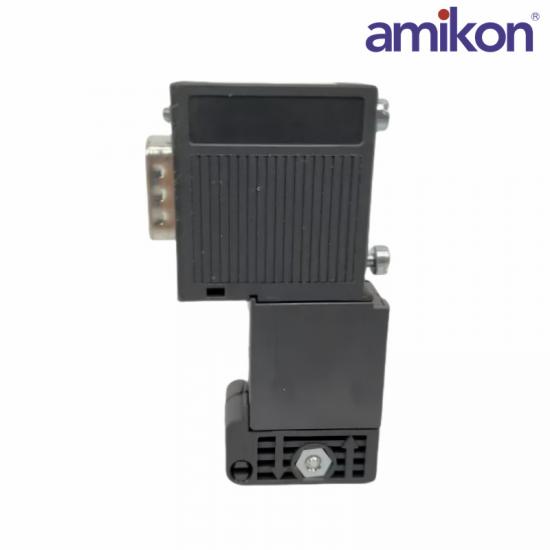

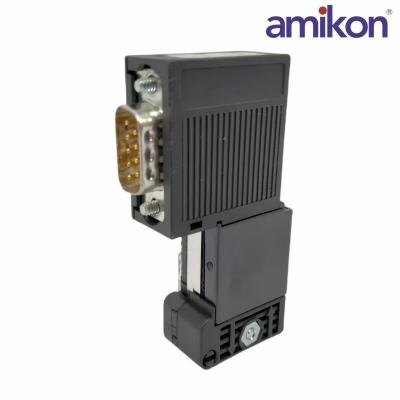

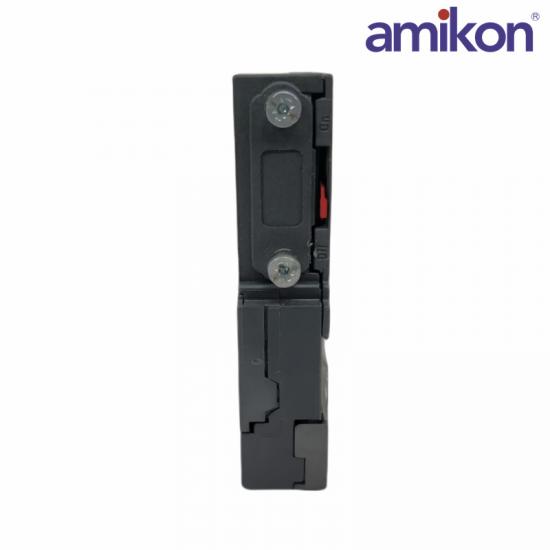

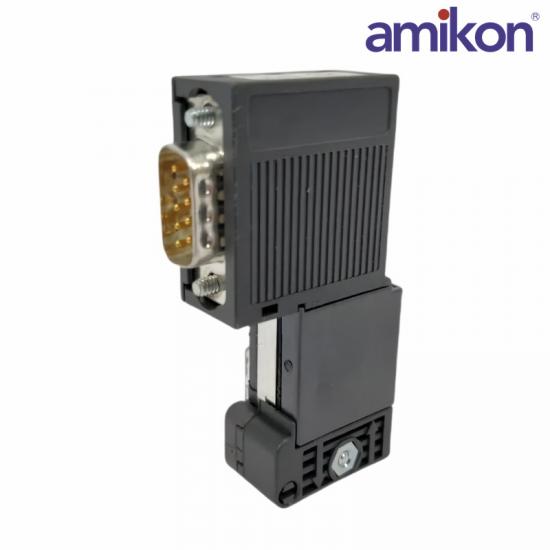

The Siemens 6ES7972-0BA50-0XA0 Simatic DP Bus Connector is a connector used for PROFIBUS DP (Decentralized Peripherals) networks, part of Siemens' SIMATIC line for industrial. This connector provides a quick and reliable connection for PROFIBUS DP cables to devices on the network, such as controllers, I/O modules, and other field devices. It’s commonly used in applications requiring stable and efficient data transfer in industrial settings.

6ES7972-0BA50-0XA0Supports PROFIBUS DP communication, with speeds up to 12 Mbps

Dimensions: 60 mm x 50 mm x 20 mm

Weight:  25 g

6ES7972-0BA50-0XA0 Specifically designed for PROFIBUS DP, supporting high-speed data transmission required by process control applications.

6ES7972-0BA50-0XA0 Comes with a 90-degree angled plug for efficient and compact installation in control cabinets, minimizing cable bending and reducing space usage.

6ES7972-0BA50-0XA0 Includes a termination resistor switch, allowing quick termination at the end of the bus line without additional components. This is essential for preventing signal reflections and ensuring reliable data communication on PROFIBUS networks.

6ES7972-0BA50-0XA0  Features built-in LEDs that provide status indicators for monitoring the communication status, which aids in troubleshooting and network maintenance.

Plug-and-play design with a simple clamp connection mechanism for easy and secure attachment of PROFIBUS cables.

Rugged Industrial Design: Constructed with durable materials to withstand the rigors of industrial environments, including resistance to electromagnetic interference (EMI).

Connector Type: 9-pin D-sub connector, with a 90-degree angled cable outlet.

6ES7972-0BA50-0XA0  Integrated switchable termination resistor for easy end-of-line termination.

6ES7972-0BA50-0XA0 Suitable for use with standard PROFIBUS DP cables, providing secure and stable connections.
