Siemens SIMOTION Sensor Systems

6FX2001-5QN13

Price and Availability Inquiry

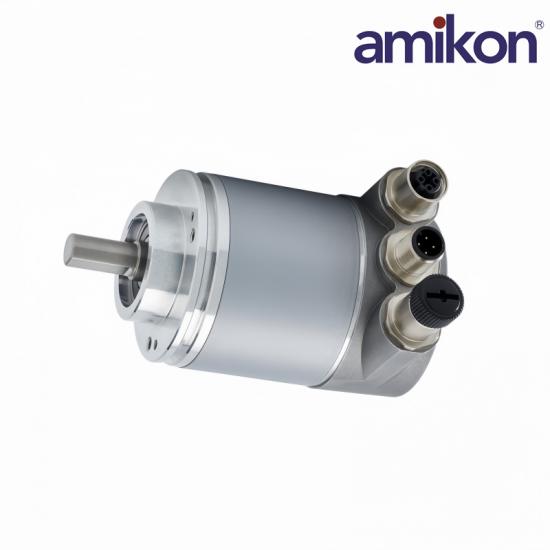

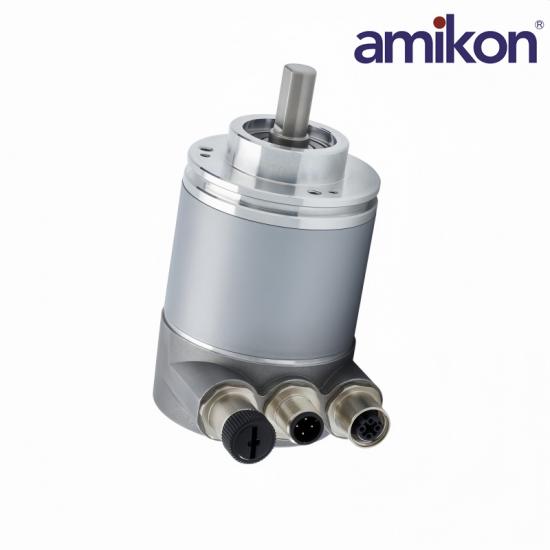

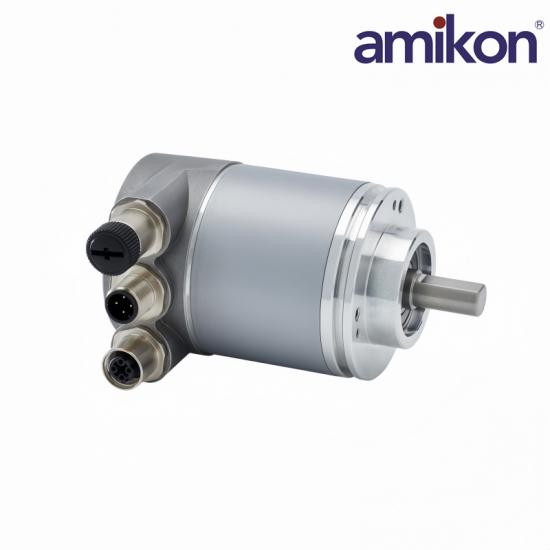

A programmable absolute single-turn encoder with 16-bit resolution, PROFINET IO real-time communication and rugged M12 connectivity.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 6FX2001-5QN13 and required quantity in your inquiry.

Siemens 6FX2001-5QN13

Technical Specifications

Source-verified identification, configuration, installation and operating data for 6FX2001-5QN13.

01Product IdentityOfficial Siemens sensor data

ManufacturerSiemens

Order number6FX2001-5QN13

Encoder typeAbsolute single-turn

InterfacePROFINET IO RT / IRT

02Resolution & NetworkPerformance and profile data

Resolution16 bit

Programmable range1 to 8192 steps per revolution

Network ports2 IRT ports; 100 Mbit/s

Encoder profilePNO V4.1, classes 1 to 4

03Electrical & ConnectionSupply and connector data

Supply voltage10 to 30 Vdc

Network connection2 × M12, 4-pin

Power connection1 × M12, 4-pin

Cable directionRadial

04Mechanical & EnvironmentInstallation ratings

Flange / shaftClamping flange; 10 mm shaft × 20 mm

Maximum speed12,000 rpm

ProtectionHousing IP67; shaft input IP64

Operating temperature−40 to +85 °C

Siemens 6FX2001-5QN13 Product Support

Frequently Asked Questions

Product-specific configuration, compatibility, application and ordering guidance for 6FX2001-5QN13.

Which PROFINET roles are supported by 6FX2001-5QN13?

The encoder operates as a PROFINET IO device with RT and IRT communication and the PNO encoder profile.

How is the measuring range configured?

Set the required steps per revolution within the published 1 to 8192 range and validate direction and zero settings in the controller project.

Which connectors are needed for installation?

Provide two compatible 4-pin M12 network connections and one 4-pin M12 power connection with suitable industrial cables.

How should the shaft coupling be aligned?

Mount the clamping flange securely, avoid axial or radial overload and align the 10 mm shaft coupling to the machine axis.

How can intermittent position data be diagnosed?

Check 10–30 Vdc supply stability, M12 connections, PROFINET topology, device name, diagnostics and mechanical coupling.

Which protection limits apply at the encoder?

The housing is rated IP67 while the shaft input is IP64, so sealing and mounting conditions must protect the shaft interface.

Which ordering details prevent a mismatched encoder?

State the full MLFB, flange and shaft geometry, connector orientation, PROFINET profile needs and required accessories.
